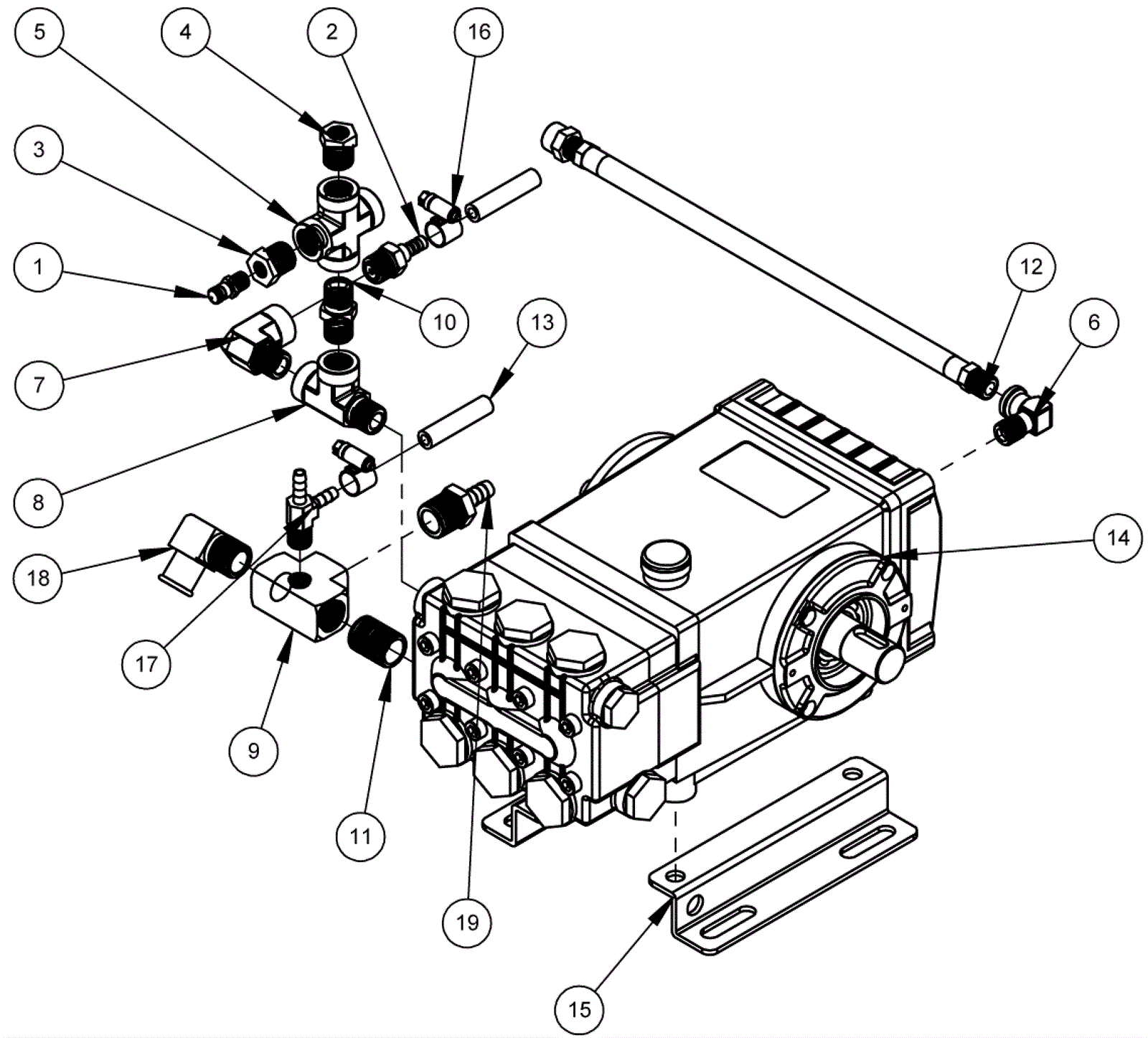

Water pump assembly

#PartDescription ReqNotesAvailability
1 222-7193 Air valve 1
2 222-7194 Easy start valve 1
3 222-7195 Pipe bushing 1
4 222-7196 Bushing 1
5 222-7197 High pressure cross pipe 1
6 222-7198 Pipe elbow 1
7 222-7199 Pipe elbow 1
8 222-7200 Street tee 1
9 222-7201 Pipe tee 1
10 222-7202 Nipple 1
11 222-7203 Brass nipple 1
12 222-7204 Oil drain hose assembly 1
13 222-7205 Water hose 1
14 222-7206 Pump hose mount 1
15 222-7206 Pump hose mount 1
16 222-7175 Hose clamp 1
17 222-7207 Hose barb 1
18 222-7208 Hose barb 1
19 222-7209 Hose barb 1
