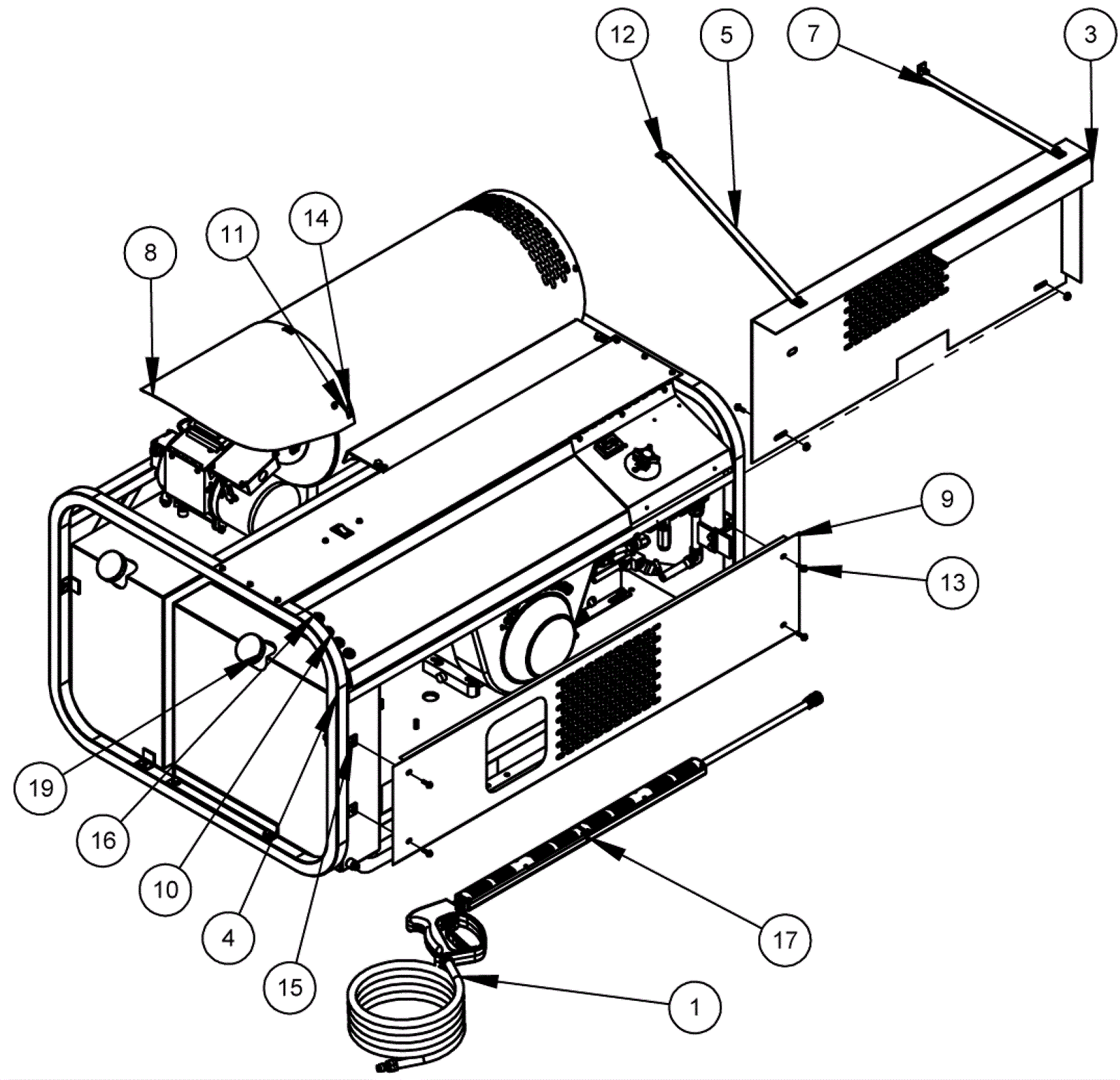

Final Assembly

#PartDescription ReqNotesAvailability
1 222-5521 Hose 3/8 x 50 100R1 assembly 1
3 222-5523 Pulley shield weldment 1
4 222-5524 General assembly 1
5 222-5525 Pulley shield brace 1
7 222-5527 Pulley shield brace 1
8 222-5528 Burner cover 1
9 222-5529 Side panel 1
10 222-5530 Rubber grommet 4
11 222-5531 Machine screw 3
12 222-5532 Self tap screw 2
13 222-5533 Cap screw 6
14 222-5534 Tinnerman nut 3
15 222-5535 Hex nut 8
16 222-5536 Spray tie 1
19 222-5543 Fuel cap 2
N/S 222-5522 Chemical line assembly 1
N/S 222-5526 Float tank cover 1
N/S 222-7175 Hose clamp 1
