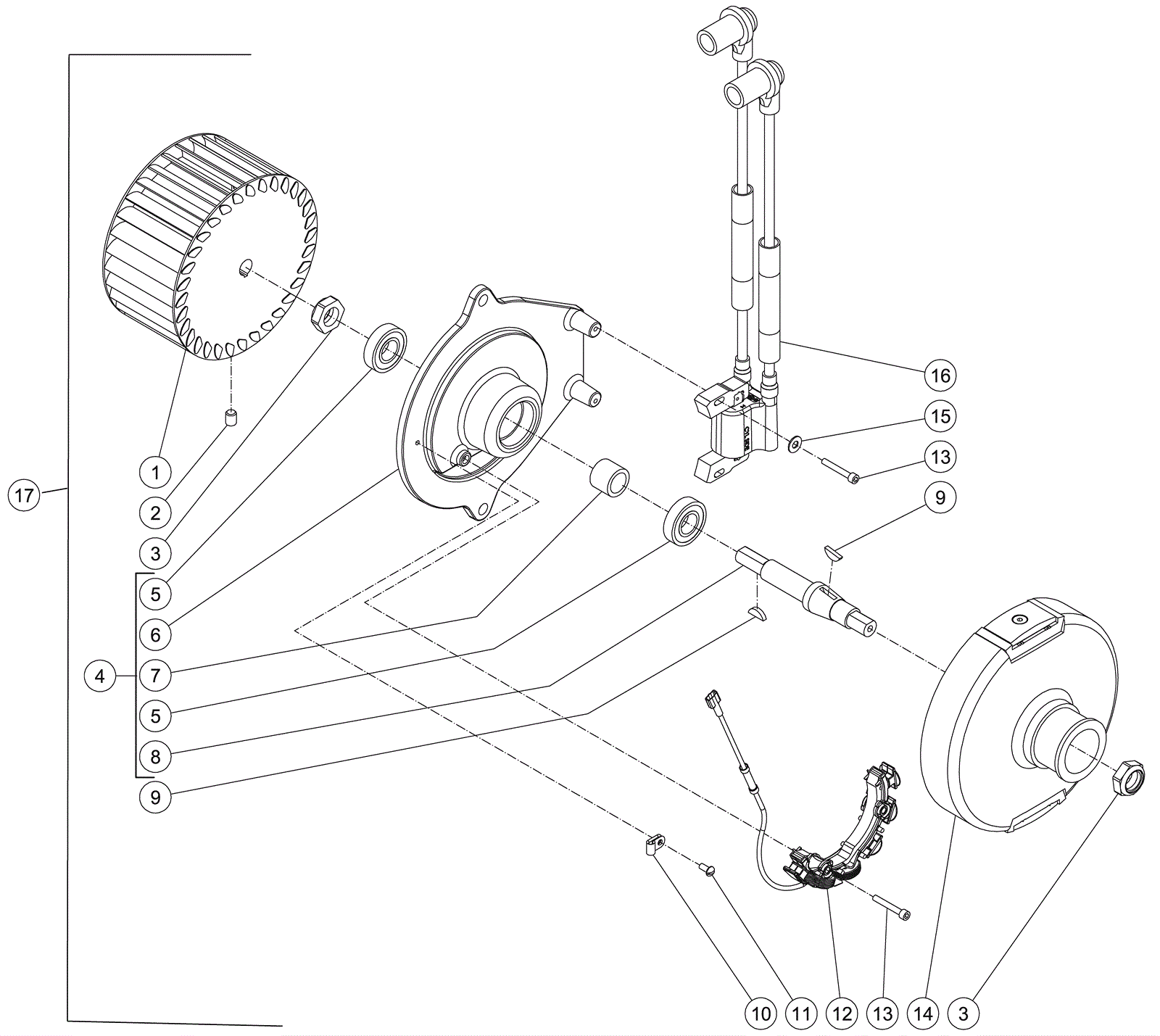

EMF Assembly

#PartDescription ReqNotesAvailability
1 222-0399 Fan blower wheel 1
2 222-0445 Screw 1
3 222-0446 Lock nut 2
4 222-0447 Blower flange assembly 1
5 222-0400 Bearing 2
6 222-0448 Blower flange 1
7 222-0401 Spacer 1
8 222-0449 Blower shaft 1
9 222-0402 Key 2
10 222-0403 Cable clamp 1
11 222-0450 Screw 1
12 222-0451 Stator assembly 1
13 222-0452 Bolt 4
14 222-0404 Magnetic hub 1
15 222-0453 Washer 2
16 222-0405 Ignition coil 1
17 222-0352 EMF assembly 1
