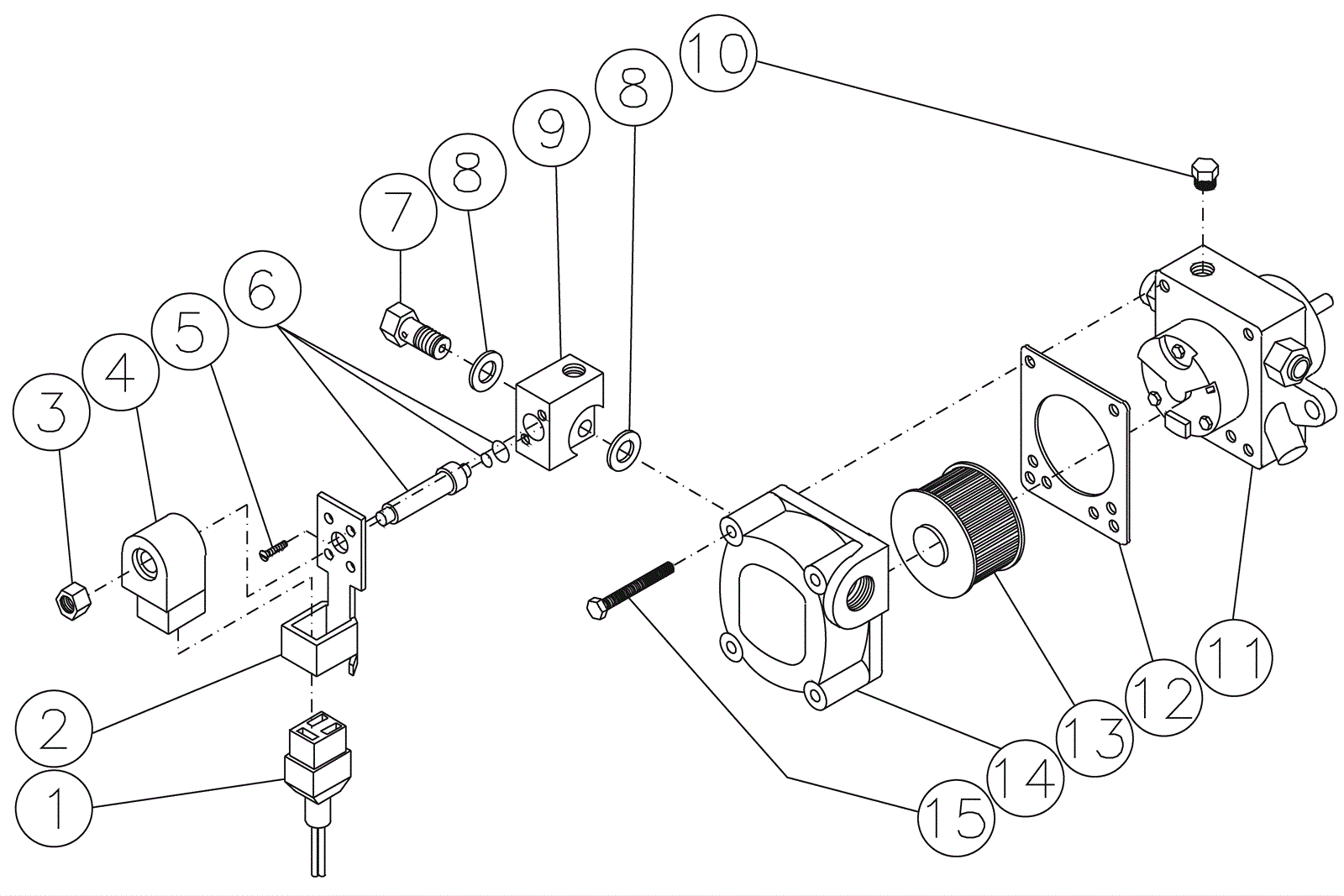

GH-3504-0EGH Fuel Pump and Solenoid Assembly

#PartDescriptionPriceReqNotesAvailability
1 222-0387 Cord connector $19.80 1 usually ships 10-13 days
2 222-0388 Base plate $19.91 1 usually ships 10-13 days
3 222-0389 Nut $2.20 1 usually ships 10-13 days
4 222-0390 Solenoid coil $47.08 1 usually ships 10-13 days
5 N/A Not available Call for price 2 usually ships 3-26 days
6 222-0391 Solenoid piston $25.85 1 usually ships 10-13 days
7 222-0392 Screw (OBSOLETE) $16.50 1 (screw avaliable with 222-0342) usually ships 10-13 days
8 222-0393 Washer $2.20 2 usually ships 10-13 days
9 N/A Not available Call for price 1 usually ships 3-26 days
10 222-0394 Plug $2.20 1 usually ships 10-13 days
11 N/A Not available Call for price 1 usually ships 3-26 days
12 222-0395 Gasket $2.48 1 usually ships 10-13 days
13 222-0396 Fuel pump strainer $8.58 1 usually ships 10-13 days
14 222-0397 Fuel pump cover $17.99 1 usually ships 10-13 days
15 222-0398 Screw $0.99 4 usually ships 10-13 days
