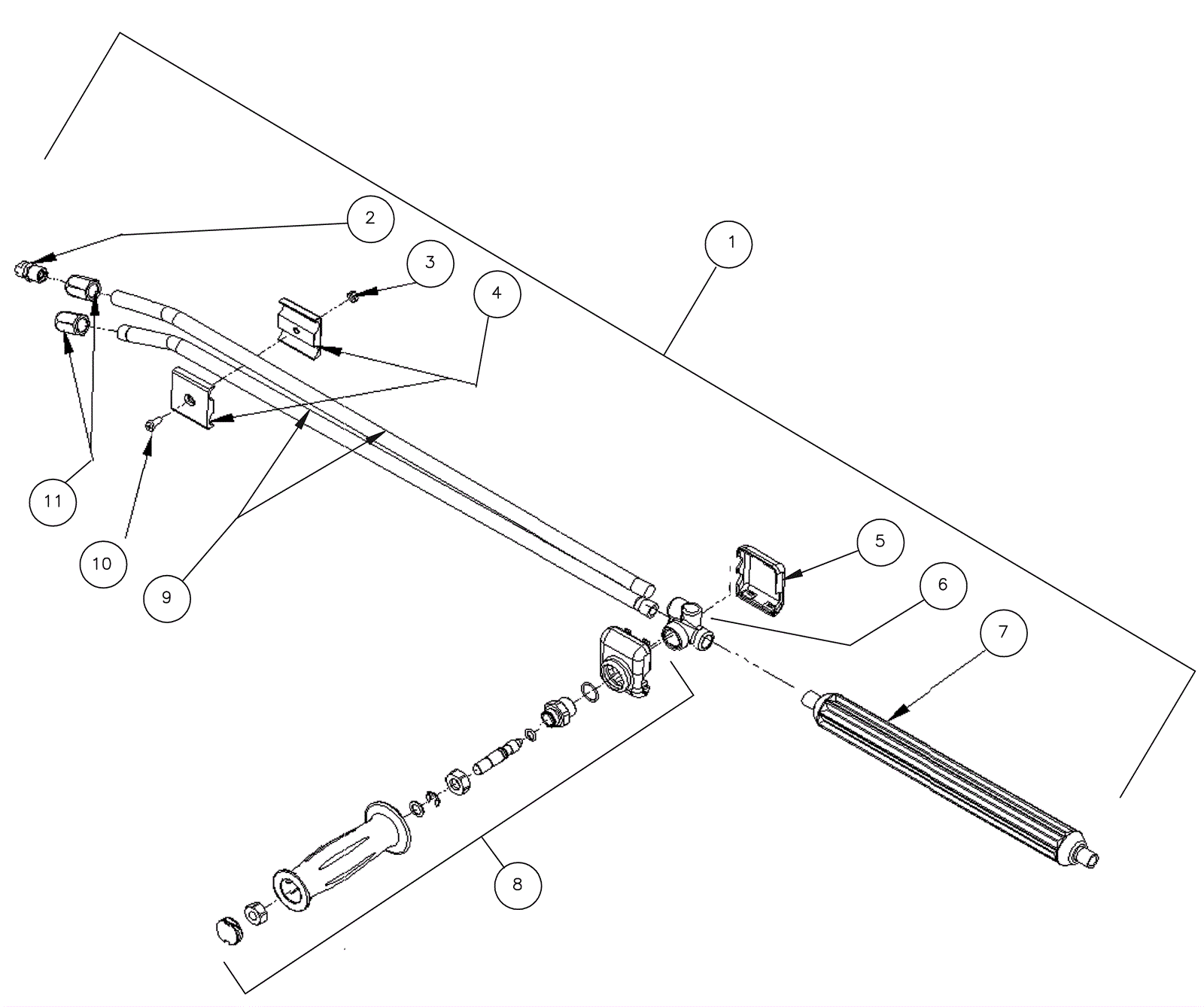

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
222-0150
|
Dual lance assembly |
1 |
(Includes 2-11) |
|
1b |
222-0378
|
48 inch dual lance assembly |
1 |
(Includes 2-11) |
|
2 |
222-0173
|
Nozzle |
1 |
|
|
3 |
222-0221
|
Nut |
1 |
|
|
4 |
222-0379
|
Clamp |
2 |
|
|
5 |
N/A
|
Not available |
1 |
(Lower valve cover) (Not available seperatly) |
|
6 |
N/A
|
Not available |
1 |
(Housing) (Not available seperatly) |
|
7 |
222-0380
|
12 inch insulated lance |
1 |
|
|
8 |
222-0381
|
Handle repair kit |
1 |
|
|
9 |
N/A
|
Not available |
2 |
(Lance) (Not available seperatly) |
|
9b |
N/A
|
Not available |
2 |
(Lance) (Not available seperatly) |
|
10 |
222-0441
|
Screw |
1 |
|
|
11 |
222-0382
|
Nozzle coupler |
2 |
|
|
