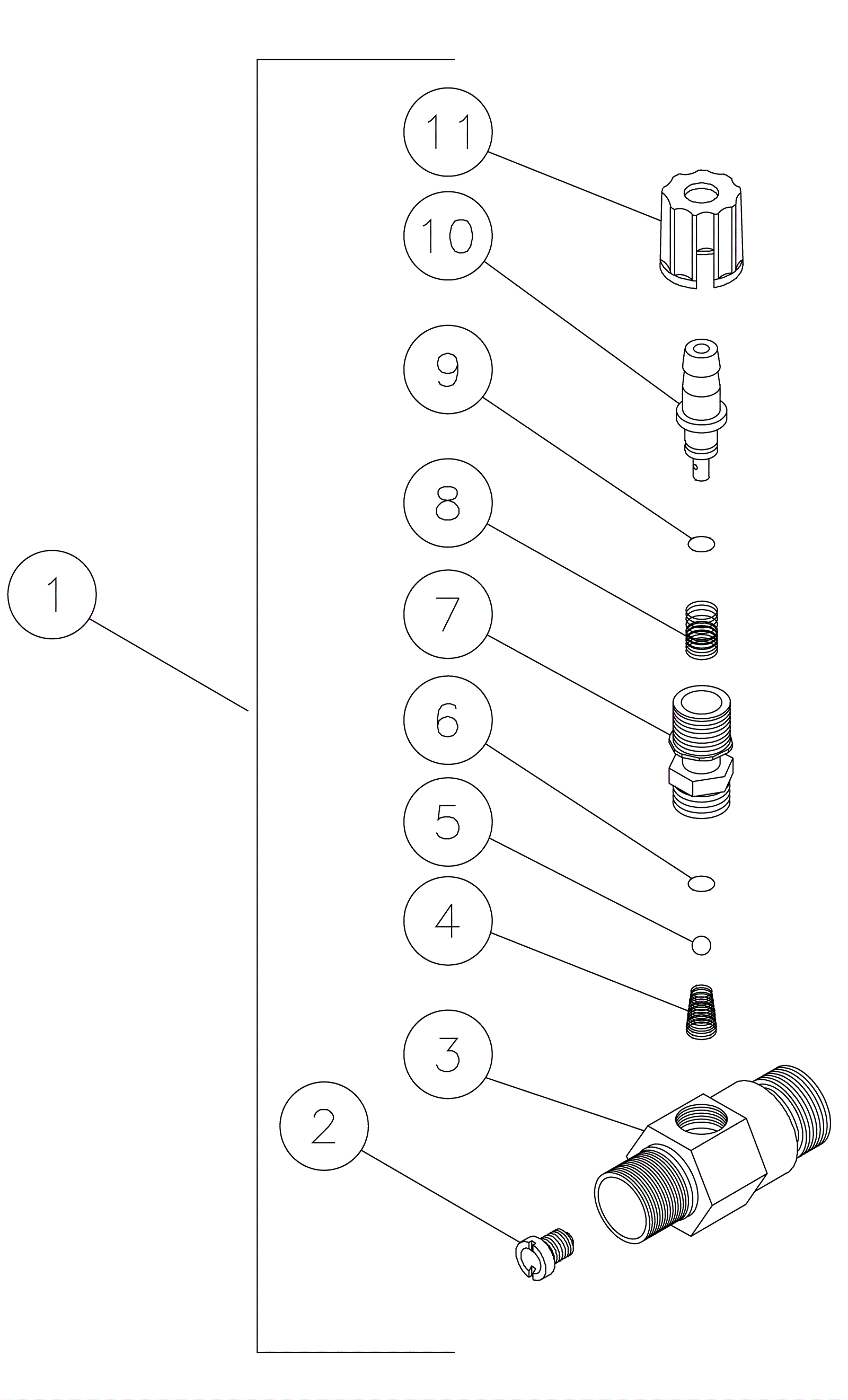

Detergent Injector Assembly

#PartDescription ReqNotesAvailability
1 222-0302 Chemical injector 1
2 222-0325 Orifice 1
3 N/A Not available 1 (Injector body)
4 222-0328 Injector repair kit 1 (Spring)
5 222-0328 Injector repair kit 1 (Ball)
6 222-0328 Injector repair kit 1 (O-ring)
7 222-0326 Brass piston retainer 1
8 222-0417 Spring 1
9 222-0328 Injector repair kit 1 (O-ring)
10 222-0418 Adjustable shutter barb 1
11 222-0327 Adjustment knob 1
KIT1 222-0328 Injector repair kit 1 (Includes 4-6 and 9)
