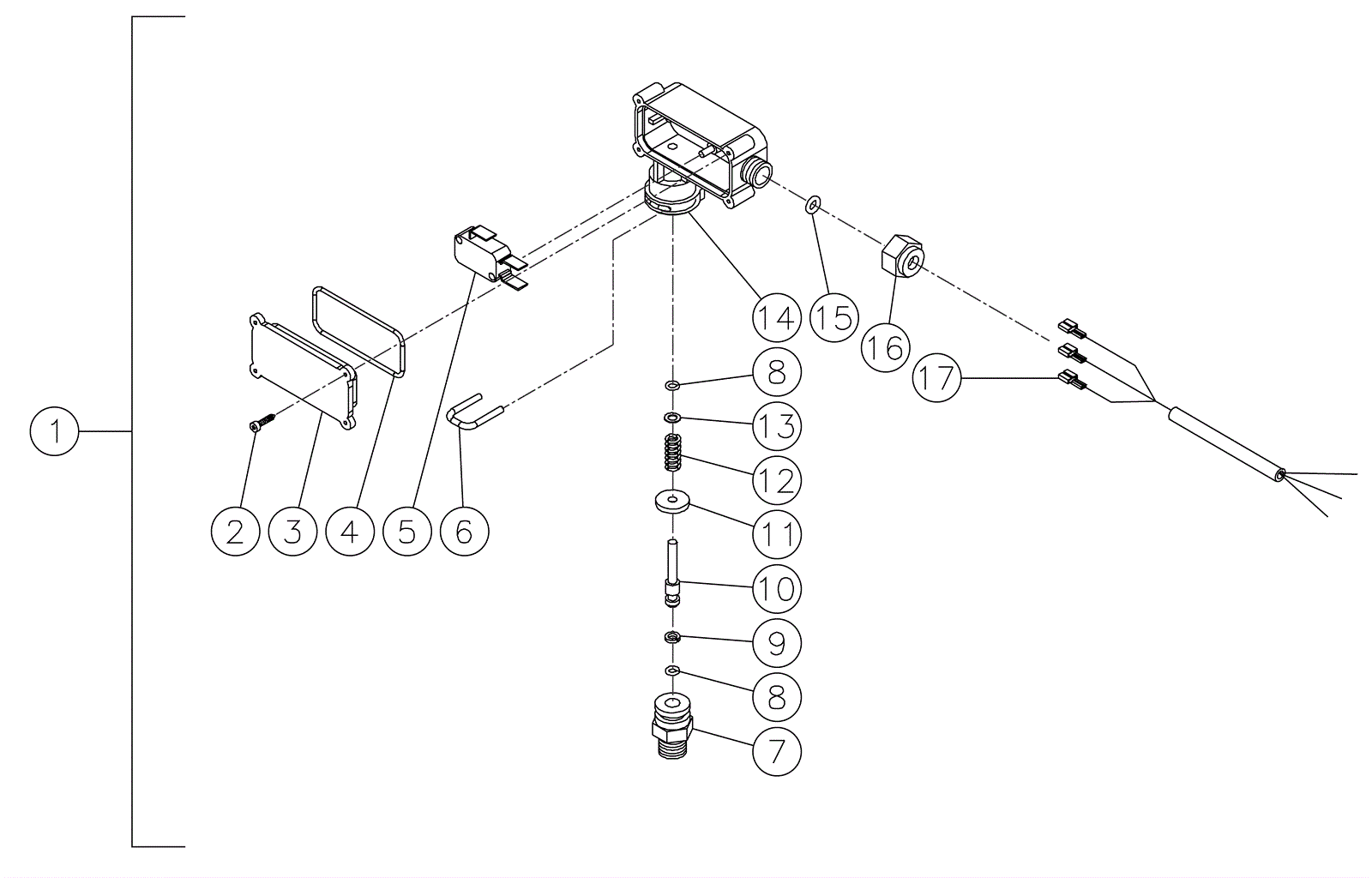

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
222-0237
|
Pressure switch |
1 |
|
|
2 |
N/A
|
Not available |
4 |
(Screw) |
|
3 |
N/A
|
Not available |
1 |
(Cover) |
|
4 |
222-0416
|
O-ring repair kit |
1 |
(O-ring) (Only available in kit) |
|
5 |
N/A
|
Not available |
1 |
(Micro switch) |
|
6 |
N/A
|
Not available |
1 |
(Retainer clip) |
|
7 |
N/A
|
Not available |
1 |
(Body) |
|
8 |
222-0416
|
O-ring repair kit |
2 |
(O-ring) (Only available in kit) |
|
9 |
222-0416
|
O-ring repair kit |
1 |
(Back-up ring) (Only available in kit) |
|
10 |
N/A
|
Not available |
1 |
(Piston) |
|
11 |
N/A
|
Not available |
1 |
(Washer) |
|
12 |
222-0324
|
Spring |
1 |
|
|
13 |
N/A
|
Not available |
1 |
(Washer) |
|
14 |
N/A
|
Not available |
1 |
(Plastic housing) |
|
15 |
222-0416
|
O-ring repair kit |
1 |
(O-ring) (Only available in kit) |
|
16 |
N/A
|
Not available |
1 |
(Nut) |
|
17 |
N/A
|
Not available |
1 |
(Wire assembly) |
|
KIT1 |
222-0416
|
O-ring repair kit |
1 |
(Includes 4, 8, 9 and 15) |
|
