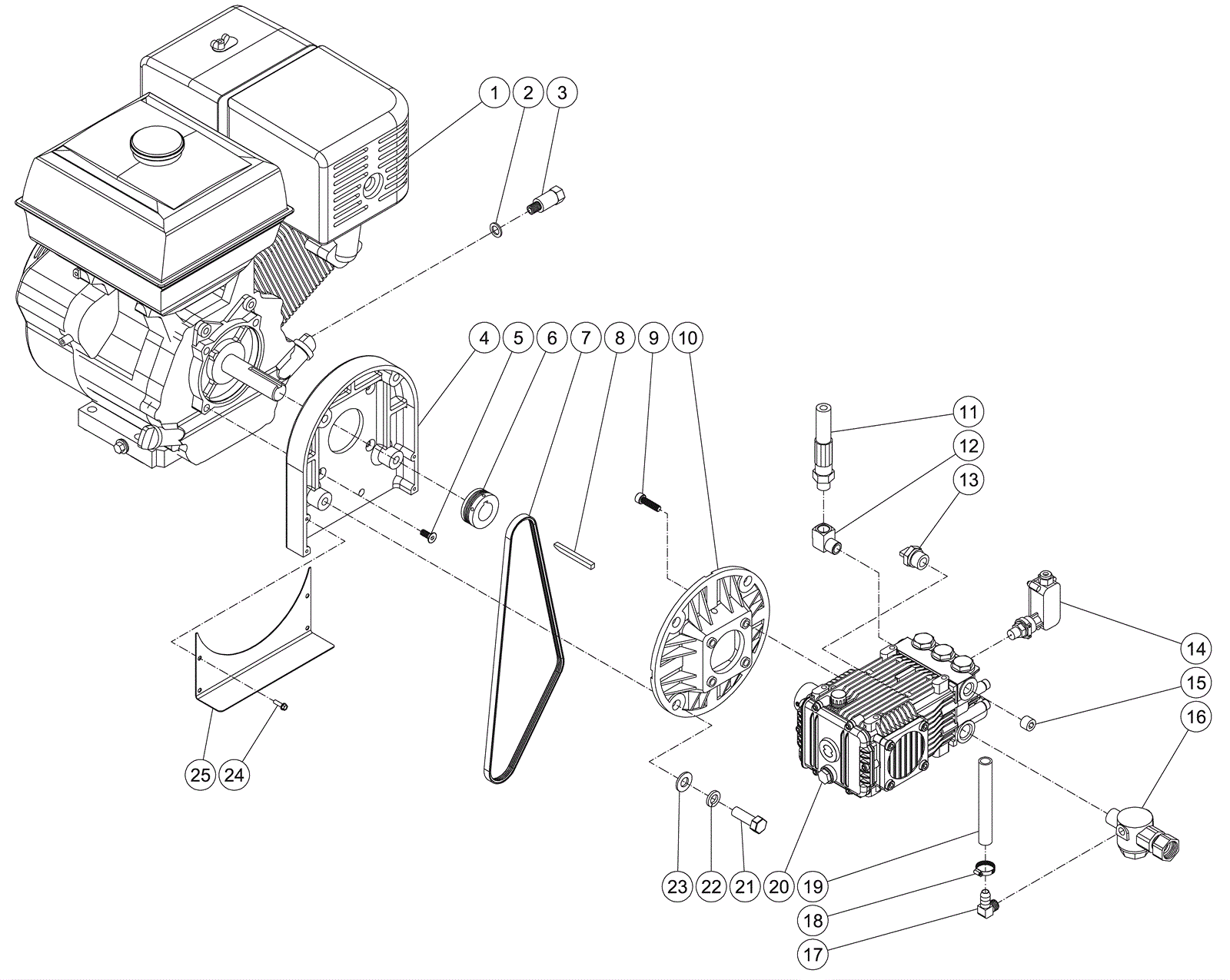

Engine and Pump Assembly

#PartDescription ReqNotesAvailability
1a 222-0227 13 HP Honda recoil engine 1
1d 222-0228 14 HP Robin recoil engine 1
3a 222-0229 Oil drain 1
4 222-0230 Adapter flange 1
6 222-0231 Sheave 1
7 222-0232 34 inch belt 1
8 222-0233 Key 1
10 222-0234 Adapter plate 1
11 222-0235 24 inch high pressure hose 1
12 222-0236 Elbow 1
13 222-0191 Thermal release 1
14 222-0237 Pressure switch 1
15 222-0238 Plug 1
16 222-0239 Filter 1
17 222-0240 Elbow 1
18 222-0241 250PSI hose 1
20 222-0242 Pump 1
23 222-0118 Washer 4
24 222-0154 Bolt 4
