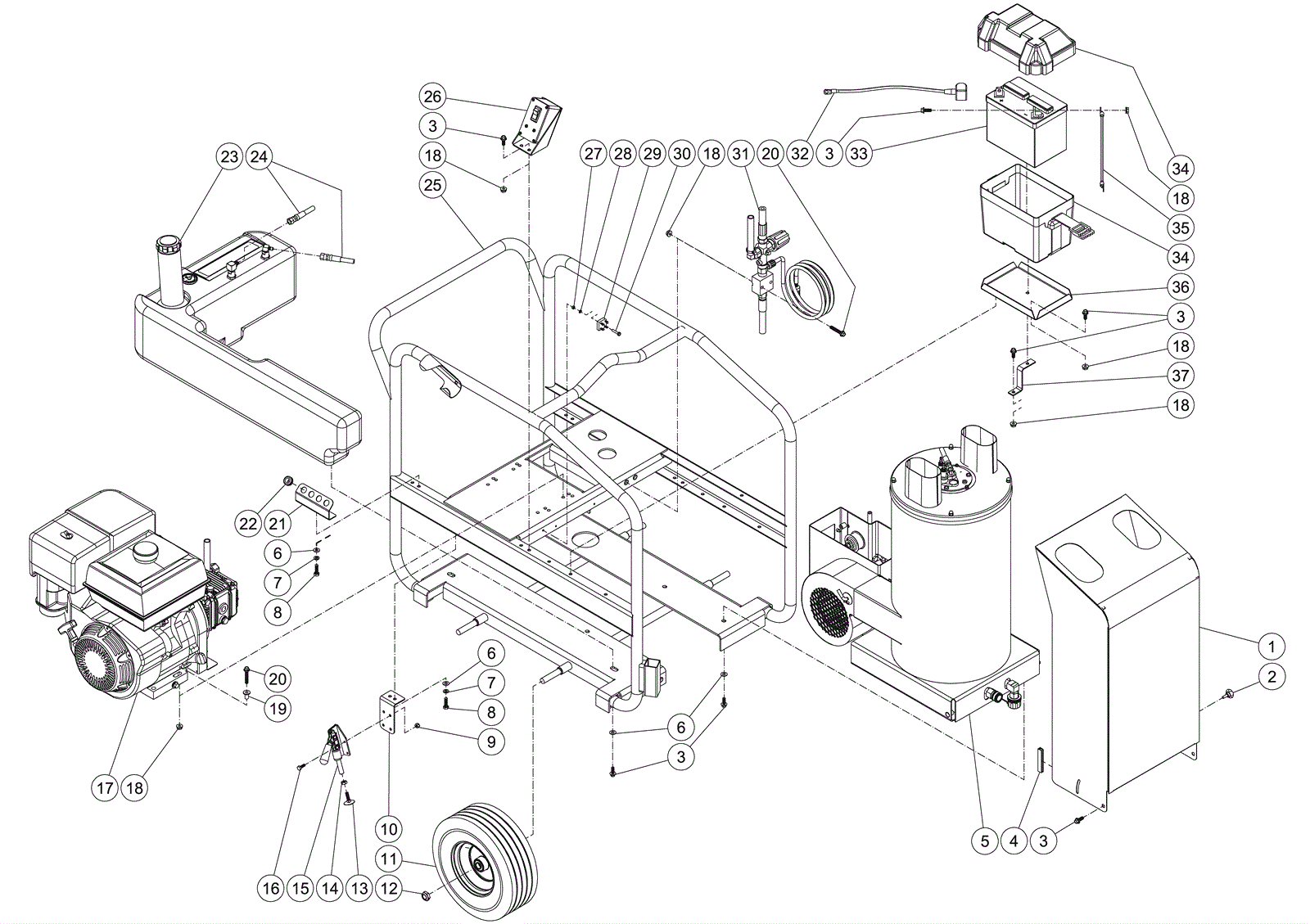

GH-3504-0EGH Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 222-0209 Hood $73.90 1 usually ships 11-29 days
2 222-0197 Knob $2.00 1 usually ships 11-29 days
3 222-0422 Bolt $1.00 17 usually ships 11-29 days
4 222-0198 1 inch edge $2.00 1 usually ships 11-29 days
5 N/A Not available Call for price 1 usually ships 30-32 days
6 222-0210 Washer $1.00 11 usually ships 11-29 days
7 222-0211 Lock washer $1.00 4 usually ships 11-29 days
8 222-0212 Bolt $1.00 4 usually ships 11-29 days
9 222-0124 Locknut $1.00 2 usually ships 1-5 days
10 222-0213 Brake bracket $5.03 1 usually ships 11-29 days
11 222-0199 13 inch tire $86.00 4 usually ships 11-29 days
12 222-0214 Locknut $1.00 4 usually ships 11-29 days
13 222-0215 Bolt $1.00 1 usually ships 11-29 days
14 222-0216 Nut $1.00 1 usually ships 11-29 days
15 222-0200 Toggle clamp $66.00 1 usually ships 11-29 days
16 222-0121 Bolt $1.00 2 usually ships 1-5 days
17 N/A Not available Call for price 1 usually ships 30-32 days
18 222-0217 Nut $1.00 14 usually ships 11-29 days
19 222-0201 Engine shim $2.00 4 usually ships 11-29 days
20 222-0218 Bolt $2.00 6 usually ships 11-29 days
21 222-0219 Nozzle holder $4.95 1 usually ships 11-29 days
22 222-0202 Grommet $0.90 4 usually ships 11-29 days
23 222-0203 Fuel tank assembly $544.70 1 usually ships 11-29 days
24 222-0204 13 inch 300PSI fuel hose (black) $21.00 2 usually ships 11-29 days
25 222-0220 Frame $523.75 1 usually ships 11-29 days
26 N/A Not available Call for price 1 usually ships 30-32 days
27 222-0221 Nut $1.00 1 usually ships 11-29 days
28 222-0222 Star washer $1.00 1 usually ships 11-29 days
29 222-0223 Bridge rectifier $13.31 1 usually ships 11-29 days
30 222-0224 Bolt $1.00 1 usually ships 11-29 days
31 N/A Not available Call for price 1 usually ships 30-32 days
32 222-0205 26 inch jumper cable (red) $33.00 1 usually ships 11-29 days
33 222-0206 Battery $122.90 1 usually ships 11-29 days
34 222-0207 Battery box $21.00 1 usually ships 11-29 days
35 222-0208 16 inch jumper cable (black) $28.00 1 usually ships 11-29 days
36 222-0225 Battery retainer $23.00 1 usually ships 11-29 days
37 222-0226 Bracket $8.70 1 usually ships 11-29 days
