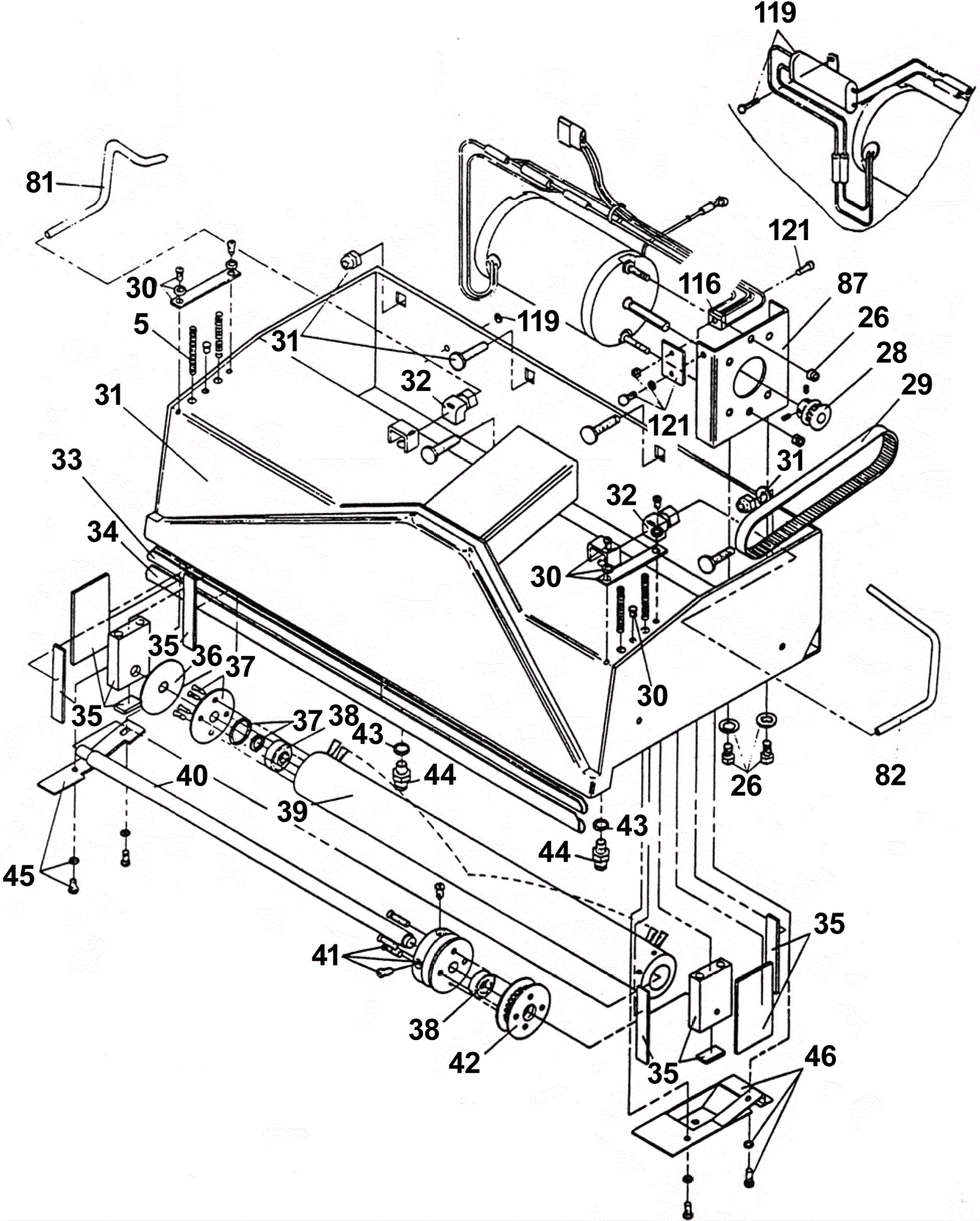

SUPERNOVA 1200 Brush Head Assembly

#PartDescriptionPriceReqNotesAvailability
5a 221-0005 Dome pivot spring $6.05 4 (Polaris) ships same day
5b 221-0499 Slide block spring $1.33 4 (Supernova) usually ships 3-18 days
26a 221-0148 Brush drive motor assembly $333.62 1 (Polaris) (115V) ships same day
26b 221-0029 Brush drive motor assembly $338.43 1 (Supernova) (115V) ships same day
26c 221-0952 220V brush drive motor assembly $319.75 1 (Polaris) (220V) usually ships 3-18 days
26d 221-0953 220V brush drive motor assembly Call for price 1 (Supernova) (220V) usually ships 3-18 days
28a 221-0303 Pulley $21.86 1 (Polaris) usually ships 3-18 days
28b 221-0031 Brush drive motor pulley $32.01 1 (Supernova) usually ships 3-18 days
29a 221-0150 Timing belt $13.84 1 (Polaris) usually ships 3-18 days
29b 221-0032 Timing belt $21.87 1 (Supernova) usually ships 3-18 days
30a 221-0151 Spring cover plate assembly $51.13 1 (Polaris) usually ships 1-5 days
30b 221-0679 Spring (OBSOLETE) Call for price 1 (Supernova) usually ships 3-18 days
31a 221-0671 Brush chamber assembly (OBSOLETE) Call for price 1 (Polaris) usually ships 3-18 days
31b 221-0680 Brush assembly (OBSOLETE) Call for price 1 (Supernova) usually ships 3-18 days
32 221-0035 90 degree elbow1/8 x 1/4 $6.05 2 usually ships 1-5 days
33a 221-0672 Bracket $19.31 2 (Polaris) ships same day
33b 221-0307 Rear glide $18.10 2 (Supernova) usually ships 3-18 days
34a 221-0673 Bracket $14.17 2 (Polaris) usually ships 3-18 days
34b 221-0308 Front glide $26.84 2 (Supernova) usually ships 3-18 days
35 221-0158 Slide block assembly $120.12 2 usually ships 3-18 days
36 221-0159 Washer $3.71 1 usually ships 3-18 days
37 221-0160 String guard assembly $23.32 2 usually ships 3-18 days
38 221-0161 Brush bearing $25.86 2 usually ships 3-18 days
39 221-0309 Brush roller $436.27 1 usually ships 3-18 days
40 221-0306 Brush shaft $31.24 1 usually ships 3-18 days
41 221-0166 Rotary brush slinger assembly $68.55 1 usually ships 3-18 days
42 221-0167 Rotary brush pulley $65.89 1 usually ships 3-18 days
43 221-0038 Washer 7/16 x 5/8 3/32 thick $1.09 4 usually ships 3-18 days
44a 221-0675 Spray tip $7.85 4 (Polaris) usually ships 3-18 days
44b 221-0039 Spray tip $7.93 4 (Supernova) usually ships 3-18 days
45a 221-0170 Open end cover plate assembly $40.12 1 (Polaris) usually ships 3-18 days
45b 221-0468 Open-end cover plate assembly $41.99 1 (Supernova) usually ships 3-18 days
46a 221-0171 Pulley end cover plate assembly $100.62 1 (Polaris) ships same day
46b 221-0469 Cover plate assembly $103.57 1 (Supernova) usually ships 3-18 days
81a 221-0676 Tube $54.62 1 (Polaris) usually ships 3-18 days
81b 221-0483 Left hand tip $55.45 1 (Supernova) usually ships 3-18 days
82a 221-0677 Tube $55.77 1 (Polaris) usually ships 3-18 days
82b 221-0484 Right hand tip $56.40 1 (Supernova) usually ships 3-18 days
87a 221-0172 Brush drive motor bracket $26.49 1 (Polaris) usually ships 1-5 days
87b 221-0485 Brush motor bracket $15.68 1 (Supernova) usually ships 3-18 days
121a 221-0678 Rectifier (OBSOLETE) Call for price 1 (Polaris) usually ships 3-18 days
121b 221-0427 Rectifier assembly $29.08 1 (Supernova) usually ships 3-18 days
N/S 221-0030 Ground wire assembly (OBSOLETE) $3.51 1 usually ships 1-5 days
N/S 221-0954 115V rectifier harness Call for price 1 (Polaris) (115V) usually ships 3-18 days
N/S 221-0043 Rectifier harness $2.59 1 (Supernova) (115V) usually ships 3-18 days
N/S 221-0133 Handle jumper wire connector assembly (OBSOLETE) $25.77 1 (Polaris) (250V) usually ships 1-5 days
N/S 221-0955 250V rectifier harness Call for price 1 (Supernova) (250V) usually ships 3-18 days
N/S 221-0437 Rectifier $13.04 1 (Polaris) usually ships 3-18 days
N/S 221-0497 Rectifier $7.90 1 (Supernova) usually ships 3-18 days
