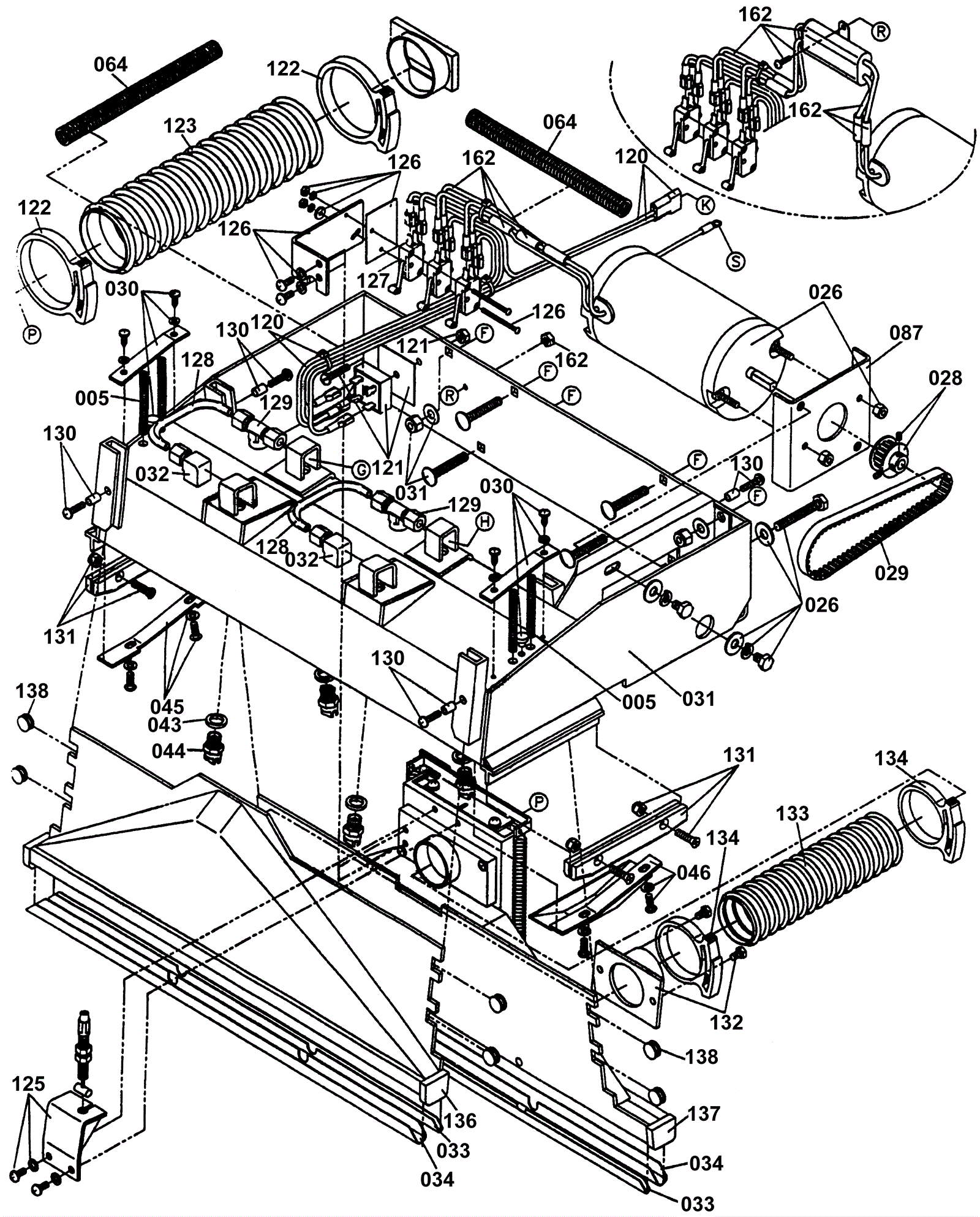

SUPERNOVA 700 Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
005 221-0028 Slide block spring $1.53 4 usually ships 1-5 days
026 221-0029 Brush drive motor assembly $338.43 1 ships same day
028 221-0031 Brush drive motor pulley $32.01 1 usually ships 17-23 days
029 221-0032 Timing belt $21.87 1 usually ships 17-23 days
030 221-0033 Spring cover plate assembly $1.57 1 usually ships 17-23 days
031 221-0034 Brush chamber assembly (OBSOLETE) $632.23 1 usually ships 1-5 days
032 221-0035 90 degree elbow1/8 x 1/4 $6.05 1 usually ships 1-5 days
033 221-0036 Back glide $6.12 1 usually ships 1-5 days
034 221-0037 Front glide $6.69 1 usually ships 1-5 days
043 221-0038 Washer 7/16 x 5/8 3/32 thick $1.09 1 usually ships 17-23 days
044 221-0039 Spray tip $7.93 2 usually ships 17-23 days
045 221-0040 Open end cover plate assembly $15.62 usually ships 1-5 days
046 221-0041 Pulley end cover plate assembly $77.24 1 usually ships 1-5 days
064 221-0089 Corrugated loom $1.45 2 usually ships 1-5 days
087 221-0042 Brush drive motor bracket $40.66 1 usually ships 1-5 days
120 221-0043 Rectifier harness $2.59 1 usually ships 17-23 days
121 221-0044 Mounting board $3.37 1 usually ships 1-5 days
122 221-0045 Clamp $2.17 2 usually ships 17-23 days
123 221-0046 2 inch air valve hose assembly $12.36 1 usually ships 17-23 days
125 221-0047 Front bracket pull cable assembly $49.78 1 usually ships 1-5 days
126 221-0048 Switch bracket assembly $50.49 1 usually ships 1-5 days
127 221-0049 Motor reverse switch $11.06 3 usually ships 17-23 days
128 221-0050 Tip connector tube $54.10 2 usually ships 1-5 days
129 221-0051 Female branch tee $25.49 2 usually ships 1-5 days
130a 221-0425 Spacer $3.40 1 usually ships 1-5 days
130b 221-0426 Socket $3.40 1 usually ships 1-5 days
131 221-0053 Side glide $116.08 1 usually ships 17-23 days
132 221-0054 Front head adapter $86.79 1 usually ships 17-23 days
133 221-0055 Front head hose assembly 1 1/2 (sold by the foot) $23.94 1 usually ships 17-23 days
134 221-0056 Clamp $2.94 2 usually ships 1-5 days
136 221-0057 Front floating head $302.94 1 usually ships 1-5 days
137 221-0058 Rear floating head assembly $302.94 1 usually ships 1-5 days
138 221-0059 Glide button $7.33 8 usually ships 17-23 days
162 221-0061 Harness switches $1.09 1 usually ships 1-5 days
N/S 221-0030 Ground wire assembly (OBSOLETE) $3.51 1 usually ships 1-5 days
N/S 221-0060 Cable $106.46 1 usually ships 17-23 days
