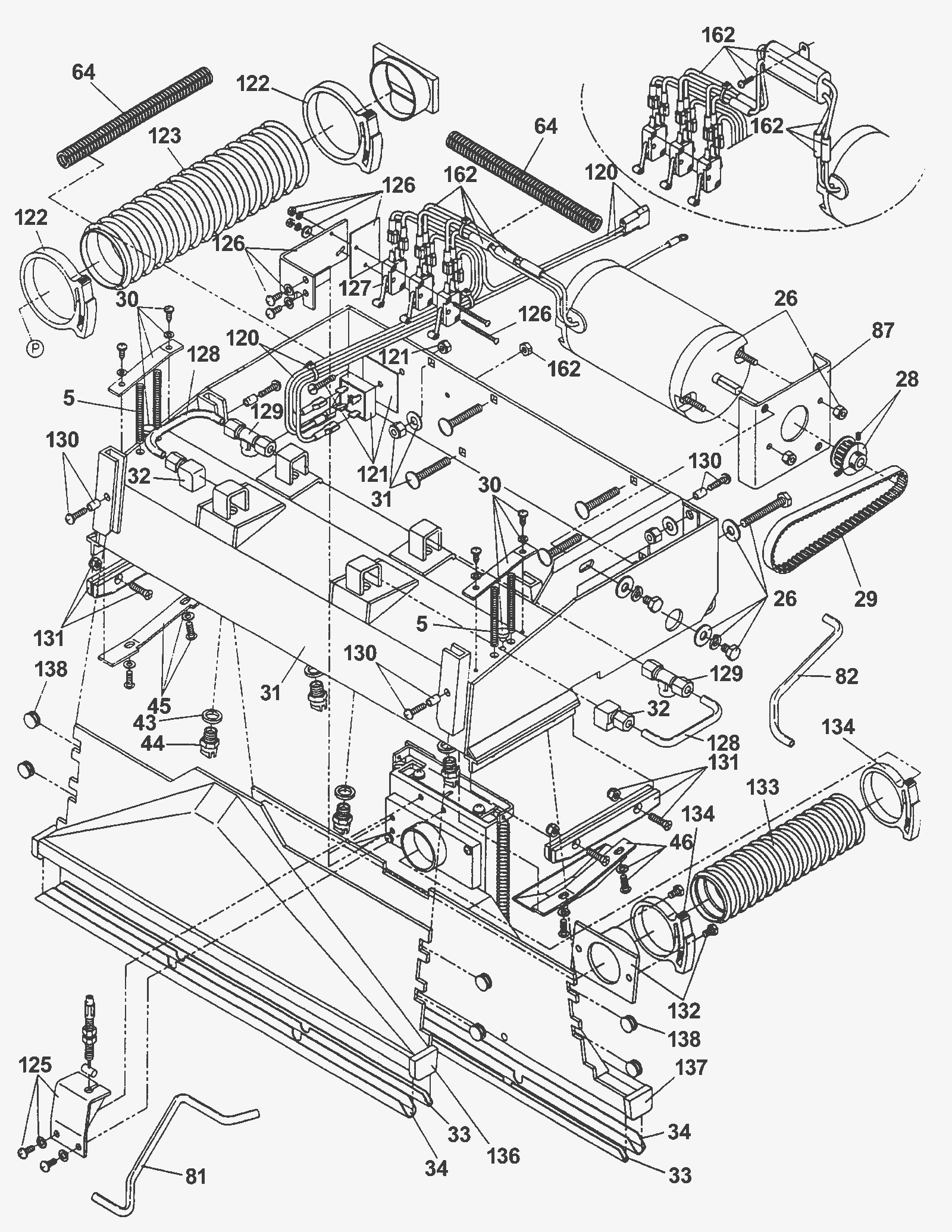

| # | Part | Description |
Req | Notes | Availability |
|---|
5a |
221-0005
|
Dome pivot spring |
4 |
(Polaris) |
|
5b |
221-0499
|
Slide block spring |
4 |
(Supernova) |
|
26a |
221-0148
|
Brush drive motor assembly |
1 |
(Polaris) (115V) |
|
26b |
221-0029
|
Brush drive motor assembly |
1 |
(Supernova) (115V) |
|
26c |
221-0952
|
220V brush drive motor assembly |
1 |
(Polaris) (220V) |
|
26d |
221-0953
|
220V brush drive motor assembly |
1 |
(Supernova) (220V) |
|
28a |
221-0303
|
Pulley |
1 |
(Polaris) |
|
28b |
221-0031
|
Brush drive motor pulley |
1 |
(Supernova) |
|
29a |
221-0150
|
Timing belt |
1 |
(Polaris) |
|
29b |
221-0032
|
Timing belt |
1 |
(Supernova) |
|
30a |
221-0151
|
Spring cover plate assembly |
1 |
(Polaris) |
|
30b |
221-0679
|
Spring (OBSOLETE) |
1 |
(Supernova) |
|
31a |
221-0671
|
Brush chamber assembly (OBSOLETE) |
1 |
(Polaris) |
|
31b |
221-0680
|
Brush assembly (OBSOLETE) |
1 |
(Supernova) |
|
32 |
221-0035
|
90 degree elbow1/8 x 1/4 |
2 |
|
|
33a |
221-0672
|
Bracket |
2 |
(Polaris) |
|
33b |
221-0307
|
Rear glide |
2 |
(Supernova) |
|
34a |
221-0673
|
Bracket |
2 |
(Polaris) |
|
34b |
221-0308
|
Front glide |
2 |
(Supernova) |
|
43 |
221-0038
|
Washer 7/16 x 5/8 3/32 thick |
4 |
|
|
44a |
221-0675
|
Spray tip |
4 |
(Polaris) |
|
44b |
221-0039
|
Spray tip |
4 |
(Supernova) |
|
45a |
221-0170
|
Open end cover plate assembly |
1 |
(Polaris) |
|
45b |
221-0468
|
Open-end cover plate assembly |
1 |
(Supernova) |
|
46a |
221-0171
|
Pulley end cover plate assembly |
1 |
(Polaris) |
|
46b |
221-0469
|
Cover plate assembly |
1 |
(Supernova) |
|
64 |
221-0089
|
Corrugated loom |
1 |
|
|
81a |
221-0676
|
Tube |
1 |
(Polaris) |
|
81b |
221-0483
|
Left hand tip |
1 |
(Supernova) |
|
82a |
221-0677
|
Tube |
1 |
(Polaris) |
|
82b |
221-0484
|
Right hand tip |
1 |
(Supernova) |
|
87a |
221-0172
|
Brush drive motor bracket |
1 |
(Polaris) |
|
87b |
221-0485
|
Brush motor bracket |
1 |
(Supernova) |
|
120a |
221-0954
|
115V rectifier harness |
1 |
(Polaris) (250V) |
|
120b |
221-0043
|
Rectifier harness |
1 |
(Supernova) (115V) |
|
120c |
221-0133
|
Handle jumper wire connector assembly (OBSOLETE) |
1 |
(Polaris) (250V) |
|
120d |
221-0955
|
250V rectifier harness |
1 |
(Supernova) (250V) |
|
121a |
221-0678
|
Rectifier (OBSOLETE) |
1 |
(Polaris) |
|
121b |
221-0427
|
Rectifier assembly |
1 |
(Supernova) |
|
122 |
221-0045
|
Clamp |
2 |
(Supernova) |
|
123 |
221-0046
|
2 inch air valve hose assembly |
1 |
(Supernova) |
|
125 |
221-0682
|
Bracket (OBSOLETE) |
1 |
(Supernova) |
|
126 |
221-0494
|
Switch bracket assembly |
1 |
(Supernova) |
|
127 |
221-0049
|
Motor reverse switch |
3 |
(Supernova) |
|
128 |
221-0050
|
Tip connector tube |
2 |
(Supernova) |
|
129 |
221-0051
|
Female branch tee |
2 |
(Supernova) |
|
130 |
221-0052
|
Floating head retaining pin assembly |
1 |
(Supernova) |
|
131 |
221-0053
|
Side glide |
2 |
(Supernova) |
|
132 |
221-0054
|
Front head adapter |
1 |
(Supernova) |
|
133 |
221-0055
|
Front head hose assembly 1 1/2 (sold by the foot) |
1 |
(Supernova) |
|
134 |
221-0056
|
Clamp |
2 |
(Supernova) |
|
136 |
221-0495
|
Front floating head |
1 |
(Supernova) |
|
137 |
221-0683
|
Suction cover assembly |
1 |
(Supernova) |
|
138 |
221-0059
|
Glide button |
8 |
(Supernova) |
|
162 |
221-0061
|
Harness switches |
1 |
(Supernova) |
|
N/S |
221-0030
|
Ground wire assembly (OBSOLETE) |
1 |
|
|
N/S |
221-0060
|
Cable |
1 |
(Supernova) |
|
N/S |
221-0437
|
Rectifier |
1 |
(Polaris) |
|
N/S |
221-0497
|
Rectifier |
1 |
(Supernova) |
|
