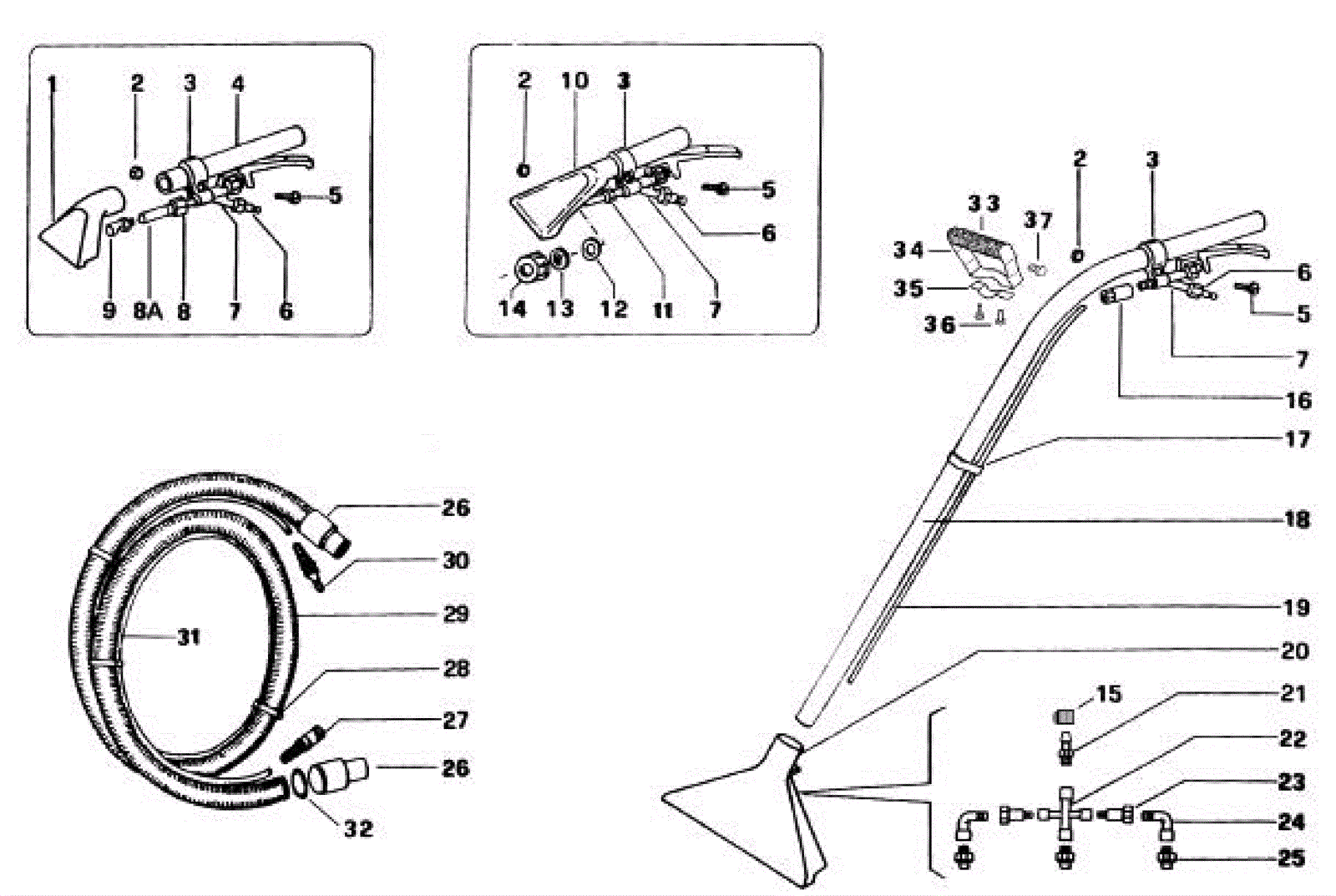

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
220-4049
|
Nut |
3 |
|
|
3 |
220-4050
|
Valve lock |
3 |
|
|
5 |
220-4051
|
Screw |
3 |
|
|
6a |
220-4052
|
Male disconnect |
3 |
|
|
6b |
220-0035
|
Male fitting |
3 |
|
|
7 |
220-4053
|
Solution valve |
1 |
|
|
15 |
220-0098
|
Tie |
1 |
|
|
16 |
220-4054
|
Coupling |
1 |
|
|
17 |
220-4055
|
Tie |
1 |
|
|
18 |
220-4056
|
Motor cover |
1 |
|
|
19 |
220-4057
|
Braided solution hose |
1 |
|
|
20 |
220-4058
|
Aluminum head |
1 |
|
|
21 |
220-0099
|
Hose nipple |
1 |
|
|
22 |
220-0100
|
Cross |
1 |
|
|
23 |
220-0101
|
Extension |
1 |
|
|
24 |
220-0102
|
Elbow |
1 |
|
|
25 |
220-0103
|
Nozzle |
1 |
|
|
26 |
220-4059
|
Hose cuff |
1 |
|
|
27a |
220-0049
|
Female coupling |
1 |
|
|
27b |
220-0049
|
Female coupling |
1 |
|
|
27c |
220-4054
|
Coupling |
1 |
|
|
28 |
220-4061
|
Tie |
1 |
|
|
29 |
220-4072
|
20 foot vacuum hose |
1 |
|
|
30a |
220-4062
|
Male quick disconnect |
1 |
|
|
30b |
220-4063
|
Brass male quick disconnect |
1 |
|
|
30c |
220-4054
|
Coupling |
1 |
|
|
31 |
220-4065
|
Solution tube |
1 |
|
|
32 |
220-4066
|
Ring |
1 |
|
|
33a |
N/A
|
Not available |
1 |
(Handle) |
|
33b |
220-4067
|
Textured hand grip |
1 |
|
|
34 |
220-4068
|
Upper handle |
1 |
|
|
35 |
220-4069
|
Lower handle |
1 |
|
|
36 |
220-4070
|
Screw |
1 |
|
|
37 |
220-4071
|
Screw |
1 |
|
|
