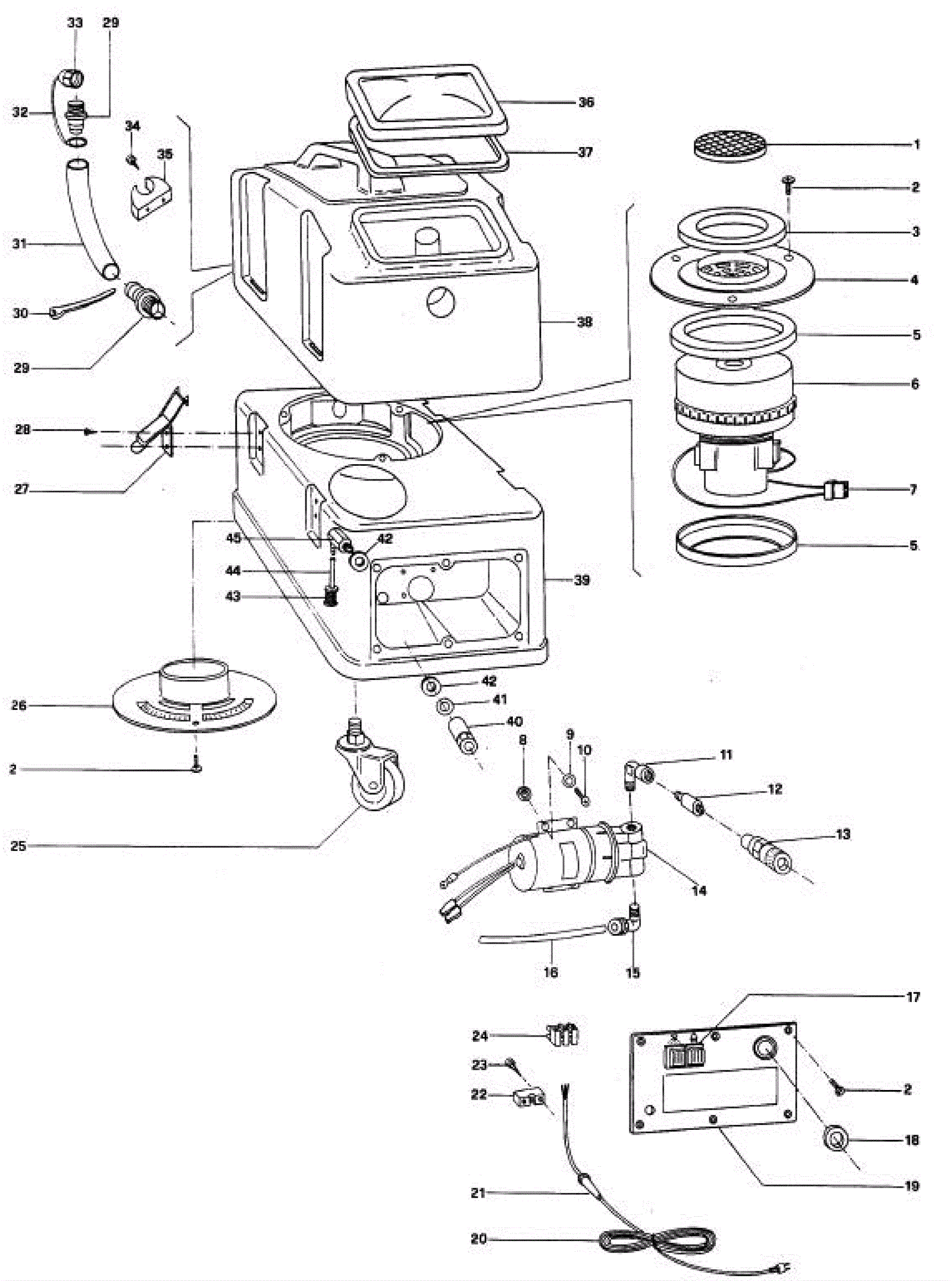

TEMPEST TP8X Main Assembly

#PartDescriptionPriceReqNotesAvailability
1 220-4008 Filter $3.28 1 usually ships 16-24 days
2 220-4009 Screw $0.99 4 usually ships 16-24 days
3 220-4010 Gasket $13.21 1 usually ships 16-24 days
4 220-4011 Upper flange $38.40 1 usually ships 16-24 days
5a 220-4012 10mm motor gasket $8.01 1 usually ships 16-24 days
5b 220-4013 5mm motor gasket $6.41 1 usually ships 16-24 days
6 220-4014 110V motor $426.59 1 usually ships 16-24 days
7 220-4015 Connector $2.68 1 usually ships 16-24 days
8 220-4016 Vibration dampening $1.87 2 usually ships 16-24 days
9 220-4017 Washer $1.08 2 usually ships 16-24 days
10 220-4018 Screw $1.11 2 usually ships 16-24 days
11 220-4019 Elbow $11.37 1 usually ships 16-24 days
12 220-4020 Extension $9.50 1 usually ships 16-24 days
13a 220-0049 Female coupling $66.10 1 usually ships 16-24 days
13b 220-4021 O-ring $1.83 1 usually ships 16-24 days
14 220-0321 Solution pump $1,146.32 1 usually ships 16-24 days
15 220-4022 Elbow $8.21 1 usually ships 16-24 days
16 220-4023 Rislan pipe $2.44 1 usually ships 16-24 days
17 193-0120 Switch $14.45 1 usually ships 16-24 days
18 220-4024 Bush $2.13 1 usually ships 16-24 days
19a 220-4025 Panel $27.29 1 usually ships 16-24 days
19b 220-4026 Panel label $8.92 1 usually ships 16-24 days
20 220-4027 Power cord $193.95 1 usually ships 16-24 days
21 220-4028 Fairlead $1.43 1 usually ships 16-24 days
22 220-4029 Cable lock $0.99 1 usually ships 16-24 days
23 220-4030 Screw $0.99 1 usually ships 16-24 days
24 220-4031 Connecting terminal $5.50 1 usually ships 16-24 days
25 220-4032 Front caster $41.46 1 usually ships 16-24 days
26 220-4033 Lower flange $17.61 1 usually ships 16-24 days
28 220-4035 Screw $1.43 1 usually ships 16-24 days
29 220-4036 Hose nipple $14.80 1 usually ships 16-24 days
30 220-4037 Tie $5.50 1 usually ships 16-24 days
31 220-4038 Drain hose $34.01 1 usually ships 16-24 days
32 220-4039 Tie $4.27 1 usually ships 16-24 days
33 220-4040 Cap $8.92 1 usually ships 16-24 days
34 220-4041 Screw $0.99 1 usually ships 16-24 days
35 220-4042 Clip $11.37 1 usually ships 16-24 days
36 220-4043 Cover $33.15 1 usually ships 16-24 days
37 220-4044 Gasket $14.64 1 usually ships 16-24 days
38 220-4045 Upper tank (blue) $490.83 1 usually ships 16-24 days
39 220-4046 Lower tank (blue) $568.36 1 usually ships 16-24 days
40 220-4047 Female quick disconnect $16.40 1 usually ships 16-24 days
41 220-4048 Metal washer $2.01 1 usually ships 16-24 days
42 220-0400 Neoprene washer $1.68 1 usually ships 16-24 days
43 220-0401 Filter $5.12 1 usually ships 16-24 days
44 220-0402 Pipe $2.70 1 usually ships 16-24 days
45 220-0403 Connector $15.50 1 usually ships 16-24 days
