MINI

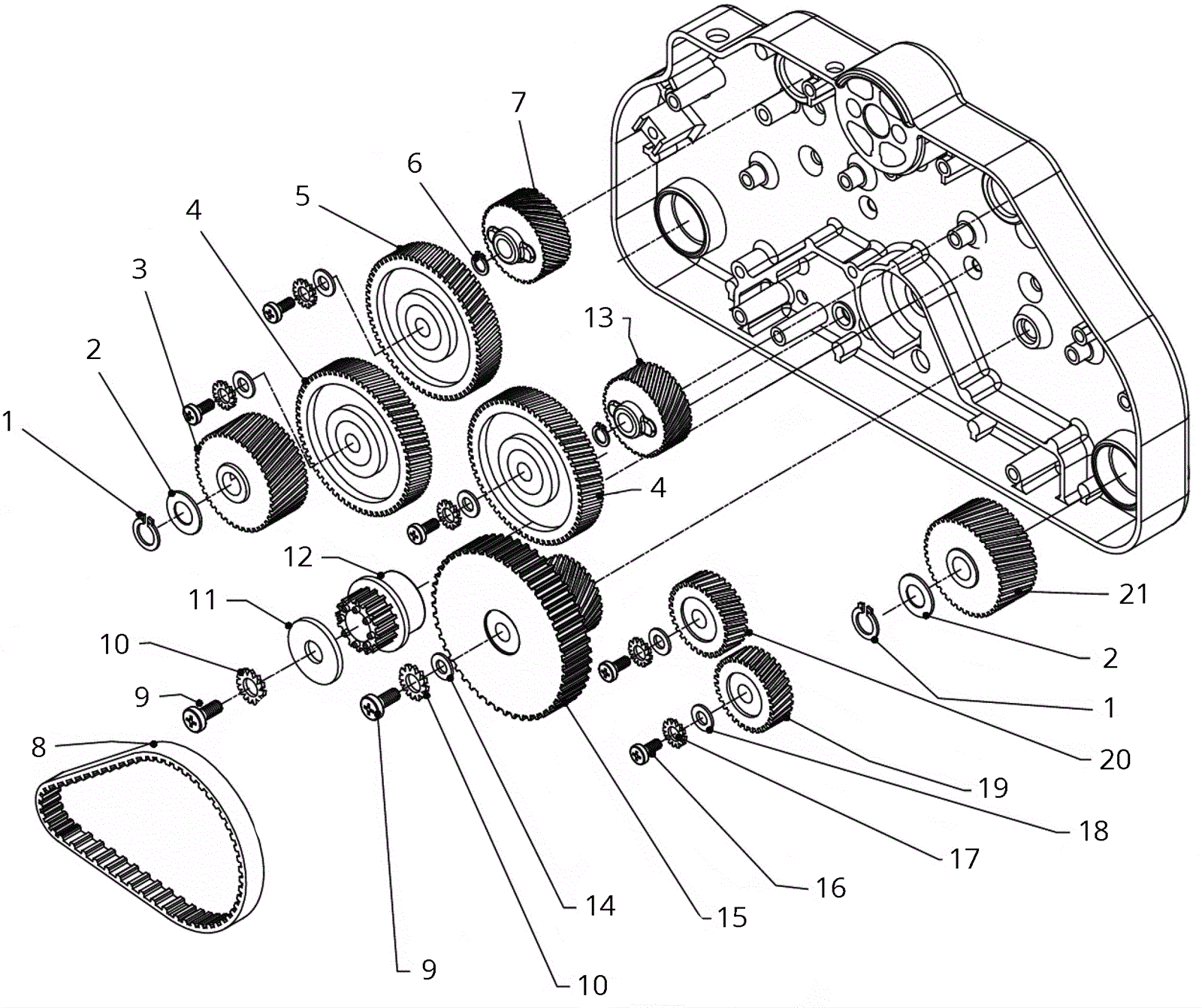

Transmission Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
220-1055
Retaining ring
Call for price
2
usually ships 7-21 days
2
220-1056
Washer
$1.32
2
usually ships 7-21 days
3
220-1057
Right hand brush gear
$86.81
1
usually ships 7-21 days
4
220-1058
Left hand gear
$84.48
2
usually ships 7-21 days
5
220-1059
Right hand gear
$84.48
2
usually ships 7-21 days
6
220-1060
Retaining ring
Call for price
2
usually ships 7-21 days
7
220-1061
Left hand cylinder gear
$75.25
1
usually ships 7-21 days
8
220-1062
Belt
$101.15
1
usually ships 7-21 days
9
220-1063
Screw M5 x 12
Call for price
2
usually ships 7-21 days
10
220-1064
D5 washer
$1.87
2
usually ships 7-21 days
11
220-1065
Washer
$7.06
1
usually ships 7-21 days
12
220-1066
Pulley
$46.96
1
usually ships 7-21 days
13
220-1067
Right hand cylinder gear
$59.49
1
usually ships 7-21 days
14
220-1068
Washer
Call for price
1
usually ships 7-21 days
15
220-1069
Aluminum gear kit
$125.94
1
usually ships 7-21 days
16
220-1070
Screw 4 x 10 inch zinc
Call for price
2
usually ships 7-21 days
17
220-1071
D4 washer
Call for price
2
usually ships 7-21 days
18
220-1072
Washer D4 x 12
Call for price
2
usually ships 7-21 days
19
220-1069
Aluminum gear kit
$125.94
1
usually ships 7-21 days
20
220-1069
Aluminum gear kit
$125.94
1
usually ships 7-21 days
21
220-1073
Left hand brush gear
$87.23
1
usually ships 7-21 days
