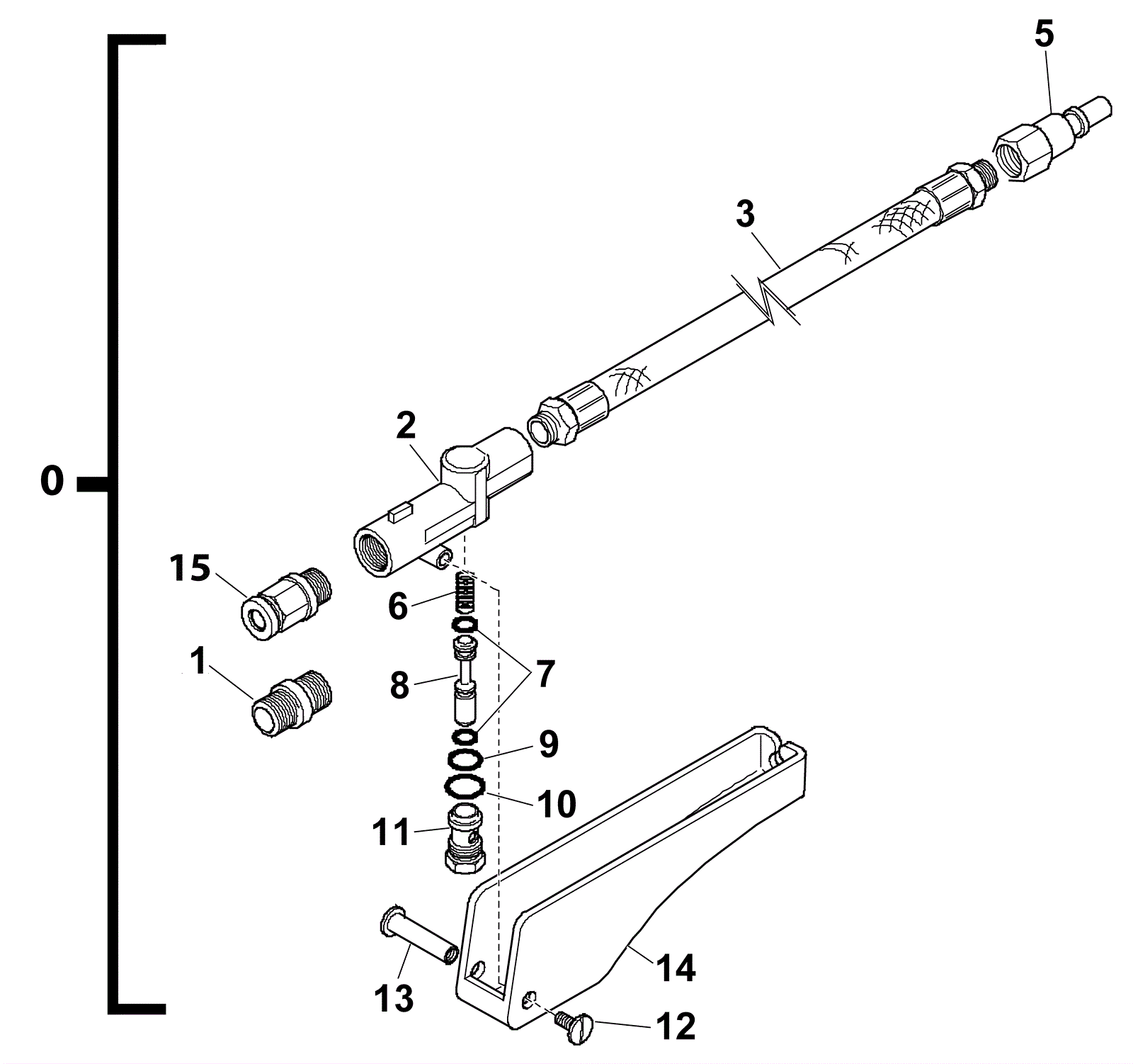

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
220-0836
|
Solution valve with metal coupling |
|
(includes 1-14) |
|
0b |
220-0844
|
Solution valve with coupling and hose nipple |
|
(includes 2-15) |
|
1 |
220-0843
|
Hose nipple |
|
|
|
2 |
220-0935
|
Plastic body |
|
|
|
3 |
220-0936
|
High pressure hose |
|
|
|
5 |
220-0035
|
Male fitting |
|
|
|
6 |
220-0937
|
Spring |
|
|
|
7 |
220-0536
|
O-ring |
|
|
|
8 |
220-0938
|
Solution valve shutter |
|
|
|
9 |
220-0326
|
O-ring |
|
|
|
10 |
220-0939
|
O ring |
|
|
|
11 |
220-0940
|
Seat |
|
|
|
12 |
220-0941
|
Screw |
|
|
|
13 |
220-0942
|
Screw |
|
|
|
14 |
220-0943
|
Solution valve lever |
|
|
|
15 |
220-0834
|
Automatic coupling |
|
|
|
