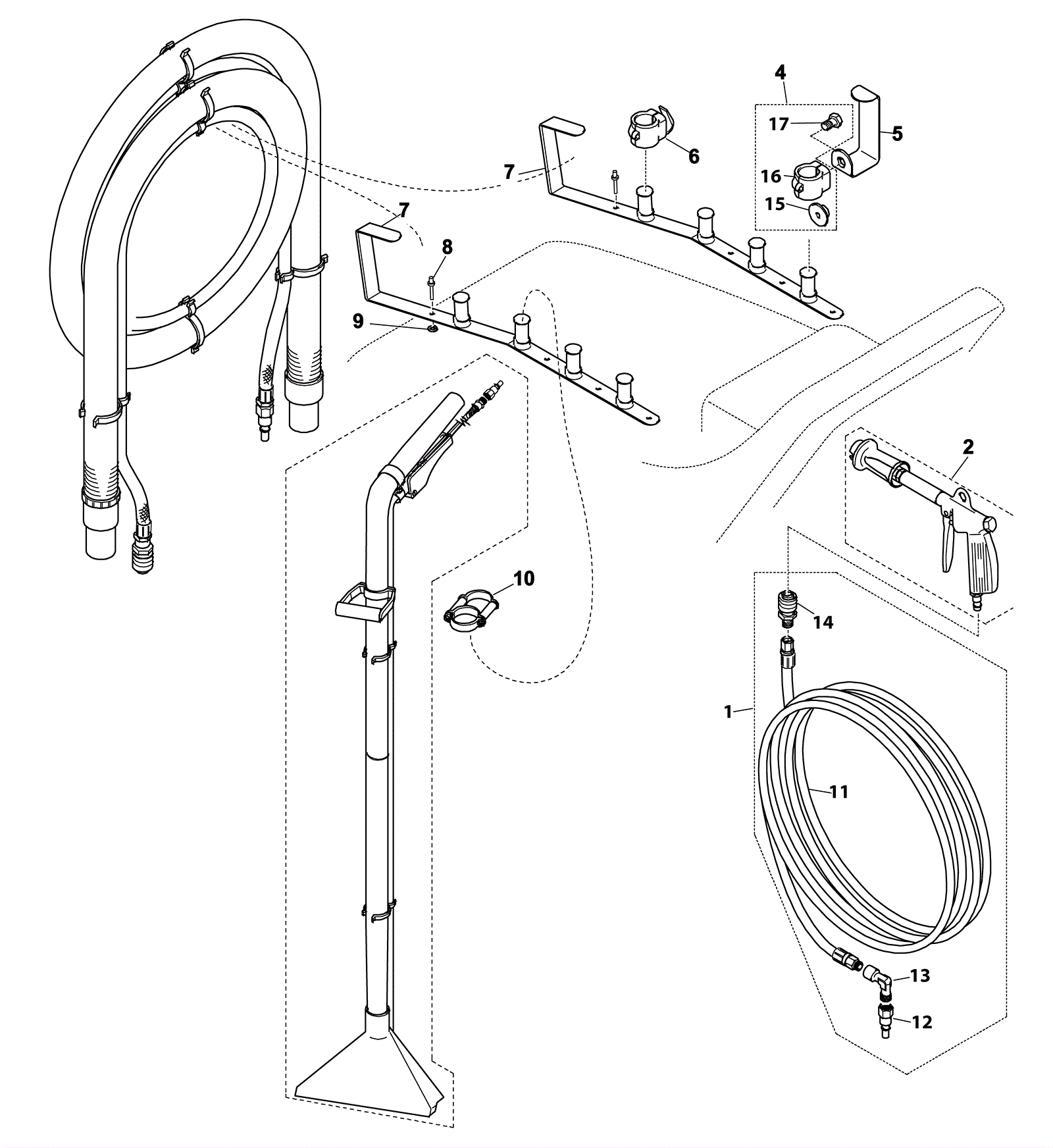

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-0917
|
Rango hose |
|
(includes 11-14) |
|
2a |
220-0919
|
Prespray gun |
|
|
|
2b |
220-4063
|
Brass male quick disconnect |
|
|
|
2c |
220-0920
|
Nozzle with variable angle and bypass |
|
|
|
4 |
220-0921
|
Clip assembly |
|
(includes 15-17) |
|
5 |
220-0924
|
Spray tube hook |
|
|
|
6 |
220-0925
|
Clip |
|
|
|
7 |
220-0926
|
Lower support |
|
|
|
8 |
220-0927
|
Rivet |
|
|
|
9 |
220-0901
|
Washer stainless steel |
|
|
|
10 |
220-0928
|
Hook |
|
|
|
11 |
220-0918
|
Tubo Rango |
|
|
|
12 |
220-0825
|
Coupling with anti drip fitting |
|
|
|
13 |
220-0826
|
Connector elbow |
|
|
|
14 |
220-0049
|
Female coupling |
|
|
|
15 |
220-0922
|
Washer |
|
|
|
16 |
220-0923
|
Clip |
|
|
|
17 |
220-0524
|
Screw |
|
|
|
