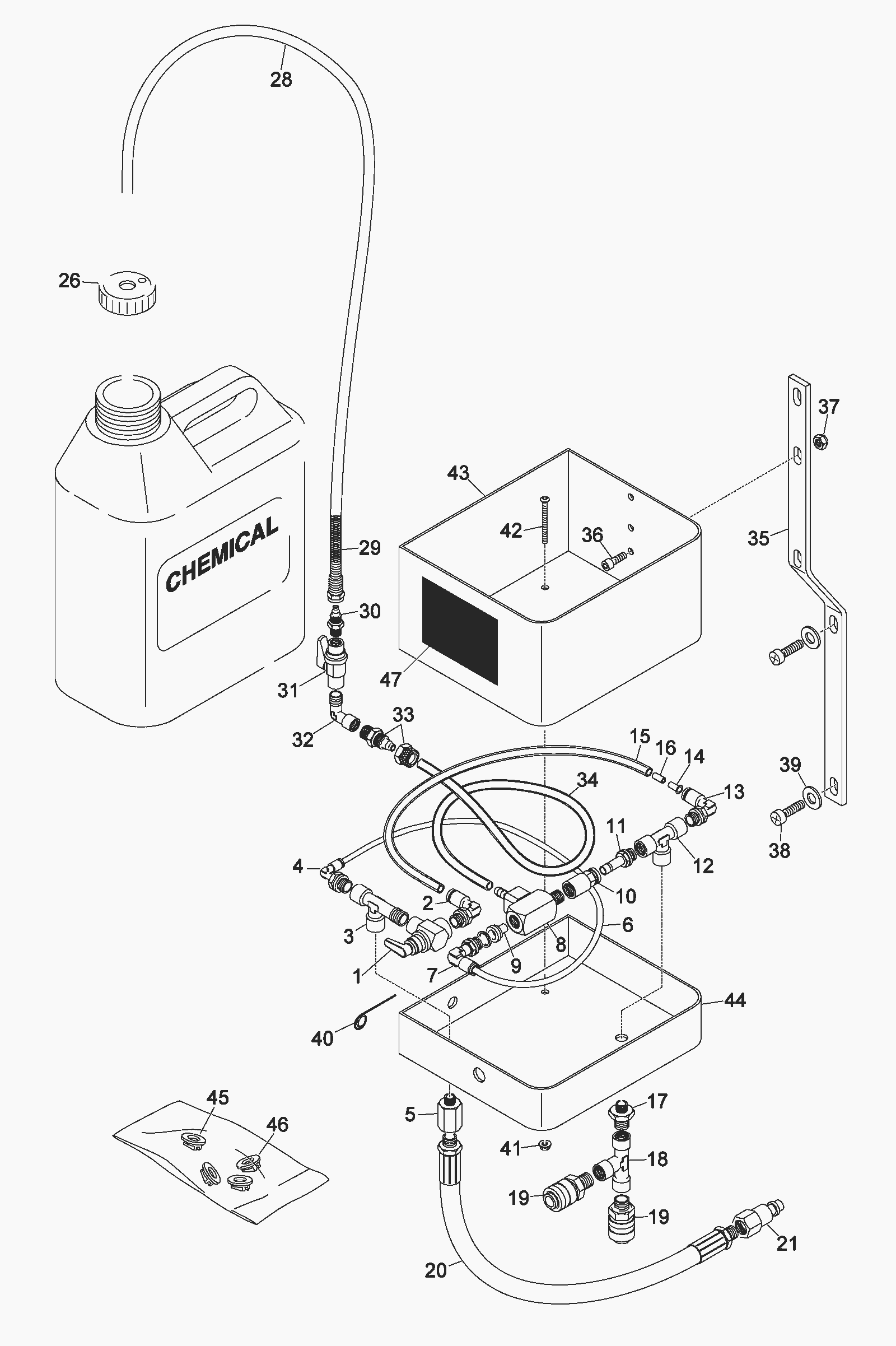

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-0431
|
Ball valve |
|
|
|
2 |
220-0881
|
Swivel elbow |
|
|
|
3 |
220-0882
|
T coupling |
|
|
|
4 |
220-0883
|
Swivel elbow R31 |
|
|
|
5 |
220-0884
|
Coupling fm 1/4 to 1/8 inch |
|
|
|
6 |
220-0885
|
Hose |
|
|
|
7 |
220-0883
|
Swivel elbow R31 |
|
|
|
8 |
220-0886
|
Dema injector |
|
|
|
9 |
220-0887
|
Bushing for dema injector .03 |
|
|
|
10 |
220-4047
|
Female quick disconnect |
|
|
|
11 |
220-0673
|
Male disconnect |
|
|
|
12 |
220-0888
|
T coupling |
|
|
|
13 |
220-0881
|
Swivel elbow |
|
|
|
14 |
220-0889
|
Restrictor |
|
|
|
15 |
220-0890
|
Rilsan hose |
|
|
|
16 |
220-0891
|
Bushing for dema injector .04 |
|
|
|
17 |
220-0892
|
Nipple |
|
|
|
18 |
220-0893
|
T coupling |
|
|
|
19 |
220-0049
|
Female coupling |
|
|
|
20 |
220-0894
|
Pressure hose 380mm 1/4 to 1/4 |
|
|
|
21 |
220-0035
|
Male fitting |
|
|
|
26 |
220-0895
|
Chemical cap |
|
|
|
28 |
220-0896
|
Poly tube |
|
|
|
29 |
220-0897
|
Spring |
|
|
|
30 |
220-4080
|
Coupling |
|
|
|
31 |
220-0898
|
Ball valve |
|
|
|
32 |
220-0675
|
Elbow |
|
|
|
33 |
220-4080
|
Coupling |
|
|
|
34 |
220-0896
|
Poly tube |
|
|
|
35 |
220-0899
|
Locking plate |
|
|
|
36 |
220-0622
|
Screw |
|
|
|
37 |
220-0620
|
Locking nut |
|
|
|
38 |
220-0900
|
Screw |
|
|
|
39 |
220-0901
|
Washer stainless steel |
|
|
|
40 |
220-0902
|
Pin |
|
|
|
41 |
220-0770
|
Nut with washer |
|
|
|
42 |
220-0903
|
Screw |
|
|
|
43 |
220-0904
|
Chemical tank holder |
|
|
|
44 |
220-0905
|
Housing |
|
|
|
45 |
220-0906
|
Nozzle |
|
(for use with smartkit with hand tool) |
|
46 |
220-0830
|
Nozzle (green) |
|
(for use with smartkit with 3 nozzle wand) |
|
47 |
220-0907
|
Smart kit decal |
|
|
|
