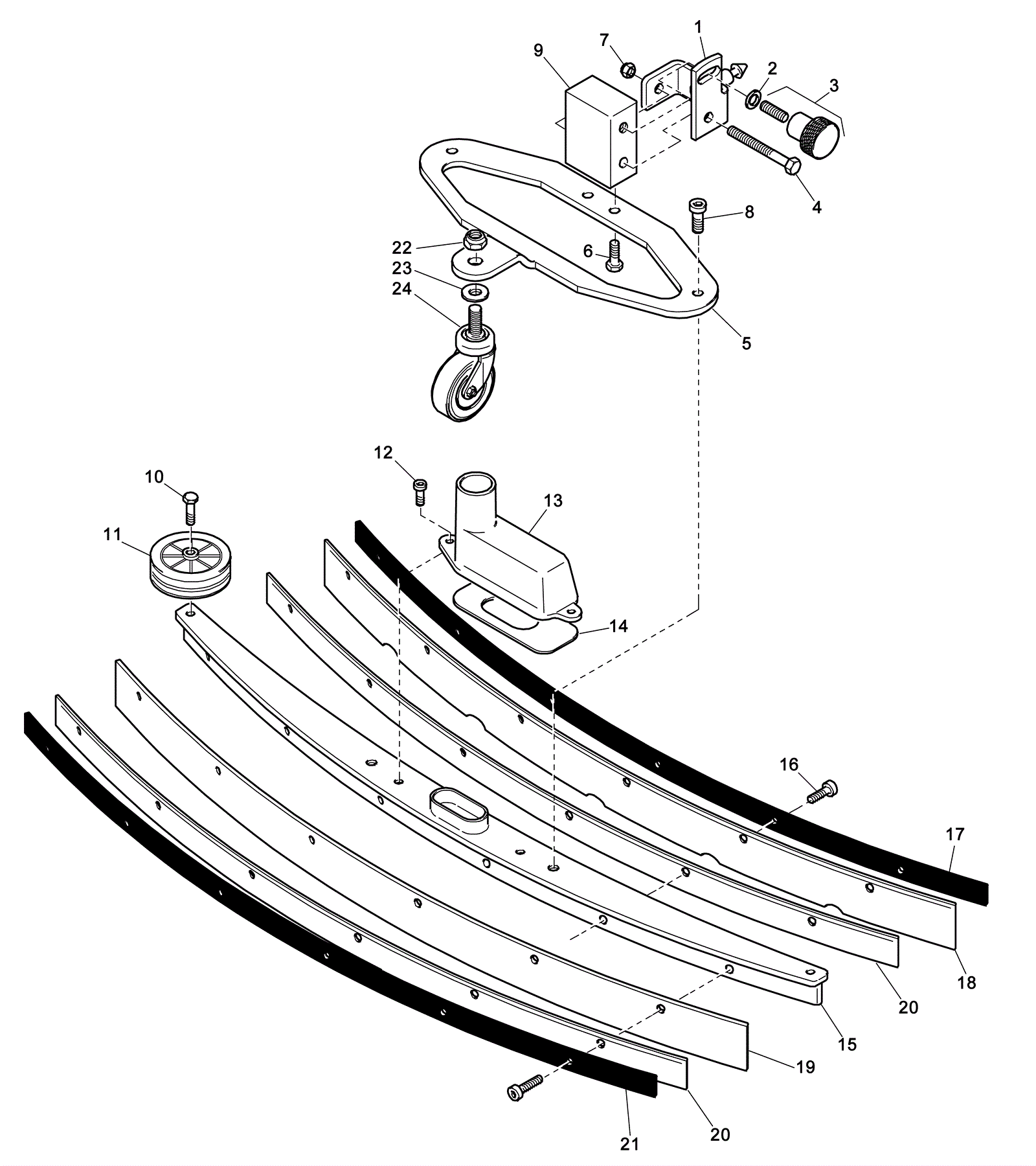

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 220-0867 Fork with stud
2 220-4048 Metal washer
3a 220-0868 Knob and stud
3b 220-0791 Pressure regulation knob
3c 220-0869 Stud
4 220-0598 Screw
5 220-0870 Support plate
6 220-4231 Screw
7 220-0594 Locking nut
8 220-0544 Screw
9 220-0871 Tuning block
10 220-0529 Bolt
11 220-0415 Wheel
12 220-0543 Screw
13 220-0872 Drain trap
14 220-0873 Gasket
15 220-0874 Aluminum head
16 220-0543 Screw
17 220-0875 Plate
18 220-0876 Front transport rubber
19 220-0877 Rubber blade
20 220-0878 Blade
21 220-0879 Rubber post
22 220-0594 Locking nut
23 220-0593 Washer
24 220-0880 Wheel
