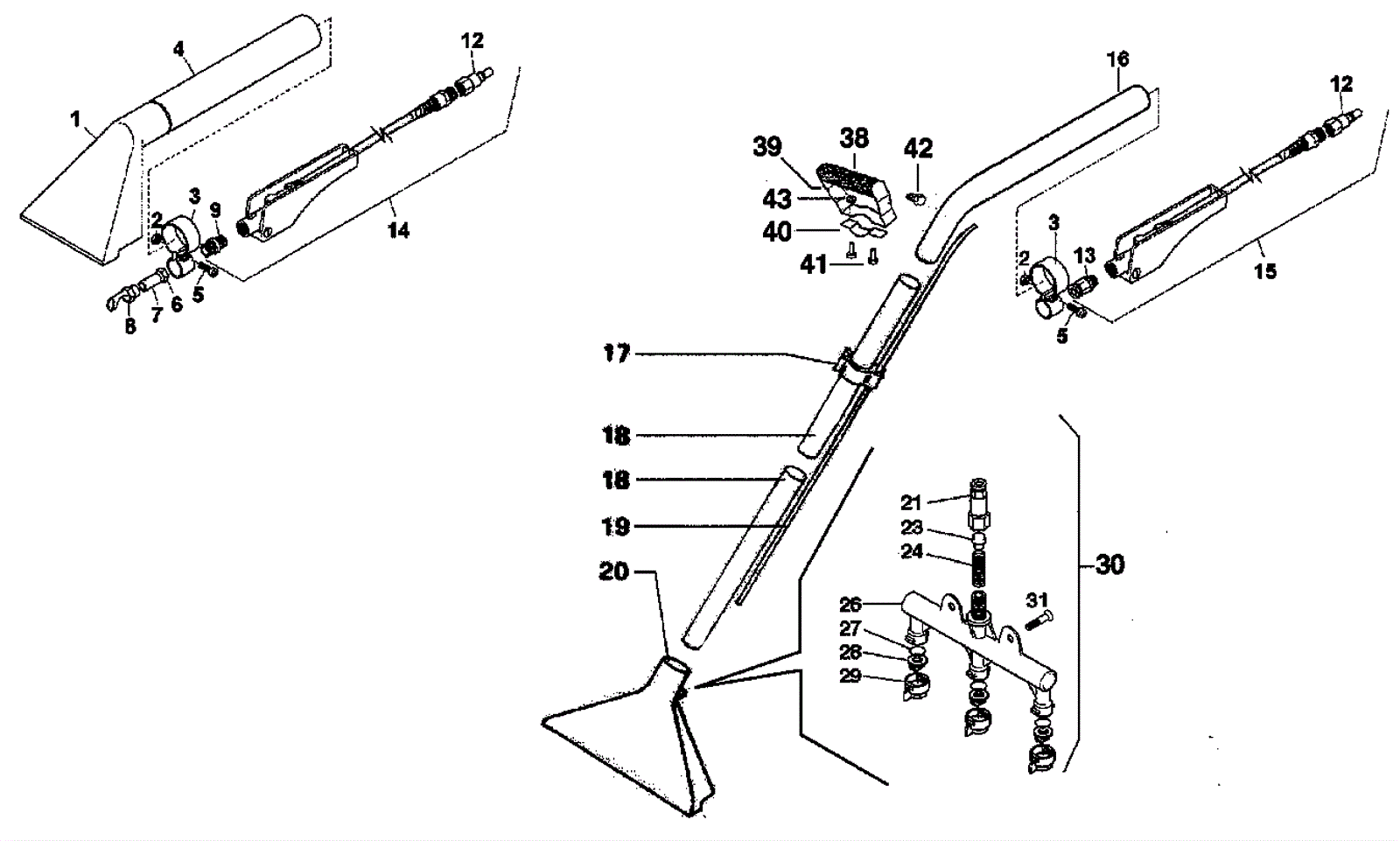

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
220-0837
|
Aluminum head |
|
|
|
1b |
220-0838
|
Aluminum nozzle head and tube |
|
|
|
2 |
220-0832
|
Nut |
|
|
|
3 |
220-0833
|
Valve lock |
|
|
|
4 |
220-0839
|
Metal tube |
|
|
|
5 |
220-4051
|
Screw |
|
|
|
6 |
220-0840
|
Connection reduction 1/4 to 1/8 inch |
|
|
|
7 |
220-0841
|
Extension |
|
|
|
8 |
220-0842
|
Brass nozzle |
|
|
|
9 |
220-0843
|
Hose nipple |
|
|
|
12 |
220-0035
|
Male fitting |
|
|
|
13 |
220-0834
|
Automatic coupling |
|
|
|
14 |
220-0844
|
Solution valve with coupling and hose nipple |
|
(includes 9 and 12) |
|
15 |
220-0836
|
Solution valve with metal coupling |
|
(includes 12-13) |
|
16 |
220-0858
|
Vacuum tube handle |
|
|
|
17 |
220-0668
|
Clip |
|
|
|
18 |
220-0859
|
Vacuum hose |
|
|
|
19 |
220-0860
|
Rilsan pipe |
|
|
|
20a |
220-0848
|
Aluminum head |
|
|
|
20b |
220-0861
|
Aluminum head with hose |
|
|
|
21 |
220-0862
|
Coupling |
|
|
|
23 |
220-0576
|
Rubber pin |
|
|
|
24 |
220-0575
|
Spring |
|
|
|
26 |
220-0863
|
Nozzle manifold |
|
|
|
27 |
220-0326
|
O-ring |
|
|
|
28 |
220-0830
|
Nozzle (green) |
|
|
|
29 |
220-0327
|
Nut |
|
|
|
30 |
220-0864
|
Complete manifold |
|
(includes 21,23,24,26-29, and 31) |
|
31 |
220-4009
|
Screw |
|
|
|
38a |
220-0852
|
Cylindric support for handle |
|
|
|
38b |
220-0853
|
Handle rubber grip |
|
|
|
39 |
220-0854
|
Upper part for handle |
|
|
|
40 |
220-0855
|
Lower part for handle |
|
|
|
41 |
220-0543
|
Screw |
|
|
|
42 |
220-4071
|
Screw |
|
|
|
43a |
220-0620
|
Locking nut |
|
|
|
43b |
220-0856
|
Handle |
|
|
|
