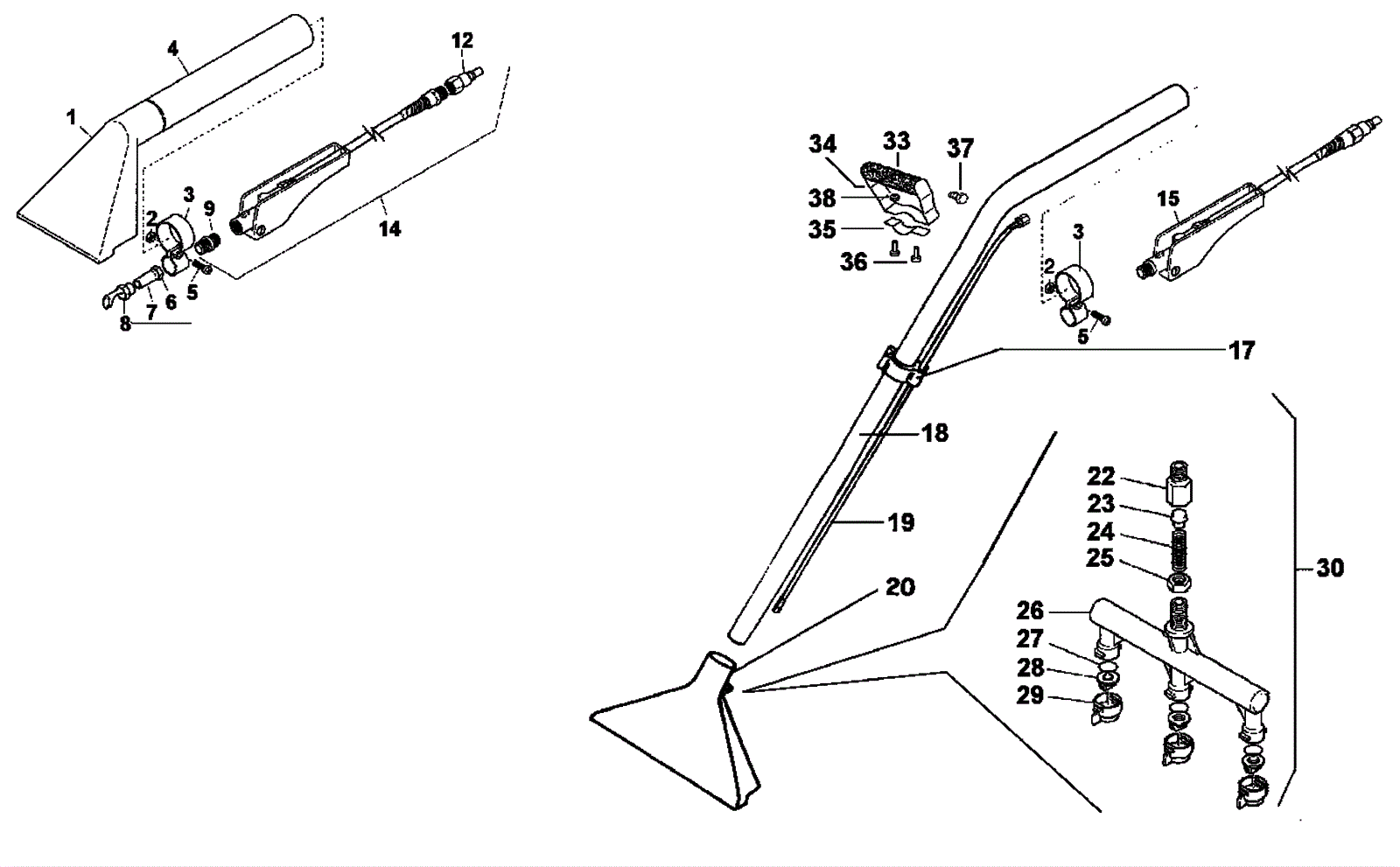

AVENGER 12QX Wand Assembly - Before June 2010

#PartDescriptionPriceReqNotesAvailability
1a 220-0837 Aluminum head Call for price usually ships 7-21 days
1b 220-0838 Aluminum nozzle head and tube $154.58 usually ships 7-21 days
2 220-0832 Nut $0.95 usually ships 7-21 days
3 220-0833 Valve lock $9.99 usually ships 7-21 days
4 220-0839 Metal tube Call for price usually ships 7-21 days
5 220-4051 Screw $0.95 usually ships 7-21 days
6 220-0840 Connection reduction 1/4 to 1/8 inch $12.07 usually ships 7-21 days
7 220-0841 Extension $10.87 usually ships 7-21 days
8 220-0842 Brass nozzle $15.71 usually ships 7-21 days
9 220-0843 Hose nipple $8.82 usually ships 7-21 days
12 220-0035 Male fitting $16.64 usually ships 7-21 days
14 220-0844 Solution valve with coupling and hose nipple Call for price (includes 9 and 12) usually ships 7-21 days
15 220-0845 Valve with meter lever and couplings $58.25 usually ships 7-21 days
17 220-4037 Tie $4.37 usually ships 7-21 days
18 220-0846 Vacuum hose Call for price usually ships 7-21 days
19 220-0847 Solution hose $45.64 usually ships 7-21 days
20 220-0848 Aluminum head Call for price usually ships 7-21 days
22 220-0577 Brass coupling $10.82 usually ships 7-21 days
23 220-0576 Rubber pin $1.70 usually ships 7-21 days
24 220-0575 Spring $4.20 usually ships 7-21 days
25 220-0849 Locking nut $5.11 usually ships 7-21 days
26 220-0850 Nozzle manifold $37.75 usually ships 7-21 days
27 220-0326 O-ring $0.95 usually ships 7-21 days
28 220-0830 Nozzle (green) $9.24 usually ships 7-21 days
29 220-0327 Nut $5.30 usually ships 7-21 days
30 220-0851 Complete manifold Call for price (includes 22-29) usually ships 7-21 days
33a 220-0852 Cylindric support for handle Call for price usually ships 7-21 days
33b 220-0853 Handle rubber grip Call for price usually ships 7-21 days
34 220-0854 Upper part for handle Call for price usually ships 7-21 days
35 220-0855 Lower part for handle Call for price usually ships 7-21 days
36 220-0543 Screw $2.26 usually ships 7-21 days
37 220-4071 Screw $4.26 usually ships 7-21 days
38 220-0620 Locking nut $2.18 usually ships 7-21 days
N/S 220-0856 Handle $81.28 usually ships 7-21 days
