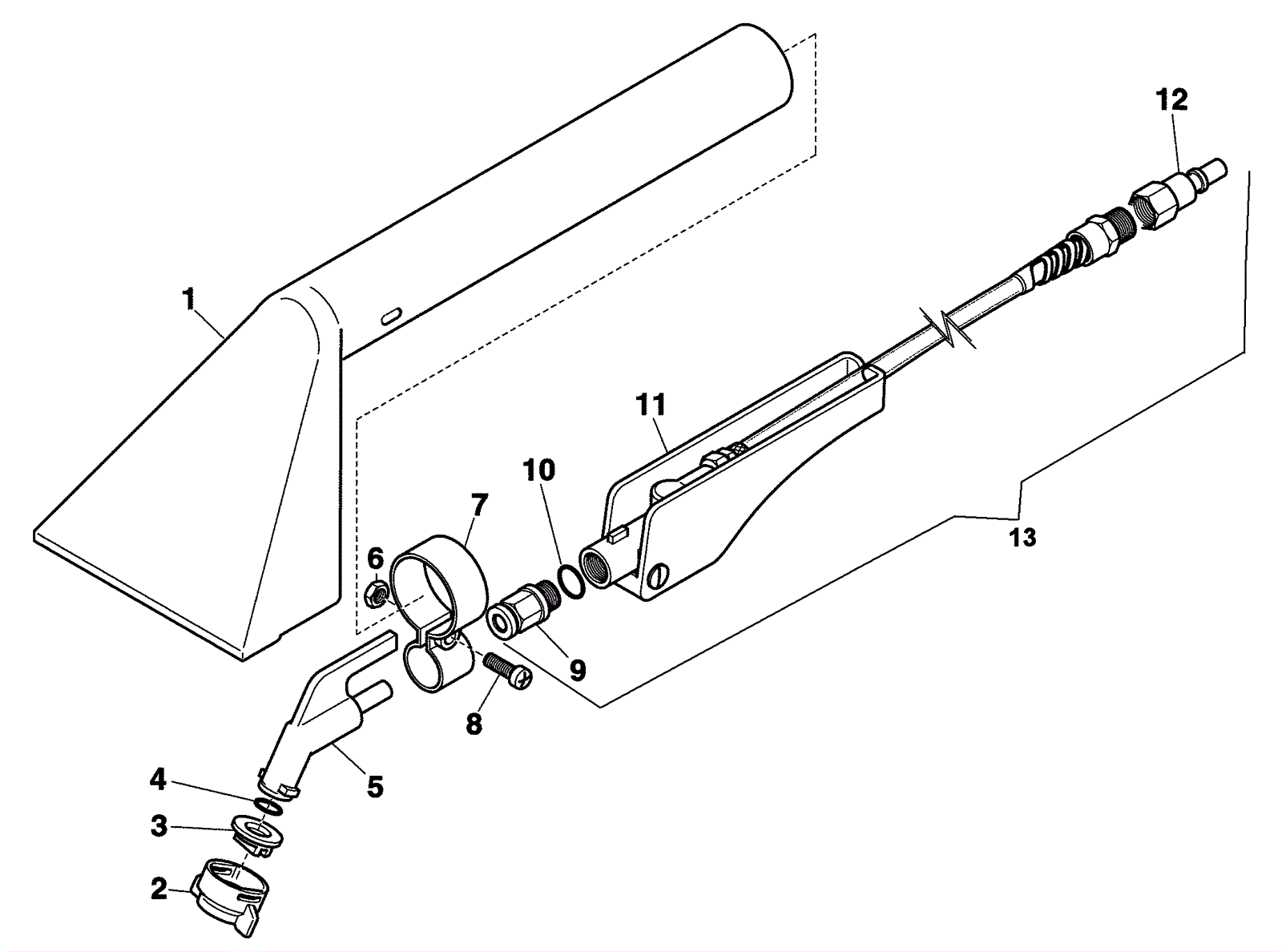

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-0829
|
Plastic body |
|
|
|
2 |
220-0327
|
Nut |
|
|
|
3 |
220-0830
|
Nozzle (green) |
|
|
|
4 |
220-0326
|
O-ring |
|
|
|
5 |
220-0831
|
Elbow |
|
|
|
6 |
220-0832
|
Nut |
|
|
|
7 |
220-0833
|
Valve lock |
|
|
|
8 |
220-4051
|
Screw |
|
|
|
9 |
220-0834
|
Automatic coupling |
|
|
|
10 |
220-4021
|
O-ring |
|
|
|
11 |
220-0835
|
Solution valve with lever |
|
|
|
12 |
220-0035
|
Male fitting |
|
|
|
13 |
220-0836
|
Solution valve with metal coupling |
|
(includes 9-12) |
|
