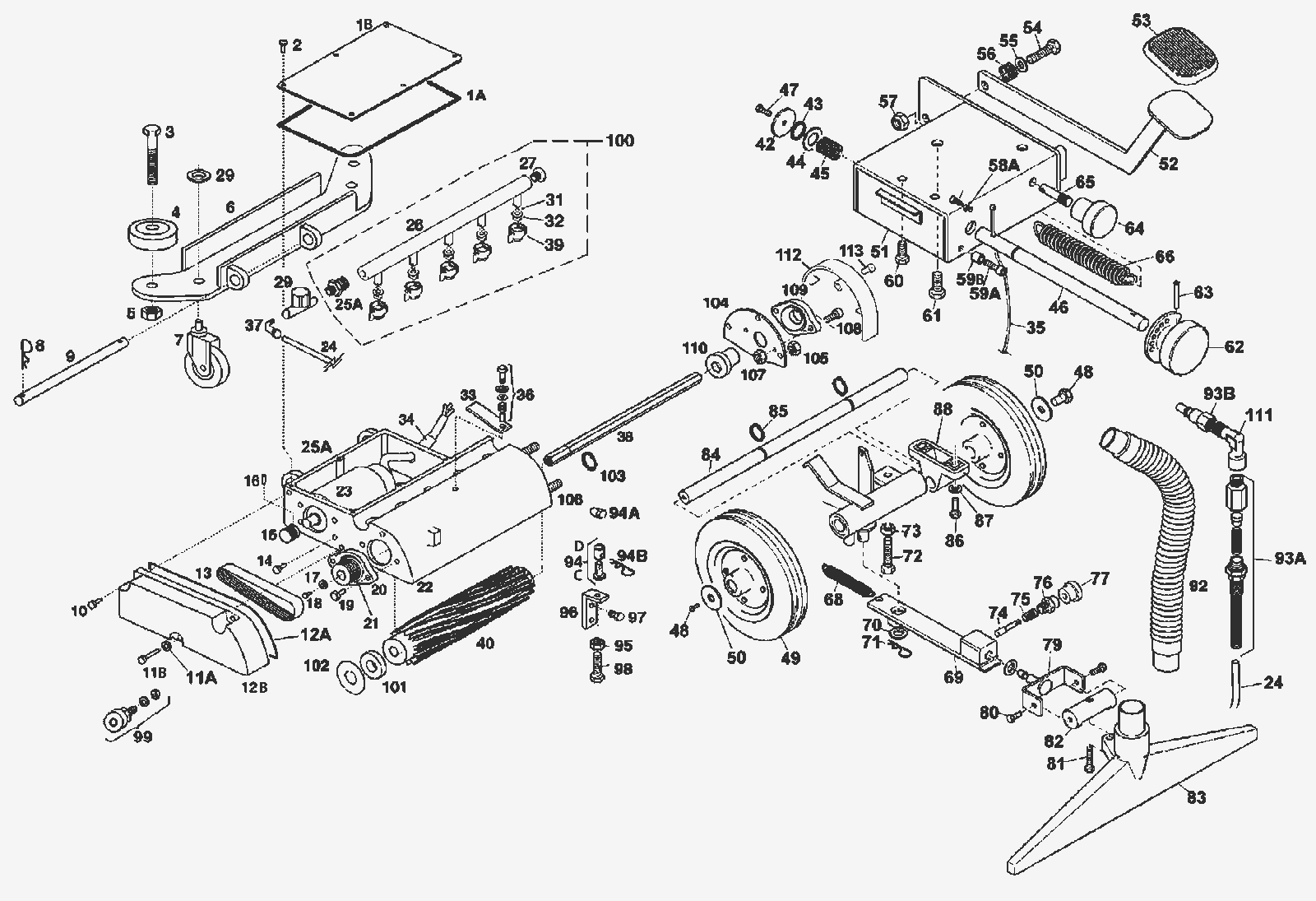

Brush Deck Assembly After SN 92890

#PartDescription ReqNotesAvailability
1a 220-0818 Gasket
1b 220-0528 Sliding block cover
2 220-4009 Screw
3 220-0529 Bolt
4 220-0415 Wheel
5 220-0819 Nut
6 220-0531 Front wheel support
7 220-0774 Front wheel
8 220-0533 Cotter pin
9 220-0534 Shaft
10a 220-0467 Screw
10b 220-0536 O-ring
11a 220-0536 O-ring
11b 220-0467 Screw
12a 220-0538 Gasket (from S/N 34040)
12b 220-0537 Belt cover (from S/N 34040)
13 220-0271 Belt
14 220-0539 Screw
15 220-0540 Pulley
16 220-0541 Stop dowel
17 220-0542 Washer
18 220-0776 Screw
19a 220-0543 Screw (from S/N 34040)
19b 220-0544 Screw
20a 220-0303 Bearing with support (from S/N 34040)
20b 220-0301 Bearing with support (until S/N 34039)
21a 220-0445 Brush pulley (from S/N 34040)
21b 220-0548 Brush pulley (until S/N 34039)
22a 220-0549 Sliding block (from S/N 34040)
22b 220-0777 Sliding block (until S/N 34039)
23 220-0551 120V brush motor
24 220-0172 Water pipe
25a 220-0778 Nipple 3/8 x 1/8 inch
26 220-0449 Manifold
27 220-0555 Cap
29 220-0779 Water flow regulation valve
31 220-0326 O-ring
32 220-0820 Green tip nozzle
33 220-0556 Manifold lock
34 220-4028 Fairlead
35 220-0329 Steel wire
36a 220-0565 Spring
36b 999-1658 Washer M5 x 15mm flat stainless steel (OBSOLETE)
36c 220-0542 Washer
36d 220-0821 Screw
36e 220-0611 Bushing
37a 220-0675 Elbow
37b 220-0822 Quick disconnect (orange)
38 220-0781 Brush shaft
39 220-0327 Nut
40 220-0347 Brush roll
42 220-0562 Washer
43 220-0563 Circlip
44 220-0564 Washer
45 220-0565 Spring
46 220-0782 Shaft
47 220-0539 Screw
48 220-0570 Screw
49 220-0413 Wheel
50 220-0783 Washer
51 220-0784 Metal housing
52 220-4170 Pedal
53 220-0785 Rubber pedal cover
54 220-0573 Screw
55 999-6713 Washer M10 x 30mm flat stainless steel
56 220-0786 Spring
57 220-0787 Locking nut
58a 999-6714 Washer M6 x 12mm flat stainless steel
59a 220-0790 Screw
59b 220-0789 Thimble
60 220-0544 Screw
61 220-4231 Screw
62 220-0583 Knob
63 220-0584 Elastic pin
64 220-0791 Pressure regulation knob
65 220-0792 Rod
66 220-0823 Spring
68 220-0796 Spring
69 220-0795 Vacuum head support
70 220-0564 Washer
71 220-0533 Cotter pin
72 220-0797 Screw
73 220-0798 Nut
74 220-0799 Pawl pin
75 220-0691 Complete pawl
76 220-0800 Pawl body
77a 220-0801 Pawl hand grip
77b 220-0802 Complete pawl
79 220-0803 Vacuum head support
80 220-4231 Screw
81 220-0573 Screw
82 220-0804 Support for vacuum head orientation
83a 220-0412 Vacuum head
83b 220-4249 Vacuum head with hose and support (includes 79-83)
84 220-0806 Shaft for wheels
85 220-0807 Seeger
86 220-4231 Screw
87 220-0593 Washer
88 220-4238 Pillow block
92 220-0421 Vacuum hose
93b 220-0825 Coupling with anti drip fitting (before S/N 56.000)
94a 220-0812 Rope lock
94b 220-0533 Cotter pin
94c 220-0811 Internal pin
94d 220-0810 External support
95 220-0530 Nut
96 220-0813 Stop plate
97 220-0607 Screw
98 220-0814 Screw
99a 220-0615 Belt tension assembly
99b 220-0530 Nut
99c 220-0613 Lock washer
99d 220-0815 Belt stretcher shaft
99e 220-0302 Belt stretcher
99f 220-0614 Seeger
99g 220-0326 O-ring
100 220-0816 Manifold with nozzles, cap, and nipple
101a 220-0443 Rubber gasket (from S/N 34040)
101b 220-0817 Rubber gaskets for bearing (until S/N 34039)
102 220-0444 Mialar disc
103 220-0446 Seegar
104 220-0618 Plate
105 220-0620 Locking nut
106 220-0622 Screw
107 220-0621 Brass nut
108 220-0543 Screw
109 220-0303 Bearing with support
110 220-0617 Pulley
111 220-0826 Connector elbow
112 220-0827 Bearing cover
113 220-0828 Screw
N/S 220-0794 Cylinder with brackets
N/S 220-0574 Spring
N/S 220-0575 Spring
N/S 220-0576 Rubber pin
N/S 220-0577 Brass coupling
N/S 220-0788 Lock screw
