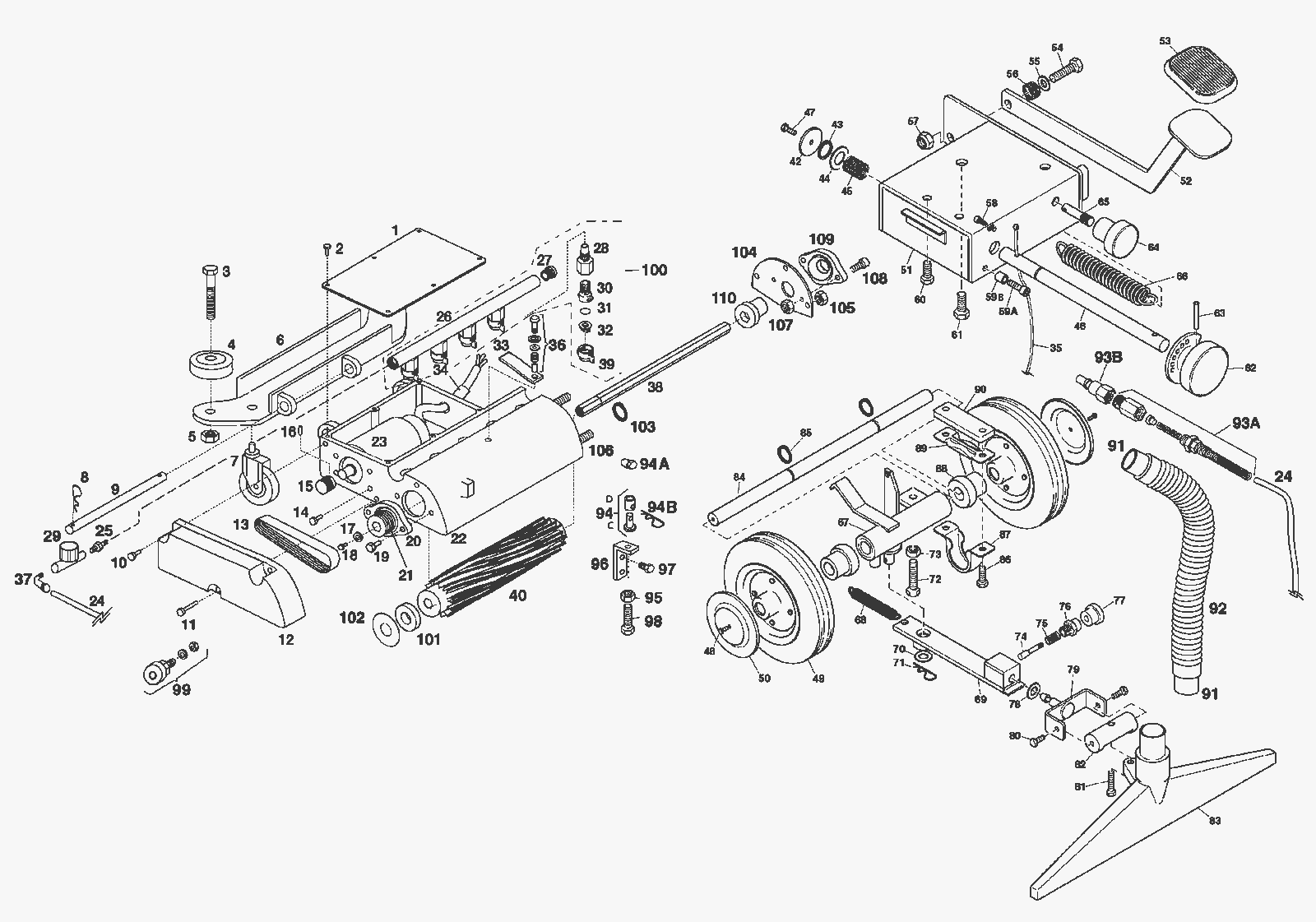

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-0528
|
Sliding block cover |
|
|
|
2 |
220-0518
|
Screw |
|
|
|
3 |
220-0529
|
Bolt |
|
|
|
4 |
220-0415
|
Wheel |
|
|
|
5 |
220-0530
|
Nut |
|
|
|
6 |
220-0773
|
Front wheels support |
|
|
|
7 |
220-0774
|
Front wheel |
|
|
|
8 |
220-0533
|
Cotter pin |
|
|
|
9 |
220-0534
|
Shaft |
|
|
|
10a |
220-0467
|
Screw |
|
|
|
10b |
220-0536
|
O-ring |
|
|
|
11a |
220-0467
|
Screw |
|
|
|
11b |
220-0536
|
O-ring |
|
|
|
12a |
220-0537
|
Belt cover |
|
(from S/N 05XX34040) |
|
12b |
220-0538
|
Gasket |
|
(from S/N 05XX34040) |
|
12c |
220-0775
|
Belt cover |
|
(until S/N 05XX34039) |
|
13 |
220-0271
|
Belt |
|
|
|
14 |
220-0539
|
Screw |
|
|
|
15 |
220-0540
|
Pulley |
|
|
|
16 |
220-0541
|
Stop dowel |
|
|
|
17 |
220-0542
|
Washer |
|
|
|
18 |
220-0776
|
Screw |
|
|
|
19a |
220-0543
|
Screw |
|
(from S/N 05XX34040) |
|
19b |
220-0544
|
Screw |
|
(until S/N 05XX34039) |
|
20a |
220-0303
|
Bearing with support |
|
(from S/N 05XX34040) |
|
20b |
220-0301
|
Bearing with support |
|
(until S/N 05XX34039) |
|
21a |
220-0445
|
Brush pulley |
|
(from S/N 05XX34040) |
|
21b |
220-0548
|
Brush pulley |
|
(until S/N 05XX34039) |
|
22a |
220-0549
|
Sliding block |
|
(from S/N 05XX34040) |
|
22b |
220-0777
|
Sliding block |
|
(until S/N 05XX34039) |
|
23 |
220-0551
|
120V brush motor |
|
|
|
24 |
220-0172
|
Water pipe |
|
|
|
25 |
220-0778
|
Nipple 3/8 x 1/8 inch |
|
|
|
26a |
220-0449
|
Manifold |
|
|
|
26b |
220-0554
|
Plate |
|
|
|
27 |
220-0555
|
Cap |
|
|
|
28 |
220-0449
|
Manifold |
|
|
|
29 |
220-0779
|
Water flow regulation valve |
|
|
|
30 |
220-0616
|
Quick disconnect support |
|
|
|
31 |
220-0326
|
O-ring |
|
|
|
32 |
220-0304
|
Nozzle |
|
|
|
33 |
220-0556
|
Manifold lock |
|
|
|
34 |
220-4028
|
Fairlead |
|
|
|
35 |
220-0329
|
Steel wire |
|
|
|
36a |
220-0565
|
Spring |
|
|
|
36b |
220-4017
|
Washer |
|
|
|
36c |
220-0542
|
Washer |
|
|
|
36d |
220-4018
|
Screw |
|
|
|
36e |
220-0611
|
Bushing |
|
|
|
37 |
220-0780
|
Elbow for 6/8 pipe |
|
|
|
38 |
220-0781
|
Brush shaft |
|
|
|
39 |
220-0327
|
Nut |
|
|
|
40 |
220-0347
|
Brush roll |
|
|
|
42 |
220-0562
|
Washer |
|
|
|
43 |
220-0563
|
Circlip |
|
|
|
44 |
220-0564
|
Washer |
|
|
|
45 |
220-0565
|
Spring |
|
|
|
46 |
220-0782
|
Shaft |
|
|
|
47 |
220-0539
|
Screw |
|
|
|
48 |
220-0570
|
Screw |
|
|
|
49 |
220-0413
|
Wheel |
|
|
|
50 |
220-0783
|
Washer |
|
|
|
51 |
220-0784
|
Metal housing |
|
|
|
52 |
220-4170
|
Pedal |
|
|
|
53 |
220-0785
|
Rubber pedal cover |
|
|
|
54 |
220-0573
|
Screw |
|
|
|
55 |
999-6713
|
Washer M10 x 30mm flat stainless steel |
|
|
|
56 |
220-0786
|
Spring |
|
|
|
57 |
220-0787
|
Locking nut |
|
|
|
58a |
220-0788
|
Lock screw |
|
|
|
58b |
999-6714
|
Washer M6 x 12mm flat stainless steel |
|
|
|
59a |
220-0789
|
Thimble |
|
|
|
59b |
220-0790
|
Screw |
|
|
|
60 |
220-0544
|
Screw |
|
|
|
61 |
220-4231
|
Screw |
|
|
|
62 |
220-0583
|
Knob |
|
|
|
63 |
220-0584
|
Elastic pin |
|
|
|
64 |
220-0791
|
Pressure regulation knob |
|
|
|
65 |
220-0792
|
Rod |
|
|
|
66 |
220-0793
|
Spring |
|
|
|
67 |
220-0794
|
Cylinder with brackets |
|
|
|
68 |
220-0796
|
Spring |
|
|
|
69 |
220-0795
|
Vacuum head support |
|
|
|
70 |
220-0564
|
Washer |
|
|
|
71 |
220-0533
|
Cotter pin |
|
|
|
72 |
220-0797
|
Screw |
|
|
|
73 |
220-0798
|
Nut |
|
|
|
74 |
220-0799
|
Pawl pin |
|
|
|
75 |
220-0691
|
Complete pawl |
|
|
|
76 |
220-0800
|
Pawl body |
|
|
|
77a |
220-0801
|
Pawl hand grip |
|
|
|
77b |
220-0802
|
Complete pawl |
|
|
|
78 |
220-0564
|
Washer |
|
|
|
79 |
220-0803
|
Vacuum head support |
|
|
|
80 |
220-4231
|
Screw |
|
|
|
81 |
220-0573
|
Screw |
|
|
|
82 |
220-0804
|
Support for vacuum head orientation |
|
|
|
83a |
220-0412
|
Vacuum head |
|
|
|
83b |
220-4249
|
Vacuum head with hose and support |
|
(includes 79,80,81,82,83a) |
|
84 |
220-0806
|
Shaft for wheels |
|
|
|
85 |
220-0807
|
Seeger |
|
|
|
86 |
220-4231
|
Screw |
|
|
|
87 |
220-4238
|
Pillow block |
|
|
|
88 |
220-4238
|
Pillow block |
|
|
|
89 |
220-4238
|
Pillow block |
|
|
|
90 |
220-4230
|
Distance plate |
|
|
|
91 |
220-4059
|
Hose cuff |
|
|
|
92 |
220-0421
|
Vacuum hose |
|
|
|
93b |
220-0035
|
Male fitting |
|
(Metal) |
|
94a |
220-0812
|
Rope lock |
|
|
|
94b |
220-0533
|
Cotter pin |
|
|
|
94c |
220-0811
|
Internal pin |
|
|
|
94d |
220-0810
|
External support |
|
|
|
95 |
220-0530
|
Nut |
|
|
|
96 |
220-0813
|
Stop plate |
|
|
|
97 |
220-0607
|
Screw |
|
|
|
98 |
220-0814
|
Screw |
|
|
|
99a |
220-0530
|
Nut |
|
|
|
99b |
220-0613
|
Lock washer |
|
|
|
99c |
220-0815
|
Belt stretcher shaft |
|
|
|
99d |
220-0302
|
Belt stretcher |
|
|
|
99e |
220-0614
|
Seeger |
|
|
|
99f |
220-0326
|
O-ring |
|
|
|
99g |
220-0615
|
Belt tension assembly |
|
|
|
100 |
220-0816
|
Manifold with nozzles, cap, and nipple |
|
|
|
101a |
220-0443
|
Rubber gasket |
|
(from S/N 05XX34040) |
|
101b |
220-0817
|
Rubber gaskets for bearing |
|
(until S/N 05XX34039) |
|
102 |
220-0444
|
Mialar disc |
|
|
|
103 |
220-0446
|
Seegar |
|
|
|
104 |
220-0618
|
Plate |
|
|
|
105 |
220-0620
|
Locking nut |
|
|
|
106 |
220-0622
|
Screw |
|
|
|
107 |
220-0621
|
Brass nut |
|
|
|
108 |
220-0543
|
Screw |
|
|
|
109 |
220-0303
|
Bearing with support |
|
|
|
110 |
220-0617
|
Pulley |
|
|
|
N/S |
220-0326
|
O-ring |
|
|
|
N/S |
220-0574
|
Spring |
|
|
|
N/S |
220-0575
|
Spring |
|
|
|
N/S |
220-0576
|
Rubber pin |
|
|
|
N/S |
220-0577
|
Brass coupling |
|
|
|
N/S |
220-0809
|
1/4 inch plastic male quick disconnect |
|
(plastic) |
|
