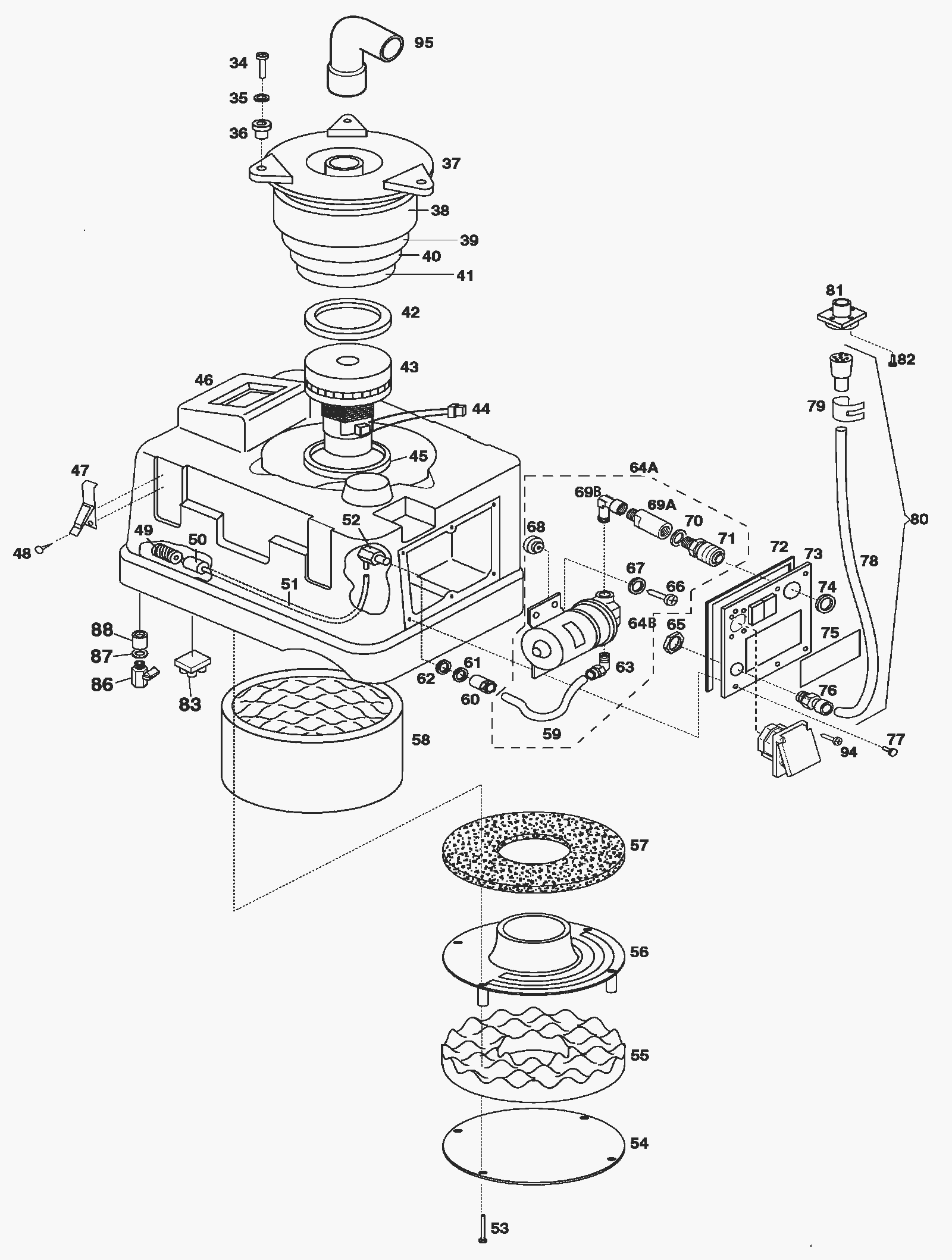

| # | Part | Description |
Req | Notes | Availability |
|---|
34 |
220-0488
|
Screw |
|
|
|
35 |
220-0489
|
Washer |
|
|
|
36 |
220-0737
|
Vibration dampening |
|
|
|
37 |
220-0738
|
Aluminum silencing flange |
|
|
|
38 |
220-0739
|
Soundproofing filter |
|
|
|
39 |
220-0740
|
Soundproofing filter |
|
|
|
40 |
220-0741
|
Soundproofing filter |
|
|
|
41 |
220-0742
|
Soundproofing filter |
|
|
|
42a |
220-0490
|
Gasket |
|
(for 808PA) |
|
42b |
220-0429
|
Vacuum motor gasket |
|
(per 808) |
|
43a |
220-4077
|
120V 3 stage vacuum motor |
|
(after s/n 47090) |
|
43b |
220-4014
|
110V motor |
|
(before s/n 47089) |
|
43c |
220-0743
|
100V 3 stage vacuum motor |
|
(after s/n 49620) |
|
43d |
220-0744
|
100V 3 stage vacuum motor |
|
(before s/n 49620) |
|
44a |
220-4015
|
Connector |
|
|
|
44b |
220-0492
|
Male electrical terminal |
|
|
|
45 |
220-0429
|
Vacuum motor gasket |
|
|
|
46 |
220-0745
|
Lower tank (blue) |
|
|
|
47 |
220-0493
|
Toggle |
|
|
|
48 |
220-4035
|
Screw |
|
|
|
49 |
220-0401
|
Filter |
|
|
|
50 |
220-0427
|
Ballast |
|
|
|
51 |
220-0495
|
Extraflex pipe |
|
|
|
52 |
220-0496
|
Hose nipple |
|
|
|
53 |
220-0746
|
Screw |
|
|
|
54 |
220-0747
|
Circular lower panel |
|
|
|
55 |
220-0748
|
Lower soundproofing disc |
|
|
|
56 |
220-0749
|
Lower motor flange |
|
|
|
57 |
220-0750
|
Lower soundproofing filter |
|
|
|
58 |
220-0751
|
Lower soundproofing cylinder |
|
|
|
59 |
220-4023
|
Rislan pipe |
|
|
|
60 |
220-4047
|
Female quick disconnect |
|
|
|
61 |
220-4048
|
Metal washer |
|
|
|
62 |
220-0400
|
Neoprene washer |
|
|
|
63 |
220-4022
|
Elbow |
|
|
|
64a |
220-4078
|
100V pump 100 Psi |
|
(includes 59,63,64b,66,67,68,69a,69b,70, and 71) |
|
64b |
220-0321
|
100V pump 135 Psi |
|
|
|
65 |
220-0498
|
Nut |
|
|
|
66 |
220-4018
|
Screw |
|
|
|
67 |
220-4017
|
Washer |
|
|
|
68 |
220-4016
|
Vibration dampening |
|
|
|
69a |
220-4020
|
Extension |
|
|
|
69b |
220-4019
|
Elbow |
|
|
|
70 |
220-0752
|
Gasket for coupling |
|
|
|
71 |
220-0753
|
Coupling with anti drip fitting |
|
|
|
72 |
220-0500
|
Panel gasket |
|
|
|
73a |
220-0754
|
Lower panel |
|
|
|
73b |
220-0755
|
Lower panel with hole for plug |
|
|
|
74 |
220-4024
|
Bush |
|
|
|
75 |
220-0756
|
Lower panel decal |
|
|
|
76 |
220-0501
|
Connector |
|
|
|
77 |
220-4009
|
Screw |
|
|
|
78 |
220-0757
|
Cable sheath |
|
|
|
79 |
220-0503
|
Tie |
|
|
|
80 |
220-0758
|
Wiring harness |
|
|
|
81 |
220-0759
|
Socket with wires |
|
|
|
82 |
220-0518
|
Screw |
|
|
|
83 |
220-0516
|
External rectifier |
|
|
|
86 |
220-0509
|
Drain valve |
|
|
|
87 |
220-0508
|
Lock washer |
|
|
|
88 |
220-0507
|
Connector |
|
|
|
94 |
220-0518
|
Screw |
|
|
|
95 |
220-0760
|
Elbow |
|
|
|
N/S |
220-0499
|
Extension |
|
|
|
N/S |
220-0411
|
Circuit breaker |
|
|
|
N/S |
220-0425
|
Strain relief with nut |
|
|
|
N/S |
220-0516
|
External rectifier |
|
|
|
N/S |
220-0517
|
Radio interference suppressor |
|
|
|
N/S |
220-0518
|
Screw |
|
|
|
N/S |
220-0519
|
Radio interference supressor |
|
|
|
