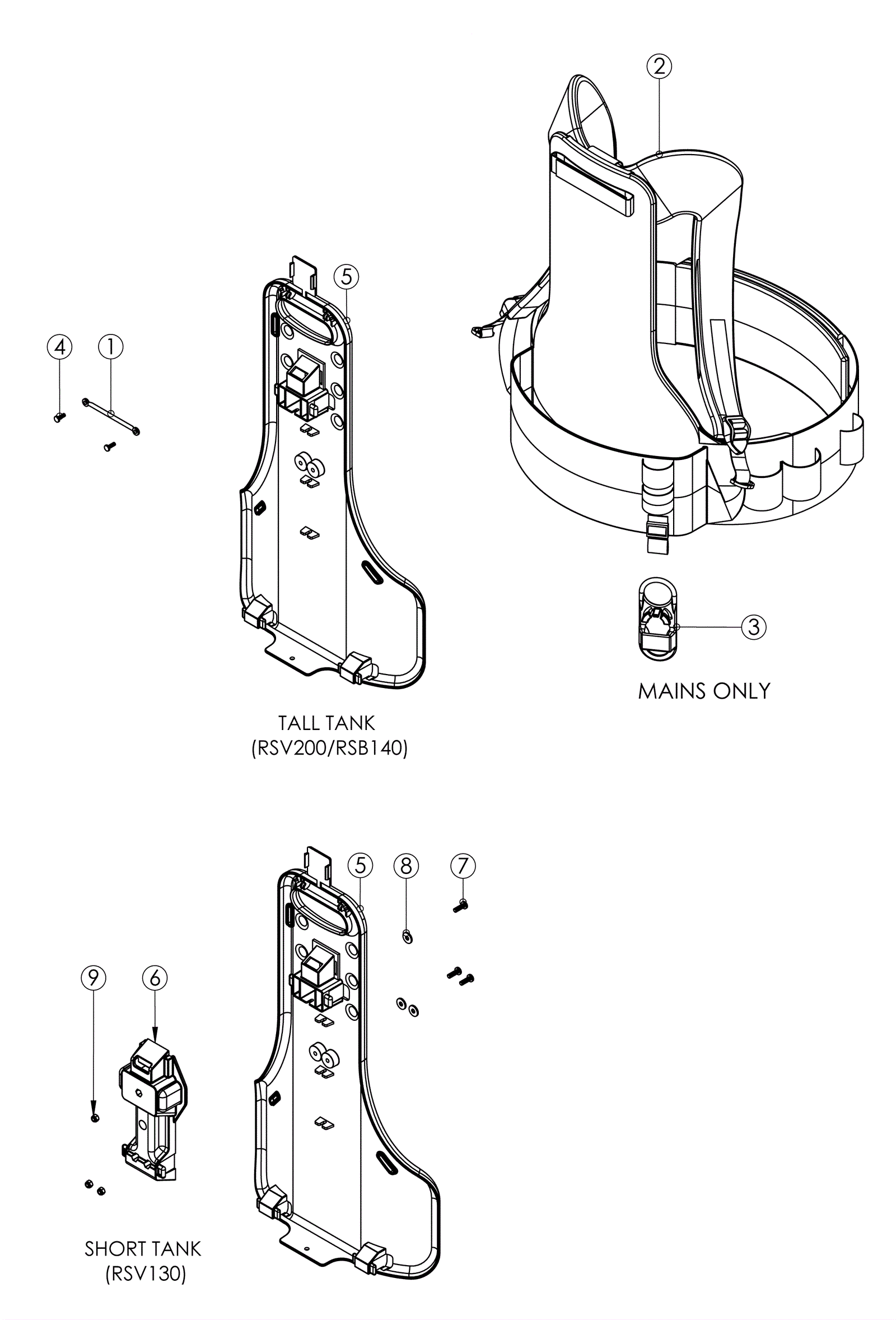

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-2040
|
Harness pin |
1 |
|
usually ships 16-24 days |
2a |
220-2050
|
Rucksack harness (red) |
1 |
|
usually ships 16-24 days |
2b |
220-2051
|
Rucksac harness (blue) |
1 |
|
usually ships 16-24 days |
3 |
220-2052
|
Stress relief cable |
1 |
(Used on main machines only) |
usually ships 16-24 days |
4 |
220-2030
|
Screw 8 x 3/8 plastite |
2 |
|
usually ships 16-24 days |
5 |
220-2017
|
Back support moulding |
1 |
|
usually ships 16-24 days |
6 |
220-2053
|
Lower tank support harness |
1 |
(Used on short tank models only (RSV 130) |
usually ships 16-24 days |
7 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
3 |
(Used on short tank models only RSV 130) |
usually ships 11-14 days |
8 |
220-4157
|
Washer |
3 |
(Used on short tank models only (RSV 130) |
usually ships 16-24 days |
9 |
220-2033
|
Self locking nut |
2 |
(Used on short tank models only (RSV 130) |
usually ships 16-24 days |
