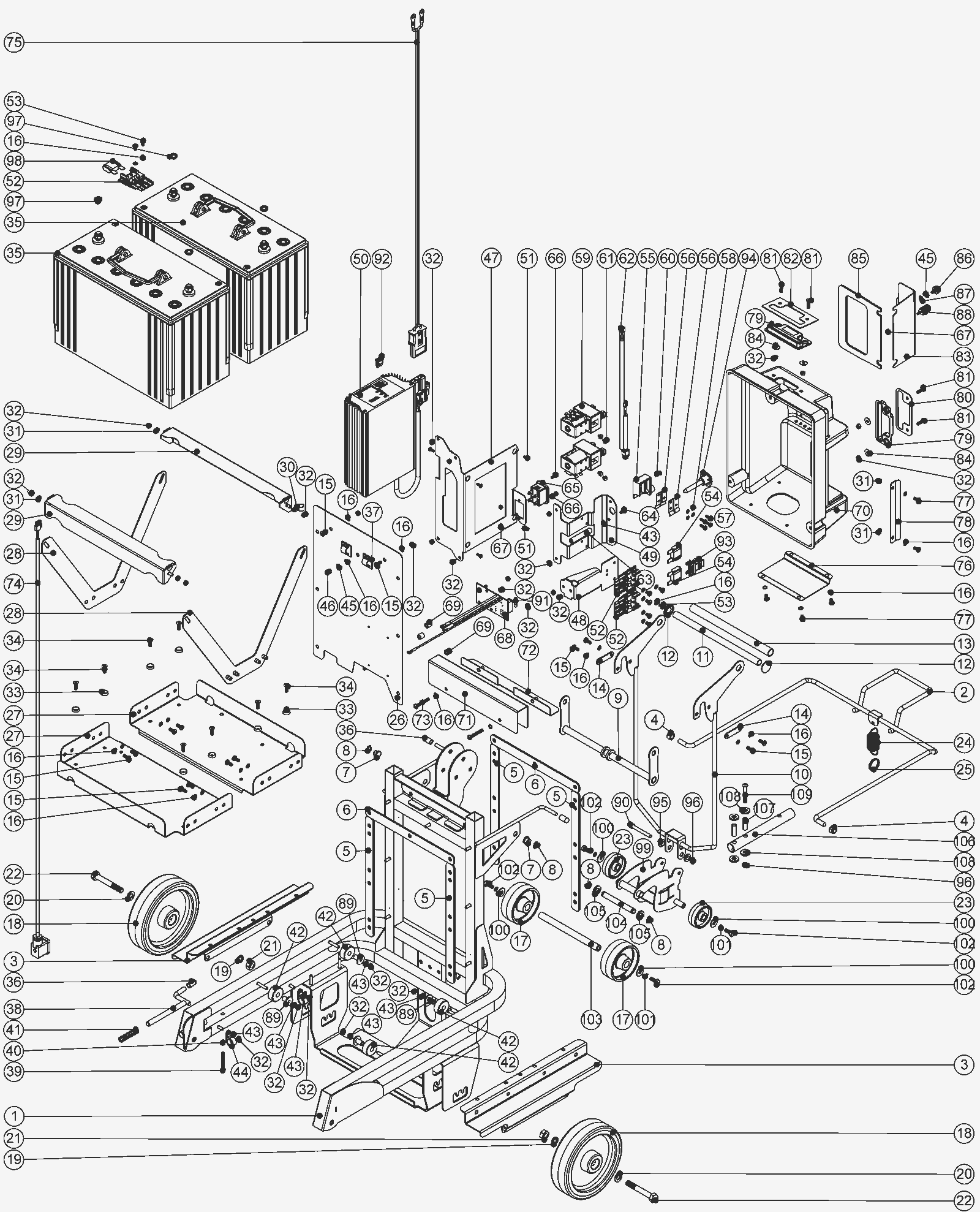

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
220-2124
|
Welded chassis assembly |
1 |
(between 08/2005 and 01/2010) |
|
1b |
220-2116
|
Welded chassis assembly |
1 |
(between 02/2005 and 07/2005) |
|
2 |
220-2111
|
Battery adjustment handle |
1 |
(between 02/2005 and 01/2010) |
|
3 |
220-2119
|
Battery slide bracket |
2 |
(between 02/2005 and 01/2010) |
|
4 |
193-1255
|
Nut nylon |
2 |
(between 02/2005 and 01/2010) |
|
5 |
220-1334
|
Vertical chassis gasket |
4 |
(between 02/2005 and 01/2010) |
|
6 |
220-1335
|
Horizontal chassis gasket |
2 |
(between 02/2005 and 01/2010) |
|
7 |
193-1399
|
Pivot bush |
2 |
(between 02/2005 and 01/2010) |
|
8 |
193-1219
|
Circlip |
4 |
(between 02/2005 and 01/2010) |
|
9 |
220-1344
|
Floor tool pivot link assembly |
1 |
(between 02/2005 and 01/2010) |
|
10 |
220-2109
|
Floor tool lifting frame |
1 |
(between 02/2005 and 01/2010) |
|
11 |
220-1333
|
235mm stainless steel tube |
1 |
(between 02/2005 and 01/2010) |
|
12 |
220-0067
|
Starlock chrome cap |
2 |
(between 02/2005 and 01/2010) |
|
13 |
220-1336
|
218mm nylon tube (black) |
1 |
(between 02/2005 and 01/2010) |
|
14 |
220-1332
|
Fixing bracket |
2 |
(between 02/2005 and 01/2010) |
|
15 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
6 |
(between 02/2005 and 01/2010) |
|
16 |
220-4166
|
Shakeproof washer |
14 |
(between 02/2005 and 01/2010) |
|
17a |
220-0967
|
80mm wheel (white) |
2 |
(between 01/2006 and 01/2010) |
|
17b |
220-0220
|
3 inch wheel |
2 |
(between 02/2005 and 09/2007) |
|
18 |
220-0031
|
Non marking wheel kit (gray) (pkg of 2) |
2 |
(between 02/2005 and 01/2010) |
|
19 |
220-4110
|
Spring washer |
3 |
(between 02/2005 and 01/2010) |
|
20 |
220-4108
|
Washer |
2 |
(between 02/2005 and 01/2010) |
|
21 |
220-4111
|
Nut |
2 |
(between 02/2005 and 01/2010) |
|
22 |
220-4109
|
Bolt M10 x 70mm |
2 |
(between 02/2005 and 01/2010) |
|
23a |
193-1331
|
50mm wheel (black) |
2 |
(between 11/2005 and 01/2010) |
|
23b |
220-0268
|
2 inch wheel |
2 |
(between 02/2005 and 01/2006) |
|
24 |
220-2106
|
Extension spring |
1 |
(between 02/2005 and 01/2010) |
|
25 |
220-2107
|
1 inch split ring stainless steel |
1 |
(between 02/2005 and 01/2010) |
|
26 |
220-2112
|
Backplate with studs |
1 |
(between 02/2005 and 01/2010) |
|
27 |
220-2130
|
Battery tray |
2 |
(between 02/2005 and 01/2010) |
|
28 |
220-2114
|
Stainless steel battery strap |
2 |
(between 02/2005 and 01/2010) |
|
29 |
220-2110
|
Angle bracket assembly |
2 |
(between 02/2005 and 01/2010) |
|
30 |
193-1397
|
P clip |
1 |
(between 07/2007 and 01/2010) |
|
31 |
220-1322
|
Nylon spacer |
4 |
(between 02/2005 and 01/2010) |
|
32 |
193-0163
|
Nut M5 nylon insert stainless steel |
18 |
(between 02/2005 and 01/2010) |
|
33 |
193-0178
|
Screw insulator |
2 |
(between 02/2005 and 01/2010) |
|
34 |
220-1331
|
Screw M5 x 16mm pozi pan head countersunk |
3 |
(between 02/2005 and 01/2010) |
|
35a |
162-6022
|
12V 102Ah gel battery (SNSR) |
2 |
(between 09/2007 and 01/2010) |
|
35b |
162-6022
|
12V 102Ah gel battery (SNSR) |
2 |
(between 02/2005 and 11/2007) |
|
36a |
220-4114
|
Tip end |
2 |
(between 02/2005 and 01/2010) |
|
37 |
220-4119
|
Cable clip |
2 |
(between 02/2005 and 01/2010) |
|
38 |
220-1330
|
Locking bar |
1 |
(between 02/2005 and 01/2010) |
|
39 |
220-1326
|
Screw M5 x 40 pozi pan head |
1 |
(between 02/2005 and 01/2010) |
|
40 |
193-0262
|
Washer M5 single coil stainless steel |
1 |
(between 02/2005 and 01/2010) |
|
41a |
220-1329
|
Stainless steel compression spring |
1 |
(between 01/2006 and 01/2010) |
|
41b |
220-2104
|
Compression spring |
1 |
(between 02/2005 and 11/2007) |
|
42 |
220-2100
|
Roller |
4 |
(between 02/2005 and 01/2010) |
|
43 |
193-0205
|
Washer M5-A stainless steel |
7 |
(between 02/2005 and 01/2010) |
|
44 |
220-4115
|
P clip |
1 |
(between 02/2005 and 01/2010) |
|
45 |
193-0209
|
Nut M5 full stainless steel |
2 |
(between 02/2005 and 01/2010) |
|
46 |
220-0266
|
Nut |
1 |
(between 02/2005 and 01/2010) |
|
47 |
220-2121
|
Charger mounting bracket |
1 |
(between 02/2005 and 01/2010) |
|
48a |
220-2113
|
Fuse holder bracket welded assembly |
1 |
(12/2009) |
|
48b |
220-2120
|
Fuse holder bracket assembly |
1 |
(between 03/2005 and 11/2007) |
|
49 |
220-2118
|
Contact mounting plate |
1 |
(between 02/2005 and 01/2010) |
|
50a |
220-1314
|
230/24V 10amp battery charger |
1 |
(12/2009 |
|
50b |
220-0359
|
115V/24V 10amp onboard charger |
1 |
(12/2009) |
|
50c |
162-6022
|
12V 102Ah gel battery (SNSR) |
1 |
(between 03/2005 and 11/2007) |
|
51 |
220-0952
|
6 x 38 inch screw |
2 |
(between 02/2005 and 01/2010) |
|
52 |
220-0335
|
Fuse holder |
2 |
(between 02/2005 and 01/2010) |
|
53 |
193-1384
|
Screw M5 x 8mm pozi pan head |
1 |
(between 02/2005 and 01/2010) |
|
54 |
193-1383
|
30amp maxi fuse |
2 |
(between 02/2005 and 01/2010) |
|
55 |
220-0459
|
Isolator block assembly |
1 |
(between 02/2005 and 01/2010) |
|
56 |
220-0458
|
Isolator contact |
2 |
(between 02/2005 and 01/2010) |
|
57 |
193-0052
|
Screw M4 x 12mm pozi pan |
1 |
(between 02/2005 and 01/2010) |
|
58 |
220-4117
|
Shakeproof washer |
1 |
(between 02/2005 and 01/2010) |
|
59a |
193-1800
|
Contactor |
2 |
(between 01/2006 and 01/2010) |
|
59b |
193-1800
|
Contactor |
2 |
(between 02/2005 and 11/2007) |
|
61 |
220-4128
|
Screw M4 x 6mm |
1 |
(between 11/2005 and 01/2010 |
|
62 |
193-1810
|
Contactor lead assembly |
1 |
(between 02/2005 and 01/2010) |
|
63 |
220-2102
|
92mm aluminum spacer |
1 |
(between 02/2005 and 01/2010) |
|
64 |
220-4162
|
Screw |
1 |
(between 02/2005 and 01/2010) |
|
65 |
220-2105
|
Hour meter |
1 |
(between 02/2005 and 01/2010) |
|
66 |
220-4164
|
Screw M4 |
1 |
(between 02/2005 and 01/2010) |
|
67 |
193-0176
|
Nut M4 nylon insert stainless steel |
2 |
(between 02/2005 and 01/2010) |
|
68 |
220-0295
|
Control board |
1 |
(between 02/2005 and 01/2010) |
|
69 |
193-1218
|
Nylon spacer |
2 |
(between 02/2005 and 01/2010) |
|
70 |
220-2108
|
Processed enclosure box |
1 |
(between 02/2005 and 01/2010) |
|
71 |
220-1328
|
Cover plate |
1 |
(between 02/2005 and 01/2010) |
|
72 |
220-1325
|
Splash guard |
1 |
(between 02/2005 and 01/2010) |
|
73 |
193-1488
|
Screw M5 x 35mm pan head pozi stainless steel |
1 |
(between 02/2005 and 01/2010) |
|
74 |
220-1302
|
Solenoid lead assembly |
1 |
(between 02/2005 and 01/2010) |
|
75 |
220-2117
|
DC charging lead |
1 |
(between 02/2005 and 01/2010) |
|
76 |
220-1324
|
Exhaust cover plate |
1 |
(between 02/2005 and 01/2010) |
|
77 |
193-0198
|
Screw M5 x 10mm pan head stainless steel |
2 |
(between 02/2005 and 01/2010) |
|
78a |
220-1323
|
Fuse cover retaining plate |
1 |
(between 02/2005 and 01/2010) |
|
78b |
220-2109
|
Floor tool lifting frame |
1 |
(between 02/2005 and 11/2007) |
|
79 |
220-1321
|
Lens molding |
2 |
(between 02/2005 and 01/2010) |
|
80 |
220-2123
|
Lens cover plate |
1 |
(12/2009) |
|
81 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
4 |
(between 02/2005 and 01/2010) |
|
82 |
220-1309
|
Lens cover plate |
1 |
(between 02/2005 and 01/2010) |
|
83 |
220-1320
|
Fuse cover plate |
1 |
(between 02/2005 and 01/2010) |
|
84 |
193-0264
|
Washer M5-G stainless steel |
2 |
(between 03/2005 and 01/2010) |
|
84b |
220-2103
|
Washer M5 nylon |
1 |
(between 02/2005 and 05/2005) |
|
85 |
220-1318
|
Fuse cover gasket |
1 |
(between 02/2005 and 01/2010) |
|
86 |
220-1319
|
Knob M5 knurled |
1 |
(between 02/2005 and 01/2010) |
|
87 |
220-1316
|
Washer M5 retaining |
1 |
(between 02/2005 and 01/2010) |
|
88 |
220-1317
|
Knob |
1 |
(between 02/2005 and 01/2010) |
|
89 |
220-2101
|
Roller spacer |
3 |
(between 03/2005 and 01/2010) |
|
90 |
999-1950
|
Bolt M6-1 x 50mm carriage stainless steel |
1 |
(between 06/2006 and 01/2010) |
|
91 |
193-1814
|
2amp 20mm quick blow fuse |
1 |
(between 05/2005 and 01/2010) |
|
92 |
220-1315
|
20amp fuse |
1 |
(between 05/2005 and 01/2010) |
|
93 |
193-1813
|
Maxi fuse puller |
1 |
(between 05/2005 and 01/2010) |
|
94 |
193-0312
|
Isolator knob |
1 |
(between 01/2006 and 01/2010) |
|
95 |
220-0090
|
Screw insulator |
1 |
(between 11/2005 and 01/2010) |
|
96 |
193-0139
|
Nut M6 nylon insert stainless steel |
2 |
(between 02/2005 and 01/2010) |
|
97 |
193-1604
|
Washer M10 single coil stainless steel |
2 |
(between 09/2007 and 01/2010) |
|
98 |
220-0333
|
70amp fuse |
1 |
(12/2009) |
|
99a |
220-1312
|
Floor tool connector |
1 |
(12/2009) |
|
99b |
220-2115
|
Welded floor tool connector |
1 |
(between 06/2006 and 09/2007) |
|
99c |
220-0337
|
Floor tool connector assembly |
1 |
(between 02/2005 and 11/2007) |
|
100 |
220-4090
|
Washer |
4 |
(12/2009) |
|
101 |
193-1807
|
Washer |
2 |
(12/2009) |
|
102 |
193-0183
|
Bolt M6 x 16mm hex head stainless steel |
4 |
(12/2009) |
|
103a |
220-1313
|
Tapped rear axle |
1 |
(12/2009) |
|
103b |
220-2129
|
Stainless steel tube |
1 |
(between 11/2005 and 11/2007) |
|
104a |
220-1311
|
Chariot pivot tube |
1 |
(12/2009) |
|
104b |
220-2128
|
90mm long x 0.375 stainless steel bar |
1 |
(between 02/2005 and 11/2007) |
|
105a |
193-1631
|
Nylon washer |
2 |
(12/2009) |
|
105b |
220-4107
|
Spacer |
1 |
(between 02/2005 and 11/2007) |
|
106a |
220-1310
|
Floor tool pivot tube |
1 |
(12/2009) |
|
106b |
220-0298
|
Pivot boss |
1 |
(between 02/2005 and 11/2007) |
|
107 |
193-1441
|
Spiro spacer |
1 |
(12/2009) |
|
108 |
193-1443
|
Slide nylon spacer |
2 |
(12/2009) |
|
109 |
193-0215
|
Bolt M6 x 40mm socket button head |
1 |
(12/2009) |
|
N/S |
220-0344
|
3/8 inch stainless steel cap |
2 |
(3/8 inch stainless steel cap) (between 03/2005 and 11/2007) |
|
N/S |
220-4105
|
Screw M6 x 35mm |
1 |
(m6 x 35mm long stainless steel pozi pan screw) (between 03/2005 and 11/2007) |
|
N/S |
220-2125
|
Battery connector bracket |
1 |
(battery connector bracket) (08/2007) |
|
N/S |
193-1838
|
Positive battery terminal converter |
2 |
(positive battery terminal converter) (between 03/2005 and 11/2007) |
|
N/S |
193-1839
|
Negative battery terminal convertor |
2 |
(negative battery terminal converter) (between 03/2005 and 11/2007) |
|
N/S |
220-2122
|
Dump hose hook |
1 |
(dump hose hook) (between 02/2005 and 11/2007) |
|
N/S |
220-2126
|
Tube |
1 |
(145mm long x 1/2 inch diameter x 18g stainless steel tube) (between 02/2005 and 11/2007) |
|
N/S |
220-4126
|
Screw M4 x 8mm |
1 |
(m4 x 8mm long pozi pan stainless steel taptite screw) (between 02/2005 and 03/2006) |
|
N/S |
220-2127
|
Tapped rear axle |
1 |
(37mm long modified end tip) (between 02/2005 and 01/2006) |
|
