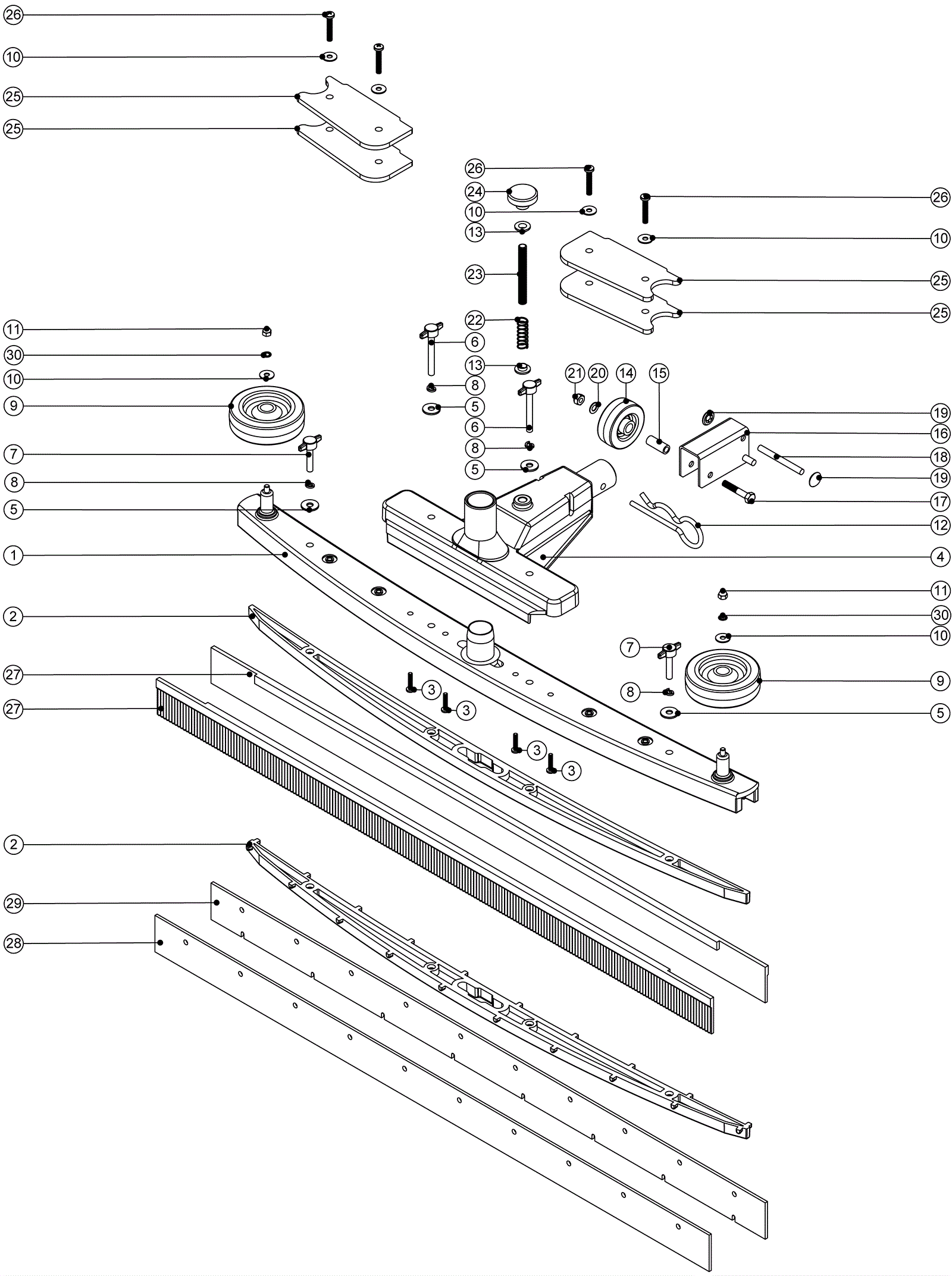

Squeegee Assembly before 10/2009

#PartDescription ReqNotesAvailability
1 220-4087 Top moulding 1
2a 220-4088 Bottom moulding 1
2b 220-1510 Bottom molding with lugs 1 (between 09/2004 and 07/2007)
3 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 4 (between 02/2004 and 07/2007)
4 220-0251 Center moulding plus inserts 1
5 220-4090 Washer 4
6 220-4091 Knob assembly 2
7 220-0331 T-knob 2
8a 220-0220 3 inch wheel 2 (06/2007)
8b 220-0220 3 inch wheel 1 (between 08/2001 and 03/2007)
9 193-0264 Washer M5-G stainless steel 6
10 220-4086 Dome nut 2
11 220-0297 Retaining pin 1
12 220-0090 Screw insulator 2
13 220-0268 2 inch wheel 1
14 220-4092 Wheel insert 1
15 220-4093 Height adjustment bracket 1
16 220-4099 Bolt M6 x 35 1
17 220-4095 Bar 1
18 220-4097 Starlock washer and cap 2
19 193-0225 Washer M6-B 1
20 193-0139 Nut M6 nylon insert stainless steel 1
21 220-0087 Compression spring 1
22 220-0086 Height adjustment shaft 1
23 220-0089 Adjustment knob 1
24 220-4096 Weight 4
25 220-4098 Screw M5 x 30mm 4 (between 02/2004 and 07/2007)
26a 193-0002 Squeegee blade rubber 2 (between 06/2002 and 07/2007)
26b 220-0081 Squeegee blades 33 inch (sold individually) 1 (between 08/2001 and 04/2004)
26c 220-0052 Squeegee blade 29 inch 1 (09/2001)
27 193-0124 Squeegee blade rear polyurethane 1 (between 09/2004 and 07/2007)
28 193-0125 Squeegee blade front polyurethane 1 (between 09/2004 and 07/2007)
