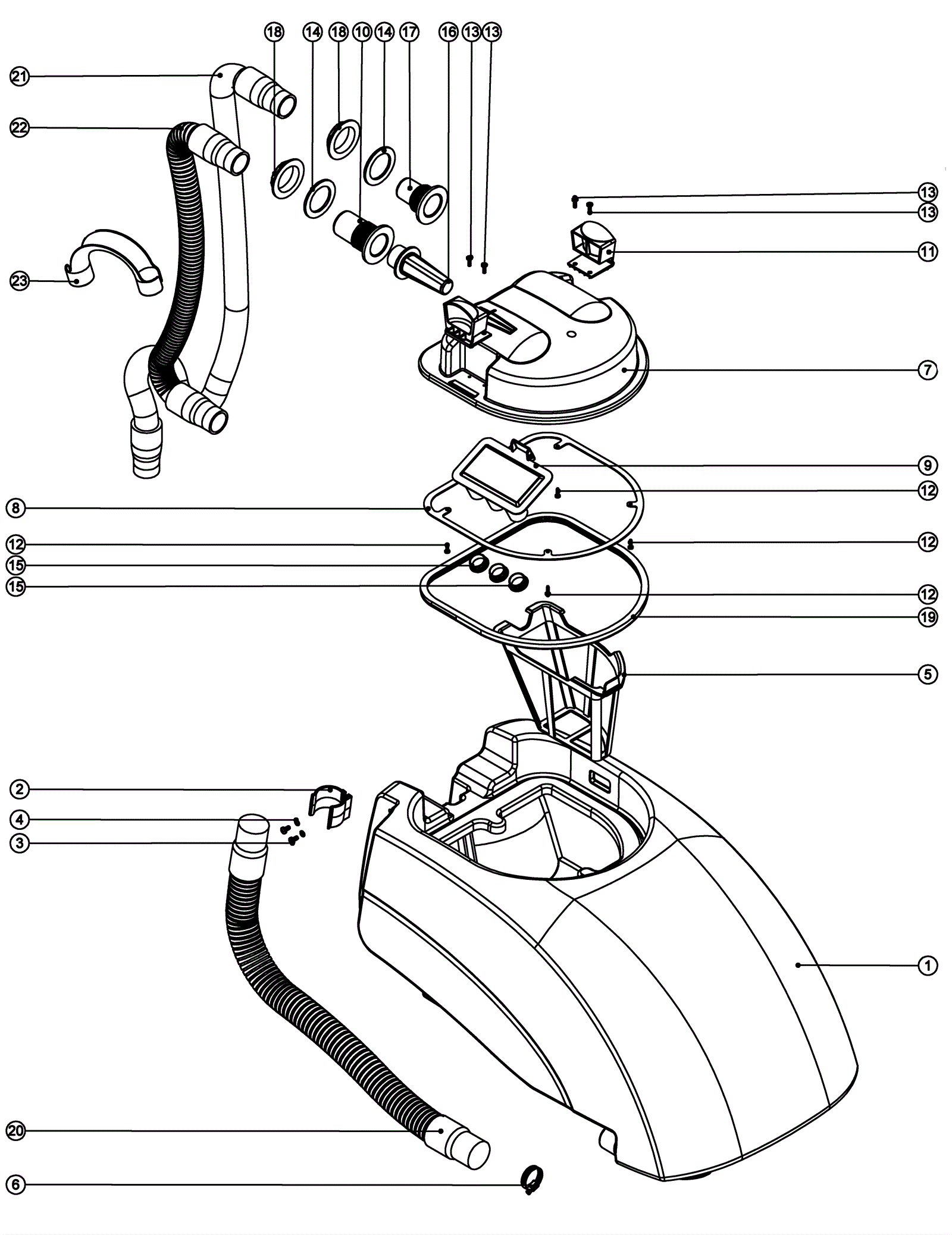

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
193-1684
|
Hose clip molding |
1 |
|
|
3 |
193-0198
|
Screw M5 x 10mm pan head stainless steel |
2 |
|
|
5 |
220-0334
|
Filter basket |
1 |
|
|
7 |
220-1012
|
Seperator moulding |
1 |
|
|
8 |
220-1013
|
Filter gasket ring |
1 |
|
|
9 |
220-0153
|
Separator float moulding |
1 |
|
|
10 |
193-1692
|
Hose connector |
1 |
|
|
12 |
193-1968
|
Screw |
4 |
|
|
15 |
193-0283
|
Tube end plug |
2 |
|
|
16 |
193-1204
|
Barrel filter |
1 |
|
|
19 |
220-1014
|
New separator gasket |
1 |
|
|
20 |
220-0340
|
Stretch hose |
1 |
|
|
22 |
220-4082
|
Vacuum hose |
1 |
|
|
23 |
193-1687
|
Hose hook |
1 |
|
|
