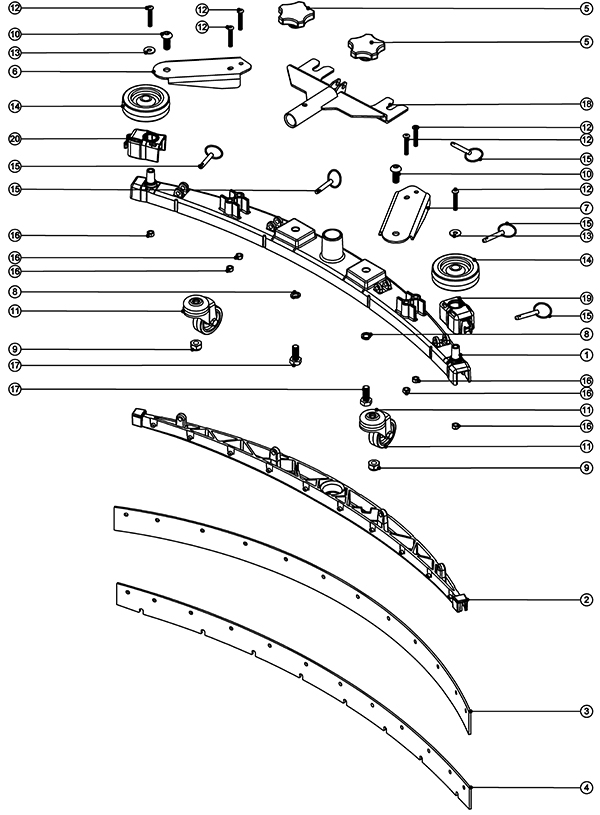

| # | Part | Description |
Req | Notes | Availability |
|---|
1b |
193-1575
|
750mm aluminum casting |
1 |
|
|
3a |
193-0095
|
Squeegee blade kit 26 inch |
1 |
|
|
3d |
193-0294
|
Squeegee blade kit |
1 |
|
|
4b |
193-0095
|
Squeegee blade kit 26 inch |
1 |
|
|
4c |
193-0294
|
Squeegee blade kit |
1 |
|
|
7 |
220-1010
|
Left hand wide angle caster plate |
1 |
|
|
8 |
193-1604
|
Washer M10 single coil stainless steel |
2 |
|
|
9 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
10 |
193-1438
|
Screw M10 x 25mm button head socket stainless steel |
2 |
|
|
11 |
193-1571
|
50mm caster |
2 |
|
|
12 |
999-1953
|
Screw M6-1 x 35mm socket stainless steel |
6 |
|
|
13 |
220-4090
|
Washer |
2 |
|
|
16 |
193-1520
|
M6 nyloc half nut |
6 |
|
|
18 |
220-0389
|
Bracket |
1 |
|
|
