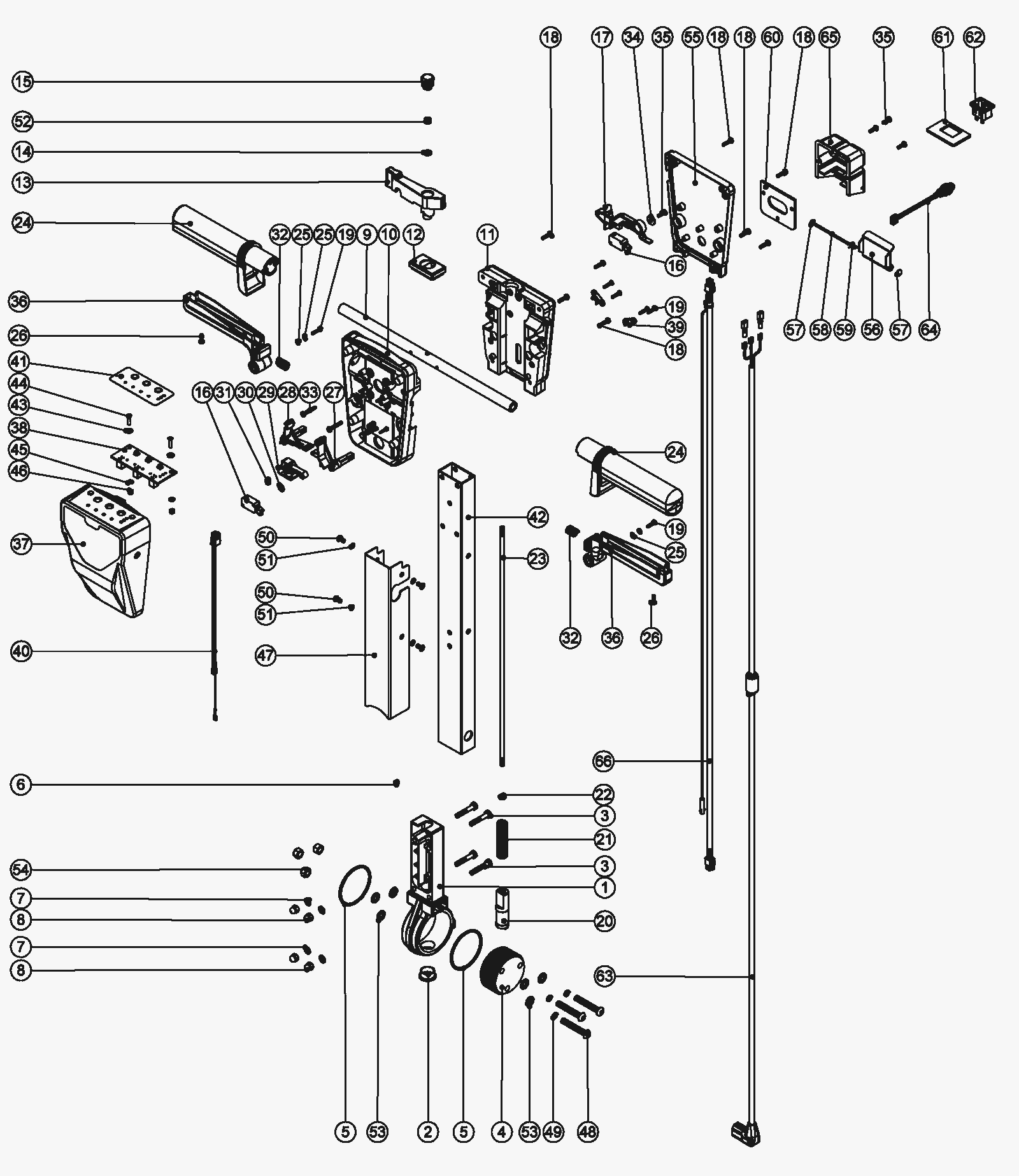

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-0995
|
Processed handle casting |
1 |
|
|
4 |
220-0175
|
Adjustment gear |
1 |
|
|
6 |
220-0195
|
Plug |
1 |
|
|
9 |
220-0182
|
Tube |
1 |
|
|
12 |
220-0197
|
Handle plug |
1 |
|
|
14 |
193-0219
|
Washer M6 nylon |
1 |
|
|
16 |
220-0208
|
Snap switch |
1 |
|
|
17 |
220-0196
|
Interlock lever |
1 |
|
|
18 |
220-0109
|
Screw |
1 |
|
|
19 |
193-0028
|
Plastic screw |
1 |
|
|
21 |
220-0178
|
Spring |
1 |
|
|
22 |
193-0223
|
Half nut M6 |
1 |
|
|
26 |
193-0218
|
Screw 8 x 1/2 inch pan head self tap |
1 |
|
|
27 |
220-0190
|
Left hand switch lever |
1 |
|
|
28 |
220-0191
|
Right hand switch lever |
1 |
|
|
29 |
220-0192
|
Center switch lever |
1 |
|
|
30 |
220-0209
|
4mm spirefix |
1 |
|
|
31 |
220-0211
|
Switch compression spring |
1 |
|
|
32 |
220-0210
|
Trigger compression spring |
1 |
|
|
35 |
193-1761
|
Screw |
3 |
|
|
38 |
220-1000
|
PCB control kit |
1 |
|
|
39 |
193-0226
|
Handle cable clamp |
1 |
|
|
40 |
193-0236
|
3 core handle loom |
1 |
|
|
42 |
220-1002
|
430MM handle tube |
1 |
|
|
45 |
193-0194
|
Washer M4-A stainless steel |
1 |
|
|
46 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
1 |
|
|
48 |
193-0216
|
Bolt M8 x 50mm socket button head stainless steel |
1 |
|
|
50 |
193-1267
|
Button head screw |
1 |
|
|
52 |
193-0139
|
Nut M6 nylon insert stainless steel |
1 |
|
|
57 |
193-1419
|
Starlock cap |
1 |
|
|
61 |
193-1415
|
Socket mounting plate |
1 |
|
|
63 |
220-1006
|
AC charging lead assembly |
1 |
|
|
66 |
220-1007
|
4 core loom assembly |
1 |
|
|
