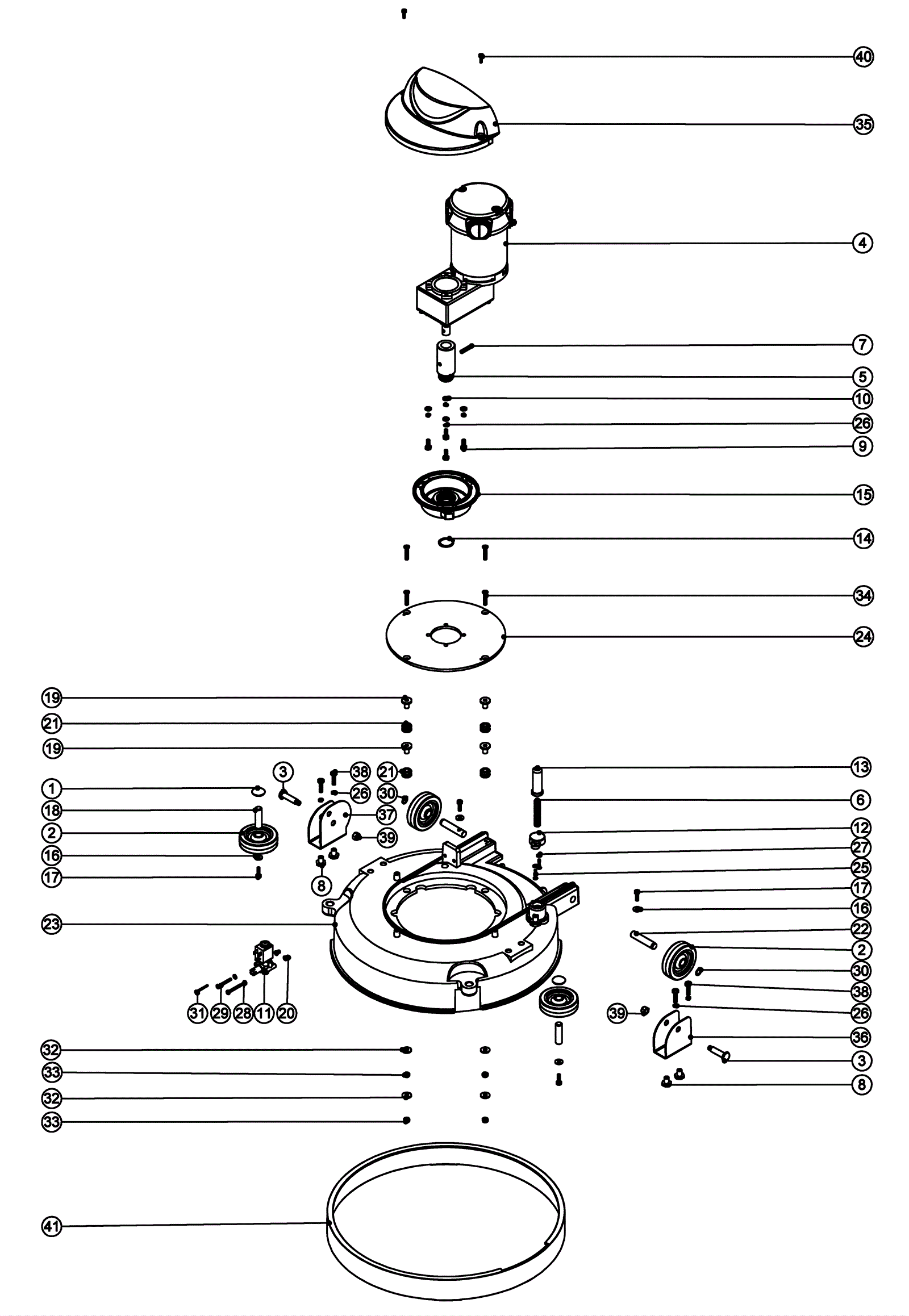

TTB1120 Battery Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 220-0067 Starlock chrome cap $5.92 1 usually ships 13-19 days
2 220-0220 3 inch wheel $39.85 1 usually ships 13-19 days
3 220-0247 Pivot pin $21.86 1 usually ships 1-5 days
4 220-0634 Brush drive motor $1,994.43 1 usually ships 13-19 days
5 220-0986 Drive shaft $159.96 1 usually ships 13-19 days
6 220-0231 Compression spring $10.76 1 usually ships 1-5 days
7 193-1380 6mm roll pin $3.38 1 usually ships 13-19 days
8 220-0165 Bracket spacer $52.36 2 usually ships 1-5 days
9 193-0183 Bolt M6 x 16mm hex head stainless steel $4.09 4 usually ships 8-15 days
10 193-0149 Washer M6-A stainless steel $4.01 1 ships same day
11 220-0114 24V solenoid valve $199.18 1 usually ships 13-19 days
12 N/A Not available Call for price 1 usually ships 3-26 days
13 220-0230 Plunger $90.71 1 usually ships 1-5 days
14 220-0159 26mm external clip $30.17 1 usually ships 1-5 days
15 220-0160 Chuck $277.02 1 usually ships 1-5 days
16 220-4157 Washer $3.07 1 usually ships 13-19 days
17 220-4159 Screw M5 x 16mm $3.84 1 usually ships 13-19 days
18 220-0221 Wheel pin $40.34 1 usually ships 1-5 days
19 220-0245 Motor mounting spacer $3.88 4 usually ships 1-5 days
20 220-4145 Insert $3.07 1 usually ships 13-19 days
21 220-0244 Grommet $5.83 4 usually ships 1-5 days
22 220-0242 Rear wheel pin $29.50 1 usually ships 1-5 days
23 220-0219 Base assembly $868.65 1 usually ships 1-5 days
24 220-0988 Motor adapter plate $135.17 1 usually ships 13-19 days
25 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
26 220-4160 Single coil washer $3.99 1 usually ships 13-19 days
27 193-0205 Washer M5-A stainless steel $4.09 1 usually ships 13-19 days
28 193-0221 Washer M4-A $4.44 1 usually ships 1-5 days
29 193-0193 Screw M4 x 35mm pan head stainless steel $4.09 1 usually ships 1-5 days
30 220-0243 12mm external circlip $4.54 1 usually ships 13-19 days
31 220-0989 Screw M3 $5.50 1 usually ships 13-19 days
32 220-0168 Washer $3.07 2 usually ships 1-5 days
33 193-0139 Nut M6 nylon insert stainless steel $5.50 2 ships same day
34 220-0990 Screw M6 x 30mm $3.29 1 usually ships 13-19 days
35 220-0992 Splash skirt $39.02 1 usually ships 13-19 days
36 220-1029 Right hand deck mount Call for price 1 usually ships 13-19 days
37 220-0991 Deck mount bracket $28.31 1 usually ships 13-19 days
38 220-0163 Screw M6 $4.00 4 usually ships 1-5 days
39 193-1255 Nut nylon $3.67 1 usually ships 13-19 days
40 193-1406 Screw M4 x 16mm pozi pan $3.10 2 usually ships 13-19 days
41 220-0991 Deck mount bracket $28.31 1 usually ships 13-19 days
