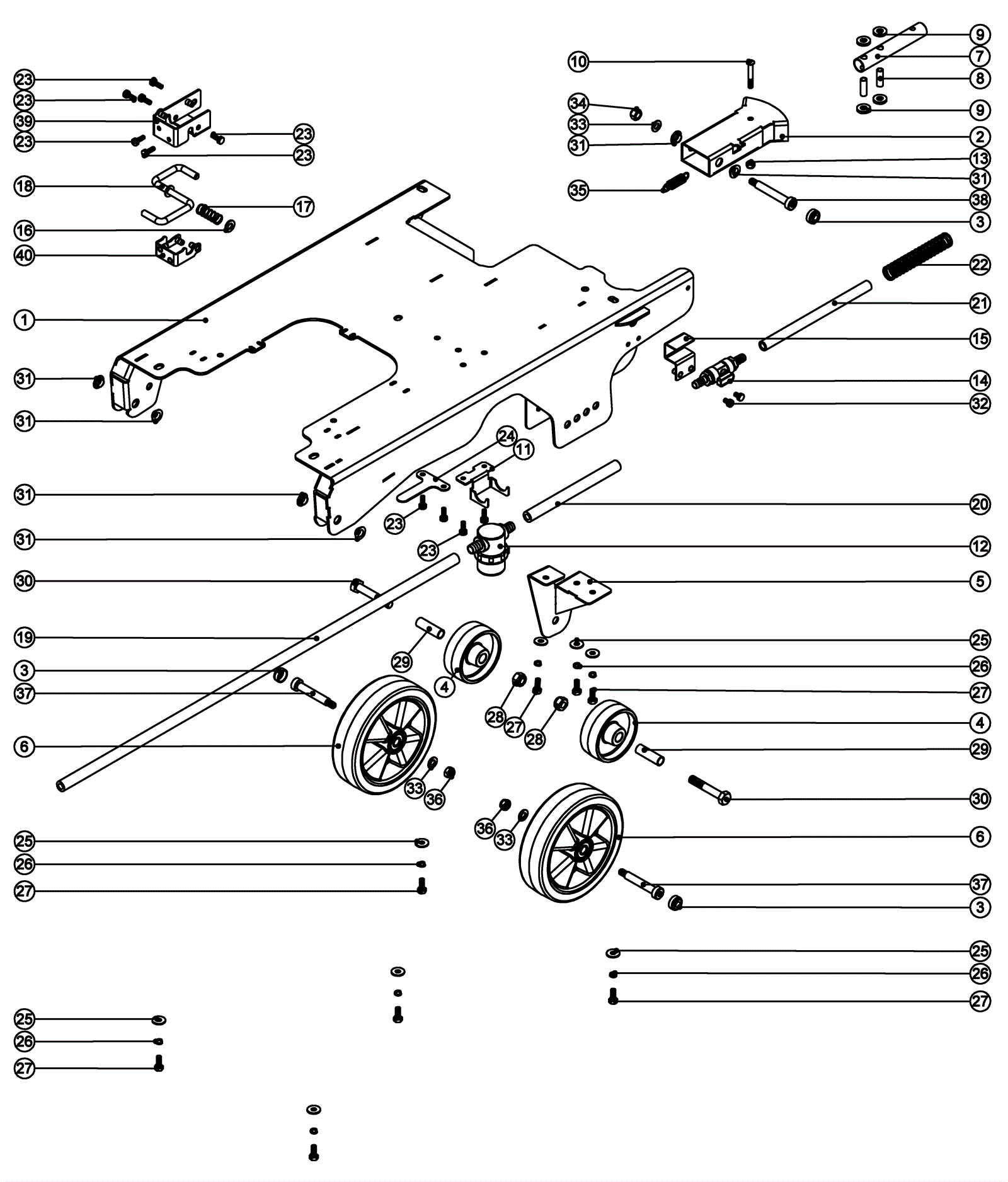

TTB1120 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 220-1024 Chassis assembly Call for price 1 usually ships 7-21 days
2 220-0965 Squeegee mount weldment assembly $46.65 1 usually ships 7-21 days
3 220-0966 Cover shoulder bolt $1.25 2 usually ships 7-21 days
4 220-0967 80mm wheel (white) $25.33 2 usually ships 7-21 days
5 220-1025 Transport wheel bracket assembly Call for price 1 usually ships 7-21 days
6 220-0968 160mm wheel with polyurethane tire $153.70 2 usually ships 7-21 days
7 220-0969 Floor tool pivot tube $14.33 1 usually ships 7-21 days
8 193-1441 Spiro spacer $5.30 1 ships same day
9 193-1443 Slide nylon spacer $2.69 2 usually ships 7-21 days
10 193-0215 Bolt M6 x 40mm socket button head $2.44 1 usually ships 1-5 days
11 220-0970 Filter bracket $3.60 1 usually ships 7-21 days
12 220-0971 Extended strainer $58.99 1 usually ships 7-21 days
13 193-1520 M6 nyloc half nut Call for price 1 usually ships 7-21 days
14 220-0972 Hosetail ball valve assembly $77.73 1 usually ships 7-21 days
15 220-0972 Hosetail ball valve assembly $77.73 1 usually ships 7-21 days
16 220-0164 Washer $2.40 1 usually ships 7-21 days
17 220-0974 Deck lock spring $7.70 1 usually ships 7-21 days
18 220-0975 Deck lock bar weld assembly $9.13 1 usually ships 7-21 days
19 220-0976 8mm silicon tube $58.44 1 usually ships 7-21 days
20 220-0977 Silicon tube 170 x 8mm $41.44 1 usually ships 7-21 days
21 220-0978 Braided pvc hose $13.48 1 usually ships 7-21 days
22 193-1285 Compression spring $12.60 1 usually ships 7-21 days
23 220-0115 Screw $2.42 6 usually ships 1-5 days
24 220-1026 Silencer clamp Call for price 1 usually ships 7-21 days
25 220-4090 Washer $2.66 4 usually ships 7-21 days
26 193-1807 Washer $2.50 4 usually ships 7-21 days
27 193-1418 Torsion spring $8.60 4 usually ships 7-21 days
28 220-4147 Nut M10 $9.68 2 usually ships 7-21 days
29 220-0979 1/2 x 18G stainless steel tube $2.37 2 usually ships 7-21 days
30 193-1882 Bolt $3.07 1 usually ships 7-21 days
32 220-4162 Screw $2.42 1 usually ships 7-21 days
33 193-0182 Washer M8-A stainless steel $2.59 3 usually ships 1-5 days
34 193-1255 Nut nylon $2.88 1 usually ships 7-21 days
35 220-0981 Floor tool spring $6.77 1 usually ships 7-21 days
36 220-0982 Nut M8 nyloc $2.59 2 usually ships 7-21 days
37 220-0983 Hex socket shoulder bolt $6.06 1 usually ships 7-21 days
38 220-1027 Bolt M8-10 x 60mm shoulder $6.51 1 usually ships 7-21 days
39 220-0984 Deck lock bar guide $22.90 1 usually ships 7-21 days
40 220-0985 Lock bar clamp $29.76 1 usually ships 7-21 days
