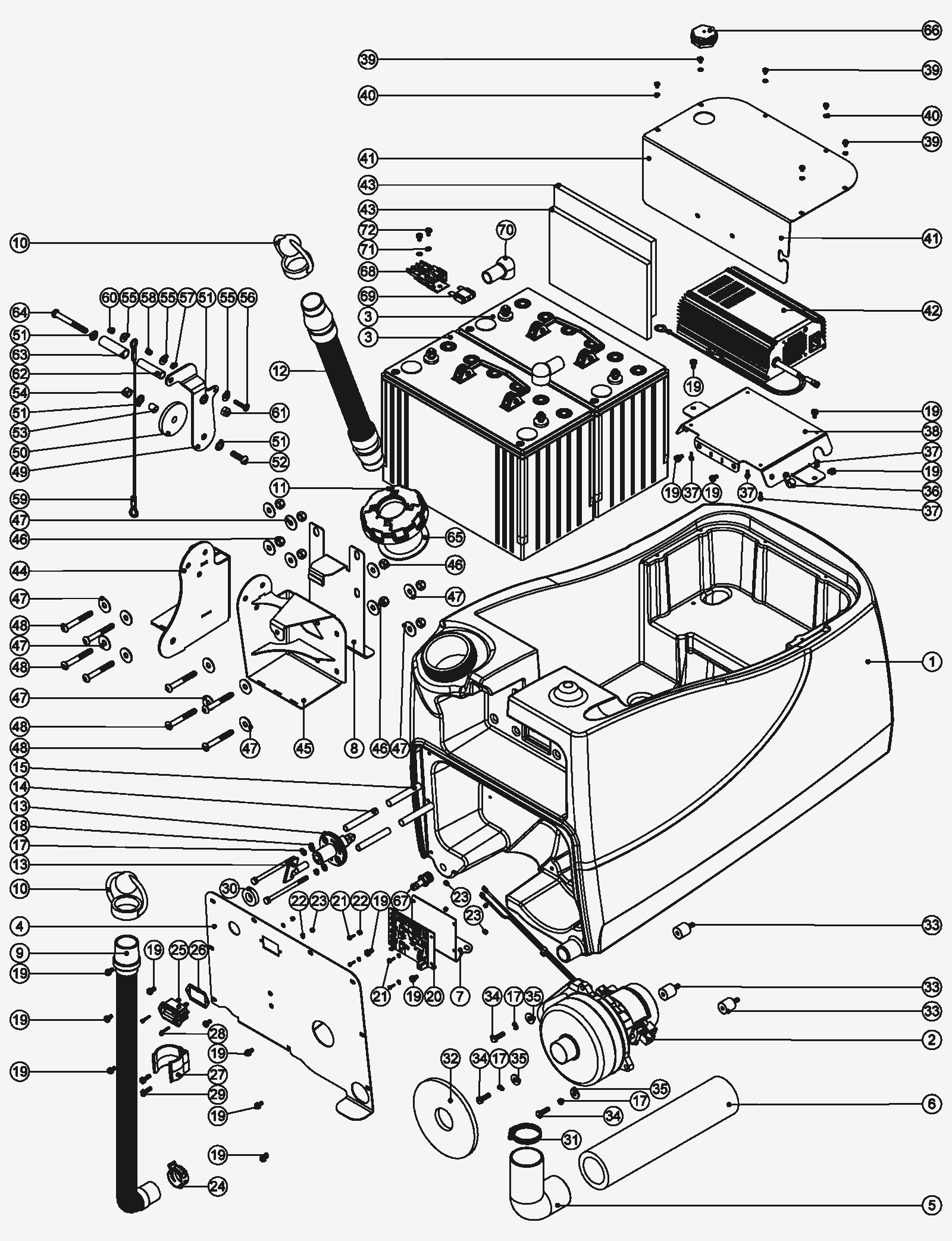

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
162-6022
|
12V 102Ah gel battery (SNSR) |
2 |
|
|
5 |
220-0947
|
Dip molded elbow |
1 |
|
|
6 |
220-0948
|
Silencer foam |
1 |
|
|
7 |
220-1016
|
Power electronics mount bracket |
1 |
|
|
8 |
220-1017
|
Wire cover plate |
1 |
|
|
11 |
220-0949
|
Filler cap |
1 |
|
|
13 |
193-1796
|
Master key switch and key |
2 |
|
|
14 |
220-0950
|
Hour meter gasket |
1 |
|
|
15 |
220-1018
|
70 x 10mm pvc sleeving |
1 |
|
|
17 |
193-1807
|
Washer |
4 |
|
|
18 |
193-0225
|
Washer M6-B |
1 |
|
|
20 |
220-1000
|
PCB control kit |
1 |
|
|
21 |
999-1222
|
Screw M3-.5 x 10mm pan head stainless steel |
3 |
|
|
22 |
193-0167
|
Washer M3 |
2 |
|
|
23 |
193-0160
|
Nut M3 nylon insert |
3 |
|
|
24 |
193-0268
|
Tension clip |
1 |
|
|
25 |
193-1640
|
Hour meter |
1 |
|
|
27 |
193-1684
|
Hose clip molding |
1 |
|
|
30 |
220-0951
|
Isolator washer gasket |
1 |
|
|
31 |
193-1112
|
Hose clamp stainless steel |
1 |
|
|
32 |
193-0192
|
Vacuum motor gasket |
1 |
|
|
33 |
220-1019
|
M6 AV mount |
3 |
|
|
34 |
193-1029
|
Screw M6 x 20mm hex head |
3 |
|
|
36 |
193-1397
|
P clip |
1 |
|
|
37 |
220-0952
|
6 x 38 inch screw |
4 |
|
|
38 |
220-1020
|
Charger plate |
1 |
|
|
39 |
220-0332
|
Screw M4 x 8mm pozi pan head stainless steel |
3 |
|
|
41 |
220-0953
|
Charger cover plate |
2 |
|
|
45 |
220-0956
|
Right hand handle mount |
1 |
|
|
46 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
|
47 |
999-9097
|
Washer M8 flat stainless steel |
7 |
|
|
49 |
220-0957
|
Lifting handle (OBSOLETE) |
1 |
|
|
50 |
220-1022
|
Squeegee lift washer |
1 |
|
|
51 |
193-0182
|
Washer M8-A stainless steel |
4 |
|
|
52 |
220-0958
|
Bolt M8 x 25mm socket head |
1 |
|
|
53 |
220-1023
|
Floor tool lift brush |
1 |
|
|
54 |
193-1255
|
Nut nylon |
1 |
|
|
57 |
193-0209
|
Nut M5 full stainless steel |
1 |
|
|
58 |
193-1886
|
Spacer |
1 |
|
|
60 |
193-0163
|
Nut M5 nylon insert stainless steel |
1 |
|
|
61 |
220-4158
|
Dome nut |
1 |
|
|
62 |
193-1681
|
Vacuum motor spacer |
1 |
|
|
64 |
193-1507
|
Bolt M8 x 70mm button head |
1 |
|
|
65 |
220-0961
|
Filler cap sealing ring |
1 |
|
|
68 |
220-0335
|
Fuse holder |
1 |
|
|
71 |
220-4166
|
Shakeproof washer |
1 |
|
|
