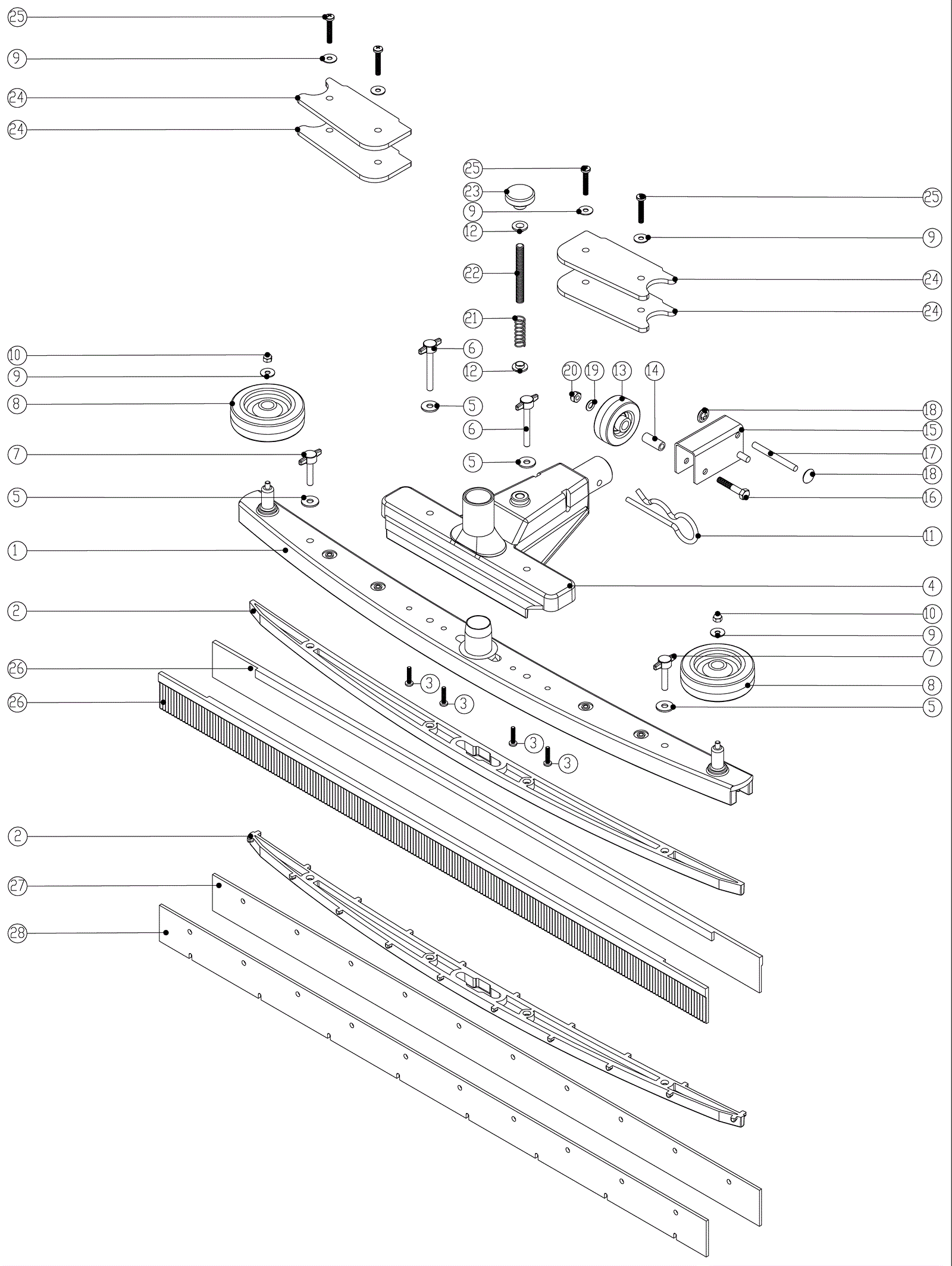

TT4550 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1a 220-4087 Top moulding $149.01 (TT3450) usually ships 7-21 days
1b 220-0354 Top molding $180.32 (TT4550) ships same day
2a 220-4088 Bottom moulding $149.01 (TT3450) (TT usually ships 7-21 days
2b 220-4089 Bottom moulding $149.01 (TT4550) usually ships 7-21 days
3 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 ships same day
4 220-0251 Center moulding plus inserts $204.90 usually ships 7-21 days
5 220-4090 Washer $2.93 usually ships 7-21 days
6 220-4091 Knob assembly $19.62 usually ships 7-21 days
7 220-0331 T-knob $19.62 usually ships 7-21 days
8 220-0220 3 inch wheel $34.83 usually ships 7-21 days
9 193-0264 Washer M5-G stainless steel $3.89 usually ships 7-21 days
10 220-4086 Dome nut $1.66 usually ships 7-21 days
11 220-0297 Retaining pin $18.27 usually ships 7-21 days
12 220-0090 Screw insulator $3.73 usually ships 1-5 days
13 220-0268 2 inch wheel $18.78 usually ships 7-21 days
14 220-4092 Wheel insert $12.35 usually ships 7-21 days
15 220-4093 Height adjustment bracket $43.20 usually ships 7-21 days
16 220-4099 Bolt M6 x 35 $2.66 usually ships 7-21 days
17 220-4095 Bar $14.84 usually ships 7-21 days
18 220-4097 Starlock washer and cap $1.38 usually ships 7-21 days
19 193-0225 Washer M6-B $2.66 usually ships 1-5 days
20 193-0139 Nut M6 nylon insert stainless steel $3.96 ships same day
21 220-0087 Compression spring $5.83 usually ships 1-5 days
22 220-0086 Height adjustment shaft $28.63 usually ships 1-5 days
23 220-0089 Adjustment knob $43.73 usually ships 1-5 days
24 220-4096 Weight $43.19 usually ships 7-21 days
25 220-4098 Screw M5 x 30mm $3.77 usually ships 7-21 days
26a 193-0002 Squeegee blade rubber $65.78 (TT3450) usually ships 7-21 days
26b 220-0081 Squeegee blades 33 inch (sold individually) $41.09 (TT4550) ships same day
27a 193-0124 Squeegee blade rear polyurethane $71.68 (TT3450) usually ships 7-21 days
27b 220-0126 Squeegee blade rear $81.21 (TT4550) ships same day
28a N/A Not available Call for price (TT3450) usually ships 3-26 days
28b N/A Not available Call for price (TT4550) usually ships 3-26 days
