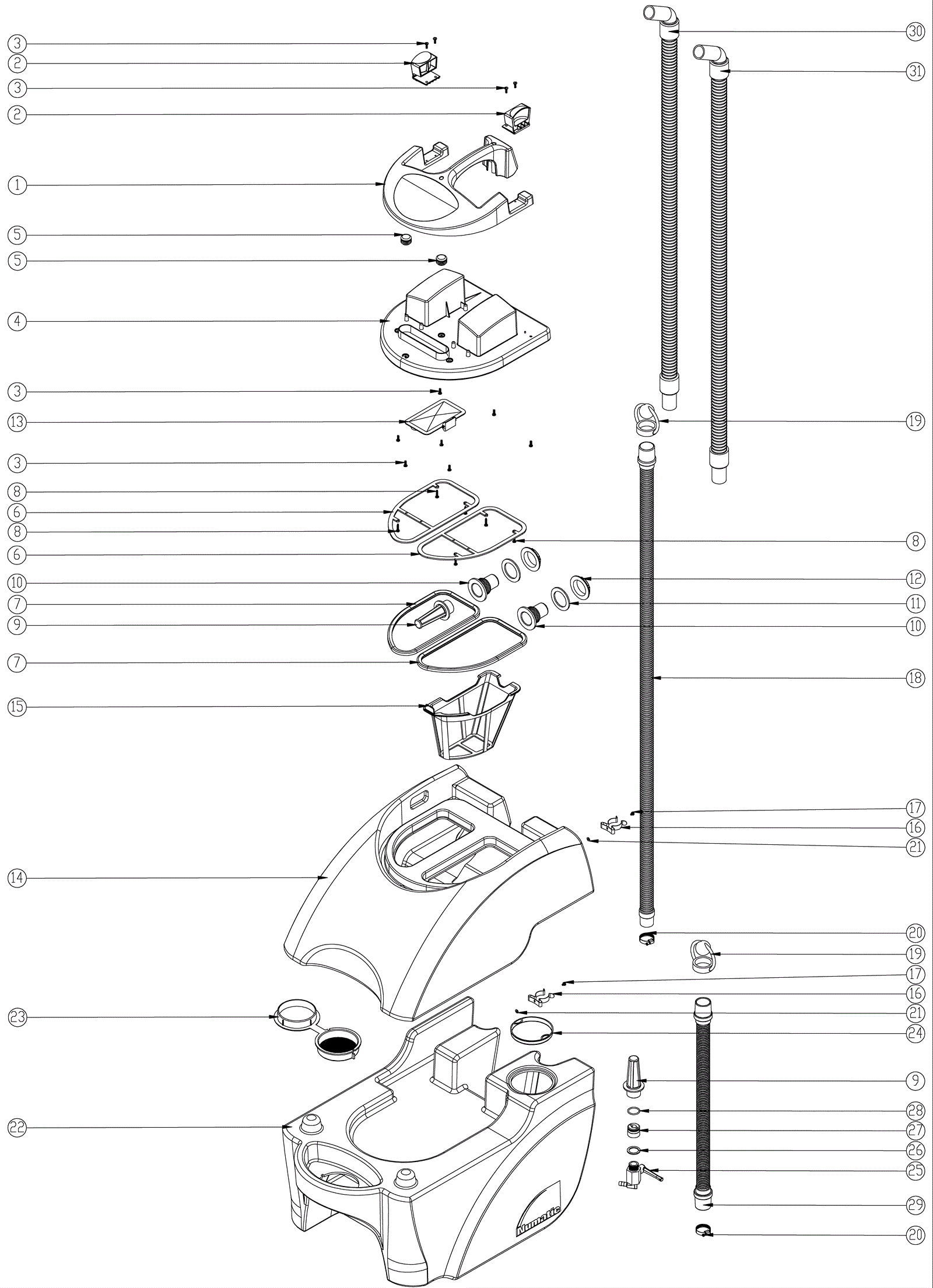

TT4550 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 193-0284 Separtor top $107.80 usually ships 16-24 days
2 193-0129 Clip molding $5.96 usually ships 16-24 days
3 220-4100 Screw #8 $2.77 usually ships 16-24 days
4 193-0092 Seperator molding $98.46 usually ships 16-24 days
5 193-0285 Tube end stop $6.61 usually ships 1-5 days
6 193-0286 Gasket $17.23 usually ships 16-24 days
7 193-0093 Sealing gasket $20.79 usually ships 16-24 days
8 193-0174 Screw #6 x 1/2 inch $1.35 usually ships 16-24 days
9 220-0155 Barrel filter $55.36 usually ships 16-24 days
10 220-0152 Drain hose connector $10.68 usually ships 16-24 days
11 220-0151 Rubber washer $3.81 usually ships 16-24 days
12 220-0150 Moulded nut (black) $4.62 usually ships 1-5 days
13 220-0153 Separator float moulding $3.06 usually ships 16-24 days
14a N/A Not available Call for price (Top tank) (TT3450) usually ships 3-26 days
14b N/A Not available Call for price (Top tank) (TT4550) usually ships 3-26 days
15 220-0334 Filter basket $52.83 usually ships 16-24 days
16 220-0253 Tool clip $32.29 usually ships 16-24 days
17 220-0332 Screw M4 x 8mm pozi pan head stainless steel $5.29 usually ships 1-5 days
18 193-0090 Pump hose $110.58 usually ships 16-24 days
19 220-0073 Hose closure $27.08 usually ships 16-24 days
20 193-0091 Stainless steel jubilee clip $34.46 usually ships 16-24 days
21 193-0194 Washer M4-A stainless steel $3.94 usually ships 1-5 days
22a N/A Not available Call for price (TT3450) usually ships 3-26 days
22b N/A Not available Call for price (TT4550) usually ships 3-26 days
23 193-0289 Solution cap with filter $65.45 usually ships 16-24 days
24 193-0288 Plug $6.11 usually ships 16-24 days
25 220-0158 Ball valve $149.80 usually ships 16-24 days
26 220-4101 Sealing gasket $7.46 usually ships 16-24 days
27 220-4102 Filter connector $46.05 usually ships 16-24 days
28 220-4103 O-ring $8.09 usually ships 16-24 days
29 220-0130 Dump hose assembly $30.46 usually ships 16-24 days
30 220-0250 Vacuum hose $117.07 usually ships 16-24 days
31 220-0051 Squeegee vac hose $116.86 usually ships 16-24 days
