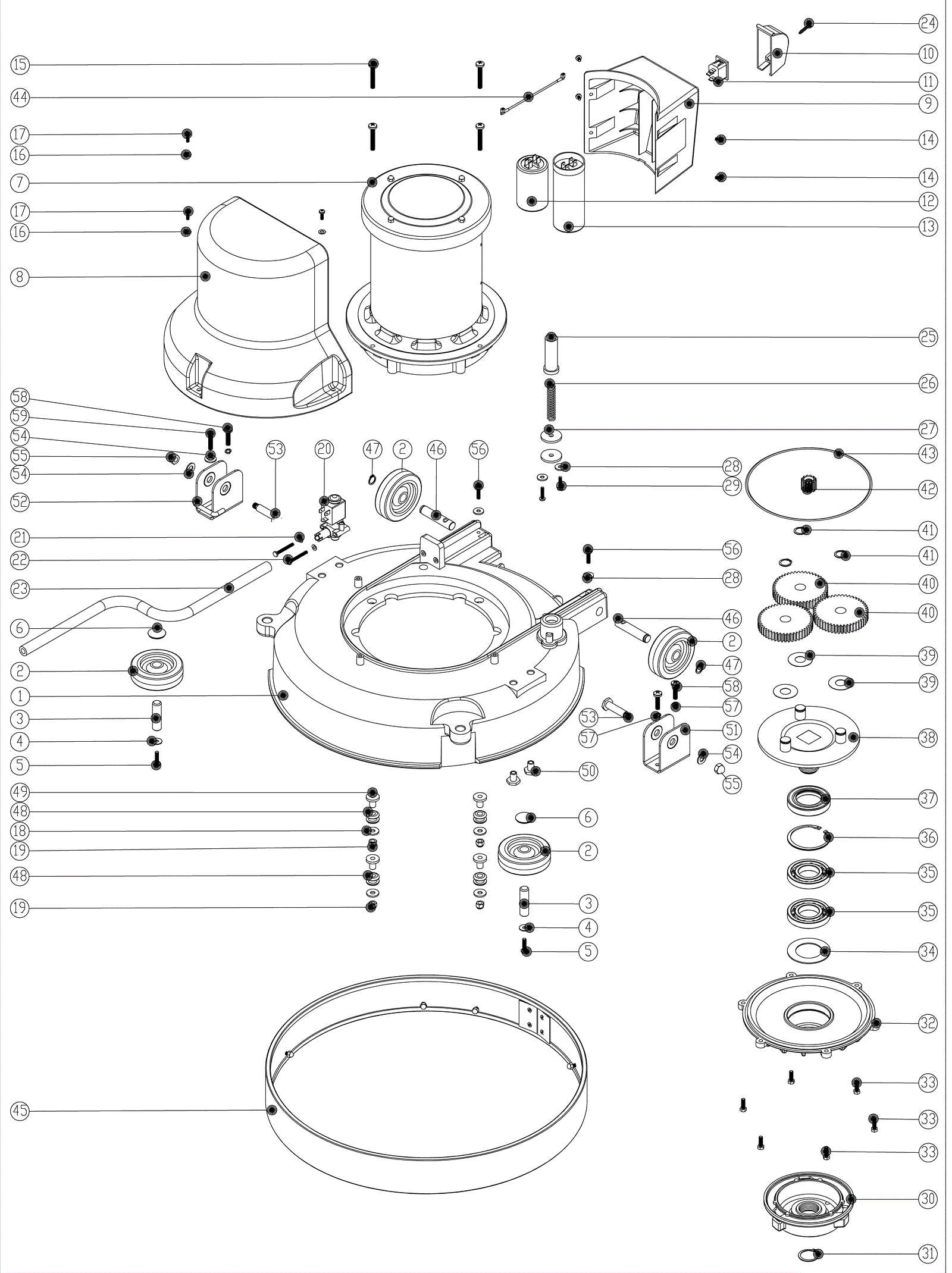

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-0219
|
Base assembly |
|
|
|
2 |
220-0220
|
3 inch wheel |
|
|
|
3 |
220-0221
|
Wheel pin |
|
|
|
4 |
193-0264
|
Washer M5-G stainless steel |
|
|
|
5 |
220-4137
|
Screw M5 x 20mm |
|
|
|
6 |
220-0067
|
Starlock chrome cap |
|
|
|
7a |
220-0222
|
110V motor |
|
(110V) |
|
7b |
220-0223
|
120V brush motor assembly |
|
(120V) |
|
8 |
220-0224
|
Motor cover |
|
|
|
9 |
220-0225
|
Capacitor box |
|
|
|
10 |
220-0226
|
Plug cover |
|
|
|
11 |
220-0227
|
Clip |
|
|
|
13 |
220-0228
|
Start capacitor |
|
|
|
14 |
220-4142
|
Screw M4 x 6mm |
|
|
|
15 |
220-4143
|
Screw M6 x 40mm |
|
|
|
16 |
193-0205
|
Washer M5-A stainless steel |
|
|
|
18 |
220-0168
|
Washer |
|
|
|
19 |
220-0170
|
Nylon nut |
|
|
|
20a |
220-0023
|
Solenoid valve |
|
(110V) |
|
20b |
220-0023
|
Solenoid valve |
|
(110/120V) |
|
21 |
193-0221
|
Washer M4-A |
|
|
|
22 |
193-0193
|
Screw M4 x 35mm pan head stainless steel |
|
|
|
23 |
220-0033
|
38 inch silicone tube |
|
|
|
24 |
193-0028
|
Plastic screw |
|
|
|
25 |
220-0230
|
Plunger |
|
|
|
26 |
220-0231
|
Compression spring |
|
|
|
27 |
220-4156
|
Washer |
|
|
|
28 |
220-4157
|
Washer |
|
|
|
29 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
|
|
|
30 |
220-0160
|
Chuck |
|
|
|
31 |
220-0159
|
26mm external clip |
|
|
|
32 |
220-0232
|
Bottom plate assembly |
|
|
|
33 |
193-0247
|
Screw M5 x 16mm hex head |
|
|
|
34 |
220-4150
|
Washer |
|
|
|
35 |
220-4151
|
Single row bearing |
|
|
|
36 |
220-0233
|
62mm internal circlip |
|
|
|
37 |
220-0234
|
Oil seal |
|
|
|
38 |
220-4152
|
Planet carrier and pins |
|
|
|
39 |
220-4153
|
Washer |
|
|
|
40 |
220-0236
|
48 toothed gear |
|
|
|
41 |
220-0237
|
15mm external circlip |
|
|
|
42 |
220-0238
|
Pinion gear |
|
|
|
43 |
220-0239
|
Oil seal |
|
|
|
44 |
220-0240
|
100mm Link wire (brown) |
|
|
|
45 |
193-2034
|
Splash skirt assembly |
|
|
|
46 |
220-0242
|
Rear wheel pin |
|
|
|
47 |
220-0243
|
12mm external circlip |
|
|
|
48 |
220-0244
|
Grommet |
|
|
|
49 |
220-0245
|
Motor mounting spacer |
|
|
|
50 |
220-0165
|
Bracket spacer |
|
|
|
51 |
220-0246
|
Non-locking pivot bracket |
|
|
|
52 |
220-0162
|
Pivot bracket weldment |
|
|
|
53 |
220-0247
|
Pivot pin |
|
|
|
54 |
220-0164
|
Washer |
|
|
|
55 |
220-4158
|
Dome nut |
|
|
|
56 |
220-4159
|
Screw M5 x 16mm |
|
|
|
57 |
220-4160
|
Single coil washer |
|
|
|
58 |
220-0163
|
Screw M6 |
|
|
|
59 |
220-4161
|
Screw M6 |
|
|
|
