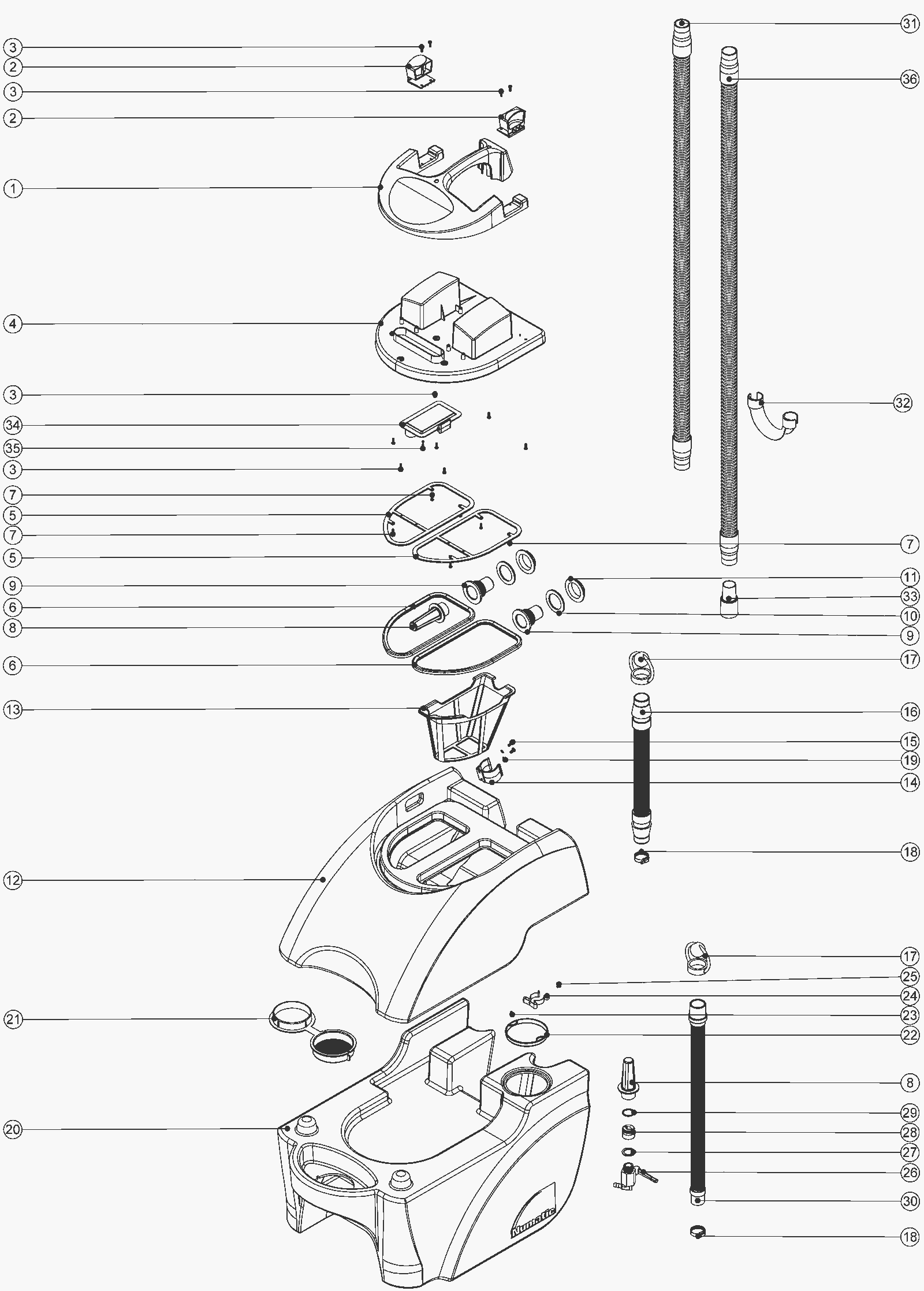

TTB3450 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 193-0284 Separtor top $107.80 1 usually ships 7-21 days
2 193-0129 Clip molding $5.96 2 usually ships 7-21 days
3 220-4100 Screw #8 $2.77 6 usually ships 7-21 days
4a 193-0092 Seperator molding $98.46 1 (between 03/2005 and 11/2001) usually ships 7-21 days
4b 193-0092 Seperator molding $98.46 1 (between 10/2004 and 05/2005) usually ships 7-21 days
5 193-0286 Gasket $17.23 2 usually ships 7-21 days
6a 193-0093 Sealing gasket $20.79 2 usually ships 7-21 days
6b 220-4101 Sealing gasket $7.46 2 (between 10/2004 and 10/2007) usually ships 7-21 days
7a 193-1968 Screw $2.96 3 (between 10/2006 and 11/2011) usually ships 7-21 days
7b 193-0174 Screw #6 x 1/2 inch $1.35 3 (between 10/2004 and 09/2006) usually ships 7-21 days
8a 193-1204 Barrel filter $36.09 2 (after 09/2011) usually ships 7-21 days
8b 220-0155 Barrel filter $55.36 1 (between 10/2004 and 10/2007) usually ships 7-21 days
9 220-0152 Drain hose connector $10.68 2 usually ships 7-21 days
10 220-0151 Rubber washer $3.81 2 usually ships 7-21 days
11 220-0150 Moulded nut (black) $4.62 2 usually ships 1-5 days
12 220-4207 Recovery tank $757.90 1 usually ships 7-21 days
13 220-0334 Filter basket $52.83 1 usually ships 7-21 days
14 193-1684 Hose clip molding $14.83 1 (between 12/2006 and 11/2011) usually ships 7-21 days
15 193-0198 Screw M5 x 10mm pan head stainless steel $2.87 2 (between 12/2006 and 11/2011) usually ships 1-5 days
16a 220-0292 Hose with cap $102.85 1 (between 12/2008 and 11/2011) usually ships 7-21 days
16b 193-0090 Pump hose $110.58 1 (between 10/2004 and 12/2006) usually ships 7-21 days
17 220-0073 Hose closure $27.08 2 usually ships 7-21 days
18a 193-0091 Stainless steel jubilee clip $34.46 2 usually ships 7-21 days
18b 220-0131 Hose assembly $130.35 1 (between 12/2006 and 10/2007) usually ships 7-21 days
19 220-4166 Shakeproof washer $2.66 1 (between 12/2006 and 11/2011) usually ships 7-21 days
20 220-4209 Bottom tank (blue) $621.89 1 usually ships 7-21 days
21 193-0289 Solution cap with filter $65.45 1 usually ships 7-21 days
22 193-0288 Plug $6.11 1 usually ships 7-21 days
23 193-0194 Washer M4-A stainless steel $3.94 1 usually ships 1-5 days
24 220-0253 Tool clip $32.29 1 usually ships 7-21 days
25 220-0332 Screw M4 x 8mm pozi pan head stainless steel $5.29 1 usually ships 1-5 days
26 220-0158 Ball valve $149.80 1 usually ships 7-21 days
27 220-1352 Washer bonded $3.04 1 (between 12/2008 and 11/2011) usually ships 7-21 days
28 220-4102 Filter connector $46.05 1 usually ships 7-21 days
29 220-4103 O-ring $8.09 1 (between 12/2008 and 11/2011) usually ships 7-21 days
30a 220-0130 Dump hose assembly $30.46 1 (between 12/2005 and 11/2011) usually ships 7-21 days
30b 220-0130 Dump hose assembly $30.46 1 (between 10/2004 and 10/2005) usually ships 7-21 days
31a 220-0051 Squeegee vac hose $116.86 1 (between 12/2005 and 11/2011) usually ships 7-21 days
31b 193-0126 Hose assembly $174.25 1 (between 07/2006 and 11/2011) usually ships 7-21 days
31c 220-0250 Vacuum hose $117.07 1 (between 12/2005 and 11/2011) usually ships 7-21 days
31d 220-1353 1850mm suction hose assembly $70.17 1 (between 08/2007 and 11/2011) usually ships 7-21 days
31e 220-0051 Squeegee vac hose $116.86 1 (09/2005) usually ships 7-21 days
31f 220-0250 Vacuum hose $117.07 1 (between 06/2005 and 10/2005) usually ships 7-21 days
31g 220-0250 Vacuum hose $117.07 1 (between 10/2004 and 05/2005) usually ships 7-21 days
32 193-1687 Hose hook $21.99 1 (between 12/2008 and 11/2011) usually ships 7-21 days
33 193-2054 Adapater $18.59 1 usually ships 7-21 days
34a 220-0153 Separator float moulding $3.06 1 (after 09/2011) usually ships 7-21 days
34b 193-0010 Float $2.85 1 (between 10/2006 and 10/2007) usually ships 1-5 days
34c 220-0153 Separator float moulding $3.06 1 (between 10/2004 and 12/2005) usually ships 7-21 days
35 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 1 (between 12/2008 and 11/2011) ships same day
36a 193-0126 Hose assembly $174.25 1 (between 12/2006 and 11/2011) usually ships 7-21 days
36b 220-1353 1850mm suction hose assembly $70.17 1 (between 12/2008 and 11/2011) usually ships 7-21 days
36c 220-2131 Suction hose 1800mm (OBSOLETE) Call for price 1 (between 07/2006 and 06/2007) usually ships 7-21 days
36d 220-0250 Vacuum hose $117.07 1 (between 06/2005 and 10/2005) usually ships 7-21 days
36e 220-0051 Squeegee vac hose $116.86 1 (between 10/2004 and 05/2005 usually ships 7-21 days
N/S 193-0285 Tube end stop $6.61 2 (25.4 mm tube end stop) (between 10/2004 and 10/2007) usually ships 1-5 days
