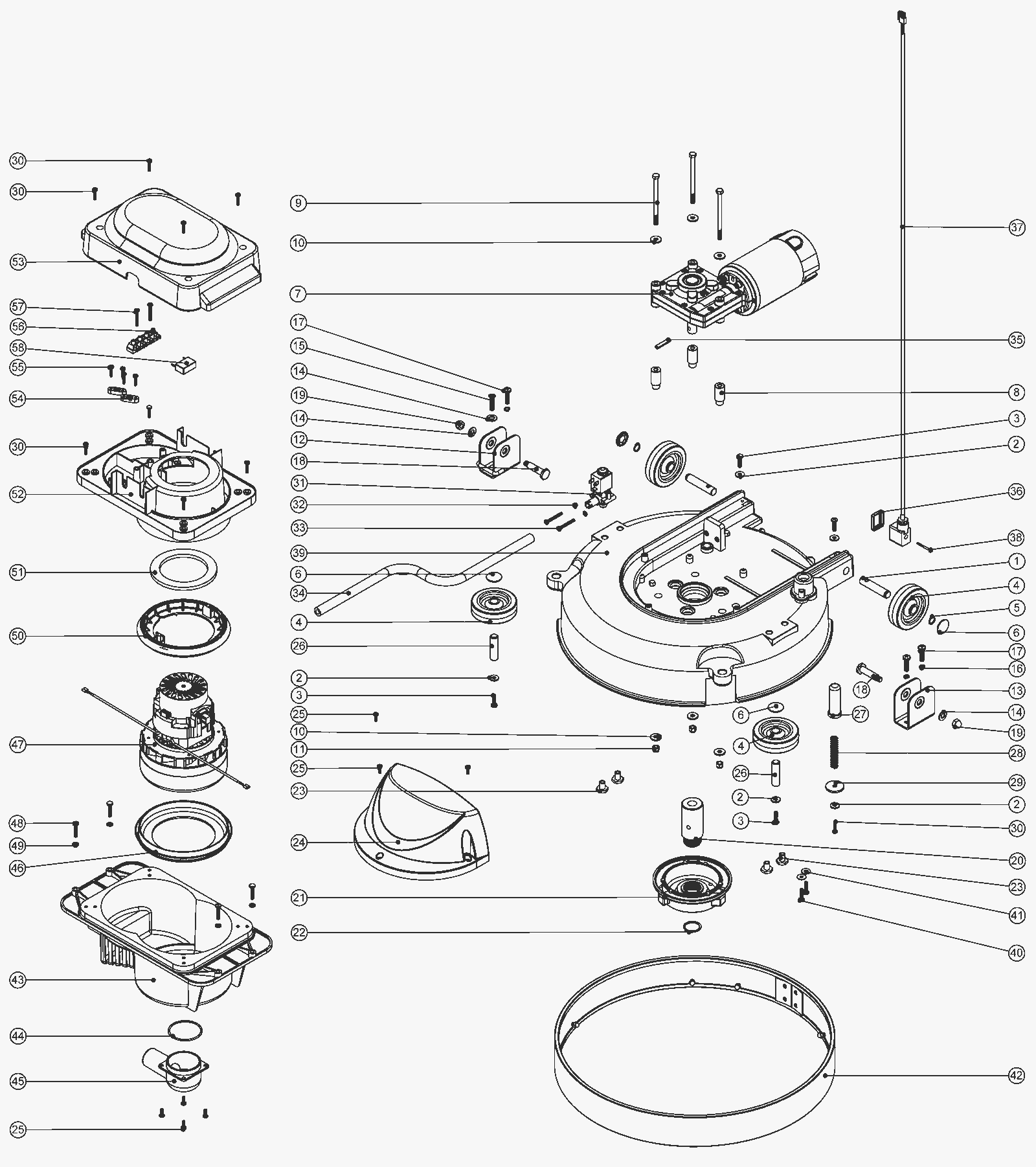

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-0242
|
Rear wheel pin |
2 |
|
|
2 |
220-4157
|
Washer |
5 |
|
|
3 |
220-4159
|
Screw M5 x 16mm |
4 |
|
|
4 |
220-0220
|
3 inch wheel |
4 |
|
|
5 |
220-0243
|
12mm external circlip |
2 |
|
|
6 |
220-0067
|
Starlock chrome cap |
3 |
|
|
7a |
220-0074
|
24V motor and gear box |
1 |
|
|
7b |
220-1300
|
24V motor/gearbox |
1 |
(power electronics) |
|
8 |
220-0166
|
Motor mounting spacer |
3 |
(after 09/2011) |
|
9 |
220-0167
|
Screw |
3 |
|
|
10 |
220-0168
|
Washer |
6 |
|
|
11 |
220-0170
|
Nylon nut |
1 |
|
|
12a |
220-0162
|
Pivot bracket weldment |
1 |
(before 09/2011) |
|
12b |
193-2041
|
Pivot bracket welded assembly |
1 |
(after 09/2011) |
|
13a |
220-0246
|
Non-locking pivot bracket |
1 |
(before 09/2011) |
|
13b |
220-1307
|
Pivot bracket punch and form (without locking slot) |
1 |
(after 09/2011) |
|
14 |
220-0164
|
Washer |
3 |
|
|
15 |
220-4161
|
Screw M6 |
1 |
|
|
16 |
220-4160
|
Single coil washer |
1 |
|
|
17 |
220-0163
|
Screw M6 |
2 |
|
|
18 |
220-0247
|
Pivot pin |
2 |
|
|
19 |
220-4158
|
Dome nut |
2 |
|
|
20 |
220-0072
|
Drive shaft |
1 |
|
|
21 |
220-0160
|
Chuck |
1 |
|
|
22 |
220-0159
|
26mm external clip |
1 |
|
|
23 |
220-0165
|
Bracket spacer |
4 |
|
|
24 |
220-1301
|
Motor shroud |
1 |
|
|
26 |
220-0221
|
Wheel pin |
2 |
|
|
27 |
220-0230
|
Plunger |
1 |
(03/2005) |
|
28 |
220-0231
|
Compression spring |
1 |
(03/2005) |
|
29 |
220-4156
|
Washer |
1 |
(03/2005) |
|
30 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
9 |
|
|
31 |
220-0114
|
24V solenoid valve |
1 |
|
|
32 |
193-0221
|
Washer M4-A |
2 |
|
|
33 |
193-0193
|
Screw M4 x 35mm pan head stainless steel |
2 |
|
|
34 |
220-0033
|
38 inch silicone tube |
1 |
|
|
35 |
193-1380
|
6mm roll pin |
1 |
|
|
36 |
220-4132
|
Connector gasket |
1 |
|
|
37a |
220-1302
|
Solenoid lead assembly |
1 |
|
|
37b |
220-1303
|
Solenoid lead assembly |
1 |
(power electronics) (after 09/2011) |
|
38 |
220-0989
|
Screw M3 |
1 |
|
|
39 |
220-0161
|
Base molding (gray) |
1 |
|
|
40 |
220-4137
|
Screw M5 x 20mm |
2 |
|
|
41 |
193-0264
|
Washer M5-G stainless steel |
2 |
|
|
42a |
193-2034
|
Splash skirt assembly |
1 |
(between 02/2005 and 05/2005) |
|
42b |
220-0024
|
450mm splash skirt molding (OBSOLETE) |
1 |
(07/2005) |
|
42c |
220-1306
|
450mm splash skirt molding |
1 |
(10/2011) |
|
43 |
220-4202
|
Bottom motor housing |
1 |
|
|
44 |
220-4121
|
O-ring |
1 |
|
|
45 |
220-4203
|
Inlet tube molding |
1 |
|
|
46 |
220-4123
|
Bottom motor gasket |
1 |
|
|
47 |
193-0017
|
24V vacuum motor |
1 |
|
|
48 |
220-4122
|
Screw |
2 |
|
|
49 |
220-4131
|
Washer |
2 |
|
|
50 |
220-0252
|
Motor gasket |
1 |
|
|
51 |
193-0086
|
Gasket |
1 |
|
|
52 |
220-4124
|
Top motor housing |
1 |
|
|
53 |
220-4129
|
Top cover moulding |
1 |
|
|
54 |
220-0203
|
Cable clamp (black) |
2 |
|
|
55 |
193-0028
|
Plastic screw |
4 |
|
|
56 |
193-0150
|
Terminal block |
1 |
|
|
57 |
999-1672
|
Screw M4-.7 x 30mm pan head phillips stainless steel |
2 |
|
|
58a |
220-1304
|
Suppressor |
1 |
|
|
58b |
220-1305
|
Suppressor |
1 |
(power electronics) (after 09/2011) |
|
