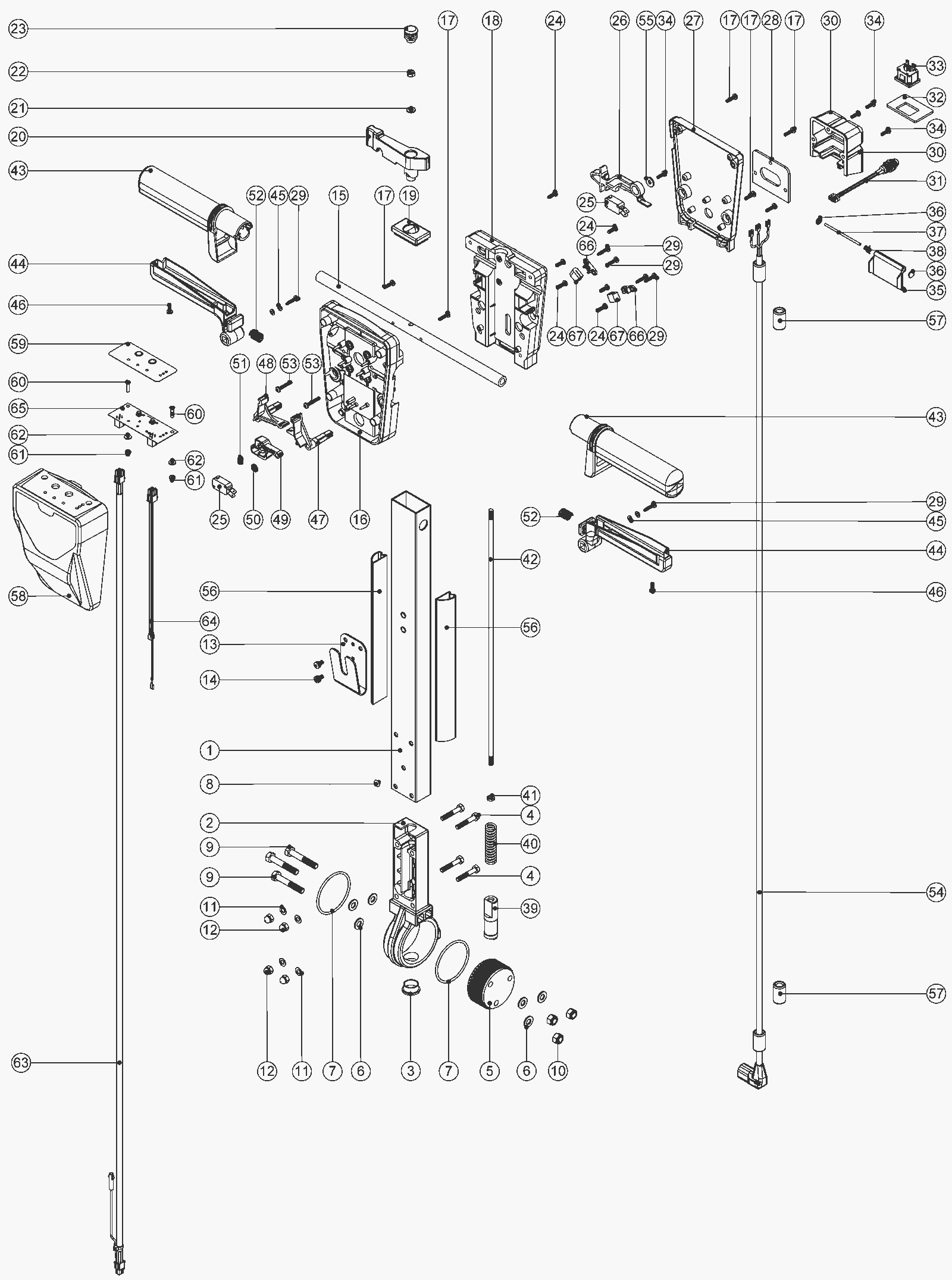

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
220-0180
|
Plug |
1 |
|
|
4 |
220-4099
|
Bolt M6 x 35 |
4 |
|
|
5 |
220-0175
|
Adjustment gear |
1 |
|
|
7 |
220-0176
|
O ring |
2 |
|
|
11 |
193-0225
|
Washer M6-B |
4 |
|
|
12 |
220-4165
|
Dome nut |
4 |
|
|
13 |
193-1732
|
Separator hanging bracket |
1 |
|
|
15 |
220-0182
|
Tube |
1 |
|
|
17 |
220-0109
|
Screw |
6 |
|
|
19 |
220-0197
|
Handle plug |
1 |
|
|
21 |
193-0219
|
Washer M6 nylon |
1 |
|
|
22 |
193-0139
|
Nut M6 nylon insert stainless steel |
1 |
|
|
26 |
220-0196
|
Interlock lever |
1 |
|
|
27b |
220-1004
|
Rear cover moulding |
1 |
(flame retardant) |
|
28 |
220-1005
|
Socket cover sealing gasket |
1 |
|
|
29 |
193-0028
|
Plastic screw |
6 |
|
|
31b |
193-1402
|
120V neon indicator (red) |
1 |
|
|
32 |
193-1415
|
Socket mounting plate |
1 |
|
|
34a |
220-2030
|
Screw 8 x 3/8 plastite |
4 |
(after 10/2011) |
|
34b |
999-0434
|
Screw 6 x 3/8 pan head phillips |
4 |
(between 02/2005 and 02/2009 |
|
34c |
220-2030
|
Screw 8 x 3/8 plastite |
4 |
(between 02/2005 and 02/2009 |
|
35 |
193-1414
|
Flap moulding |
1 |
|
|
37 |
193-1417
|
3mm stainless steel bar |
1 |
|
|
38 |
193-1418
|
Torsion spring |
1 |
|
|
39 |
220-0177
|
Gear locking pin |
1 |
|
|
41 |
193-0223
|
Half nut M6 |
1 |
|
|
42 |
220-0998
|
440mm handle locking rod |
1 |
|
|
43 |
220-0124
|
Hand grip molding |
2 |
|
|
46 |
193-0218
|
Screw 8 x 1/2 inch pan head self tap |
2 |
|
|
48 |
220-0191
|
Right hand switch lever |
1 |
|
|
51 |
220-0211
|
Switch compression spring |
1 |
|
|
52 |
220-0210
|
Trigger compression spring |
2 |
|
|
53 |
193-0220
|
Screw 8 x 1 inch pan head self tap |
2 |
|
|
54 |
193-2055
|
AC charging lead assembly |
1 |
|
|
56 |
220-1349
|
Self-adhesive cable ducting |
2 |
(between 01/2006 and 12/2011) |
|
58a |
193-0233
|
Front cover moulding |
1 |
(after 10/2011) |
|
58c |
220-1514
|
Front cover |
1 |
(between 09/2006 and 02/2009) |
|
58d |
220-1515
|
Front cover with USB plug |
1 |
(between 07/2006 and 02/2009) |
|
58e |
220-1516
|
Front cover molding |
1 |
(between 07/2006 and 02/2009) |
|
58f |
220-0255
|
Front cover |
1 |
(between 02/2005 and 07/2006) |
|
58g |
220-1513
|
Front cover |
1 |
(between 02/2005 and 07/2006) |
|
59a |
193-0230
|
Control panel overlay |
1 |
(after 10/2011) |
|
59b |
193-1757
|
Self adhesive lens gasket |
1 |
(between 02/2005 and 02/2009 |
|
60 |
193-0234
|
Screw M4 x 16mm pan head countersunk |
2 |
(after 10/2011) |
|
61 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
(after 10/2011) |
|
62 |
193-0235
|
Nylon washer |
2 |
(after 10/2011) |
|
63b |
220-0284
|
Handle harness |
1 |
(between 02/2005 and 02/2009 |
|
64 |
193-0236
|
3 core handle loom |
1 |
(after 10/2011) |
|
65a |
220-1348
|
Power control board |
1 |
(after 10/2011) |
|
65b |
220-0283
|
Control PCB |
1 |
(between 02/2005 and 02/2009 |
|
65c |
220-1511
|
USB power control board |
1 |
(between 07/2006 and 02/2009) |
|
66b |
220-0203
|
Cable clamp (black) |
2 |
(between 02/2005 and 02/2009 |
|
N/S |
220-1512
|
Lens molding |
1 |
(lens molding) (between 02/2005 and 02/2009) |
|
N/S |
220-4119
|
Cable clip |
2 |
(cable clip) (03/2005) |
|
