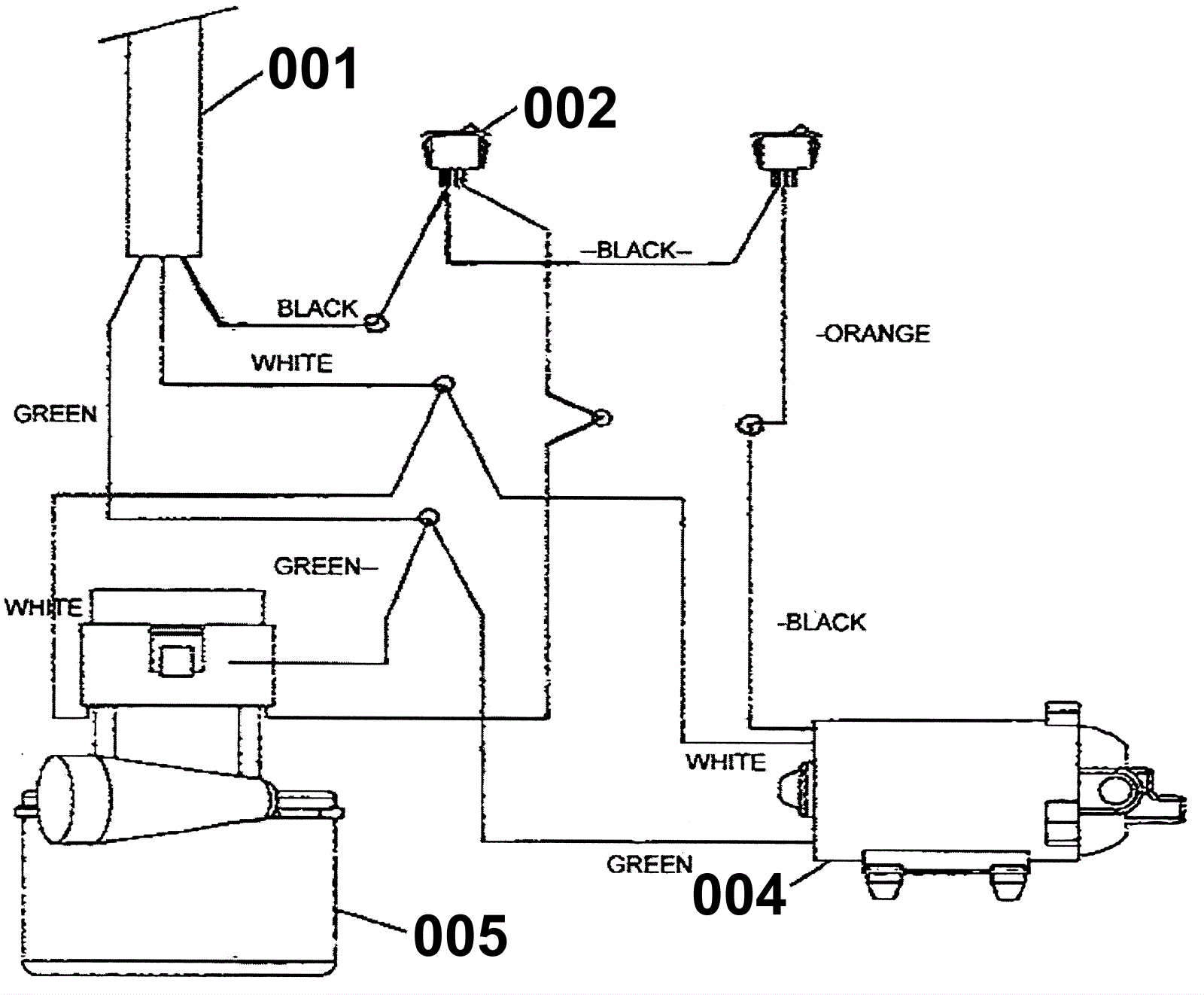

Wiring Diagram

#PartDescription ReqNotesAvailability
001 217-0027 Power cord, 25'-0''
002 206-0045 On/Off rocker switch
004 217-0195 115V 60 PSI pump (OBSOLETE)
005 991-1213 120V 3 stage vacuum motor tangential
