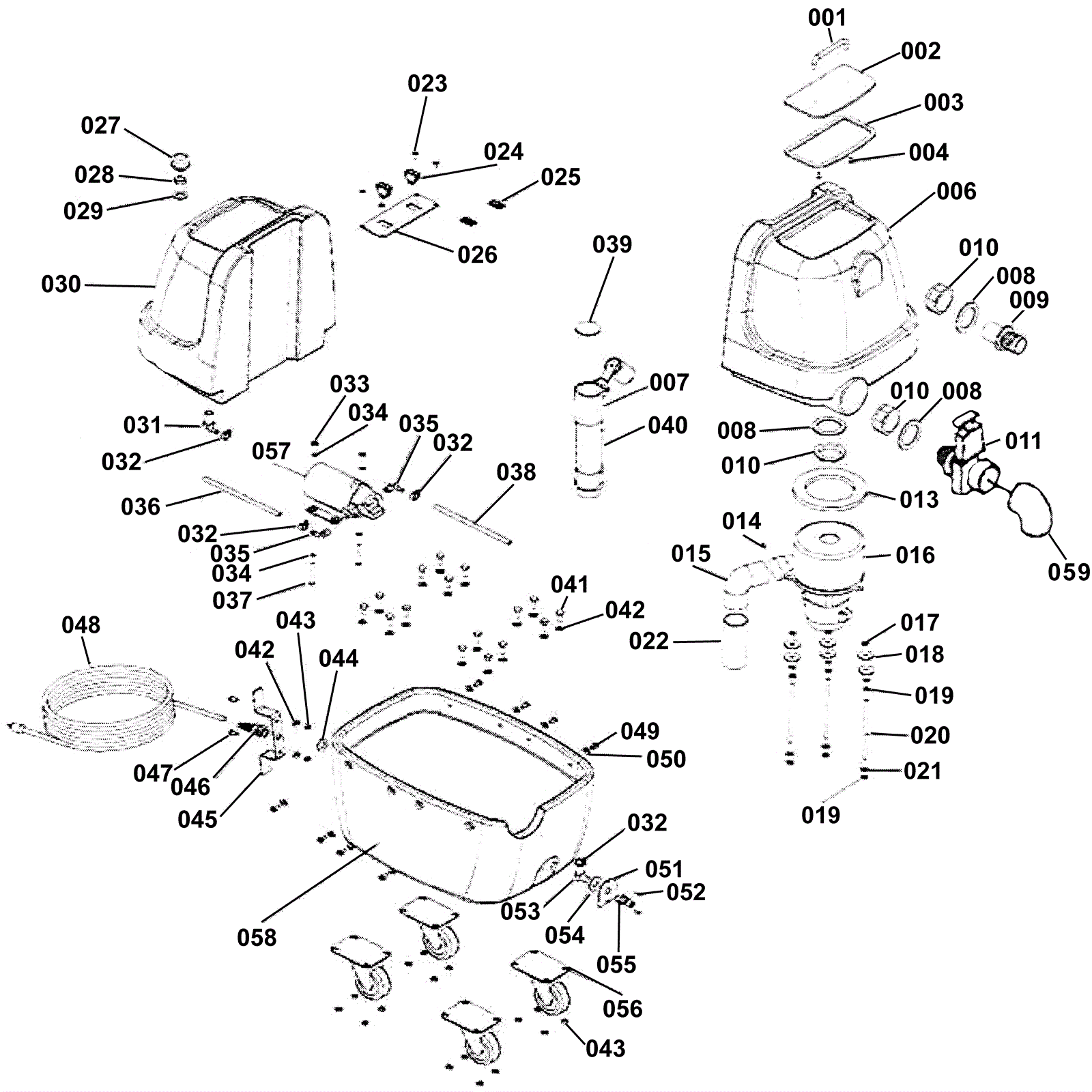

MAXUM5DX Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 217-0139 M5 Handle (OBSOLETE) $17.01 usually ships 5-15 days
002 217-0140 Recovery tank lid (OBSOLETE) Call for price usually ships 5-15 days
003 217-0141 Lid gasket for M5 (OBSOLETE) $5.15 usually ships 5-15 days
004 217-0142 Screw 8 x 1/2 phillips black $4.39 usually ships 1-5 days
006 217-0144 Recovery tank $240.38 usually ships 1-5 days
008 217-0028 Dump valve gasket $7.97 usually ships 5-15 days
009 217-0147 Adapter, 1.5''-male barb $11.60 usually ships 1-5 days
010 217-0150 Nut 1 1/2 lock zinc (OBSOLETE) $3.47 usually ships 5-15 days
011 217-0029 Dump valve $63.70 usually ships 5-15 days
013 206-0065 Vacuum motor gasket $29.41 usually ships 5-15 days
014 217-0152 Screw M5 x 10 x 3/4 slotted sheet metal (OBSOLETE) Call for price usually ships 1-5 days
015 217-0153 Elbow, 90 degree, 2'' PVC (OBSOLETE) Call for price usually ships 1-5 days
016 991-1213 120V 3 stage vacuum motor tangential $142.08 usually ships 5-16 days
017 217-0155 Nut 1/4-20 hex nylon locking stainless steel (OBSOLETE) Call for price usually ships 1-5 days
018 217-0156 Washer 1/4 x 1 1/4 flat (OBSOLETE) Call for price usually ships 1-5 days
019 217-0157 Nut 1/4-20 hex nylock zinc (OBSOLETE) Call for price usually ships 1-5 days
020 217-0158 Rod, fully threaded 1/4-20 (OBSOLETE) Call for price usually ships 1-5 days
021 217-0159 Nut 1/4-20 nylock zinc (OBSOLETE) Call for price usually ships 1-5 days
022 217-0160 Pipe, 2'' x 5'' long exhaust (OBSOLETE) Call for price usually ships 1-5 days
023 217-0161 Screw 10 - 32 x 1/2 black truss head $2.57 usually ships 1-5 days
024 206-0045 On/Off rocker switch $9.31 usually ships 5-15 days
025 N/A Not available Call for price (Switch boot) usually ships 3-26 days
026 217-0164 Complete control plate assembly (OBSOLETE) $20.50 usually ships 5-15 days
027 217-0032 Clean water screen $22.04 usually ships 5-15 days
028 217-0166 Nut 11/16-16 black plastic (OBSOLETE) Call for price usually ships 1-5 days
029 217-0167 Washer 3/4 x 1 plastic black (OBSOLETE) Call for price usually ships 1-5 days
030 217-0168 Solution tank $240.38 usually ships 1-5 days
031 206-1205 Jet body $18.20 usually ships 5-15 days
032 217-0170 Clamp, hose 7/16-25/32 #6 (OBSOLETE) Call for price usually ships 1-5 days
033 217-0171 Nut 10-32 hex nylock stainless steel (OBSOLETE) Call for price usually ships 1-5 days
034 217-0172 Washer 1/4 flat stainless steel (OBSOLETE) Call for price usually ships 1-5 days
035 217-0173 Elbow pump $4.50 usually ships 1-5 days
036 217-0174 Solution hose, 3/8'' x 18'' wire supp. (OBSOLETE) Call for price usually ships 1-5 days
037 217-0175 Screw 10 - 32 x 1 1/2 pan head stainless steel (OBSOLETE) Call for price usually ships 1-5 days
038 217-0176 Solution hose, 3/8'' x 18'' (OBSOLETE) Call for price usually ships 1-5 days
039 217-0177 Filter foam vac stack (OBSOLETE) $3.61 usually ships 5-15 days
040 217-0178 Pipe PVC (OBSOLETE) $23.58 usually ships 1-5 days
041 217-0179 Screw 1/4 - 20 x 3/4 hex (OBSOLETE) Call for price usually ships 1-5 days
042 217-0180 Washer M5 x 1/4 zinc (OBSOLETE) Call for price usually ships 1-5 days
043 217-0181 Nut 1/4-20 w/ nylock zinc (OBSOLETE) Call for price usually ships 1-5 days
044 217-0182 Nut lock (OBSOLETE) Call for price usually ships 1-5 days
045 217-0183 Bracket, electric cord for M5 (OBSOLETE) Call for price usually ships 1-5 days
046 217-0025 Strain relief-power cord (OBSOLETE) $24.19 usually ships 1-5 days
047 217-0185 Screw 1/4-20 x 1 black $2.57 usually ships 1-5 days
048 217-0186 25 foot power cord (black) (OBSOLETE) $133.88 usually ships 1-5 days
049 217-0185 Screw 1/4-20 x 1 black $2.57 usually ships 1-5 days
050 217-0188 Washer, 1/4-20 zinc (OBSOLETE) Call for price usually ships 1-5 days
051 217-0189 Male plate (OBSOLETE) Call for price usually ships 1-5 days
052 217-0142 Screw 8 x 1/2 phillips black $4.39 usually ships 1-5 days
053 217-0048 Elbow, brass (OBSOLETE) Call for price usually ships 1-5 days
054 217-0192 Washer, 1/2 x 1 3/8 zinc (OBSOLETE) Call for price usually ships 1-5 days
055 217-0047 Quick coupler, male $26.48 usually ships 1-5 days
056 217-0194 Caster (OBSOLETE) $30.57 usually ships 5-15 days
057 217-0195 115V 60 PSI pump (OBSOLETE) $443.28 usually ships 5-15 days
058 217-0196 Base $277.43 usually ships 1-5 days
059 217-0030 Dump elbow (OBSOLETE) $13.54 usually ships 5-15 days
N/S 217-0143 Lanyard, 3/64 x 6'' wire cable (OBSOLETE) Call for price usually ships 1-5 days
N/S 217-0953 15 foot solution and vacuum hose assembly (OBSOLETE) $207.76 usually ships 1-5 days
