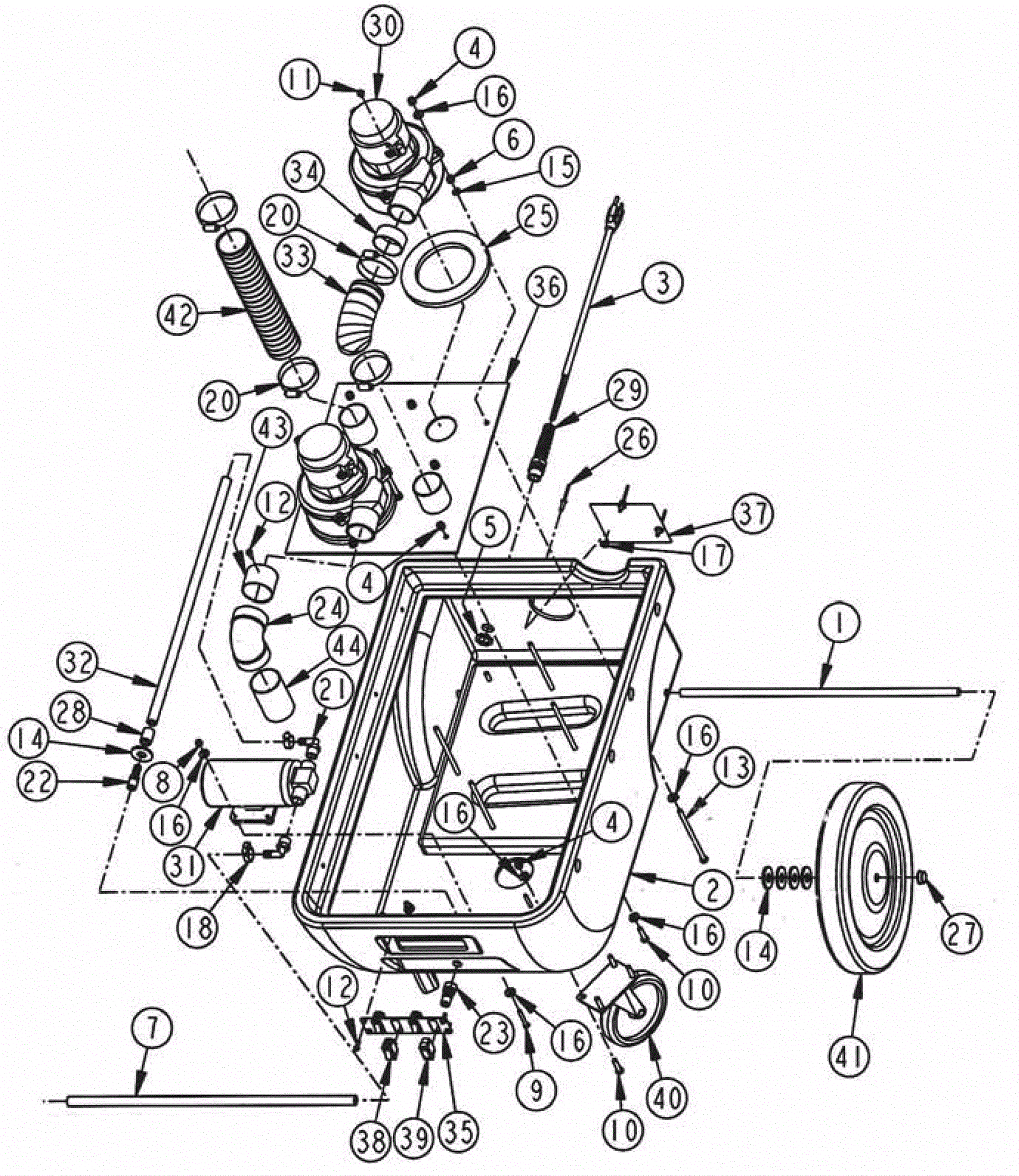

MAXUM12 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-1207 Axle rod $28.35 1 usually ships 5-15 days
2 206-1187 Base (black) $192.80 1 usually ships 1-5 days
3 206-1208 16/3 power cord 25 foot $147.26 1 usually ships 1-5 days
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 16 ships same day
6 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
7 206-1209 Solution hose $22.88 1 usually ships 1-5 days
8 999-1353 Nut 10-32 hex nylon lock insert stainless steel $0.99 2 ships same day
9 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
10 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 10 ships same day
11 206-3750 Screw 10 x 3/8 hex head washer (OBSOLETE) Call for price 2 usually ships 1-5 days
12 206-3751 Screw 8 x 5/8 hex head washer $4.64 5 usually ships 1-5 days
13 206-3752 Screw 1/4-20 x 5 hex head zinc (OBSOLETE) Call for price 6 usually ships 1-5 days
14 206-3165 Washer flat (OBSOLETE) Call for price 9 usually ships 5-15 days
15 206-3753 Washer 1/4 medium split (OBSOLETE) Call for price 6 usually ships 1-5 days
16 206-4820 Washer $3.14 26 usually ships 5-15 days
17 999-0998 Washer #10 flat stainless steel $0.99 3 ships same day
18 206-0080 Hose clamp $5.66 2 usually ships 1-5 days
20 206-1210 Hose clamp (OBSOLETE) Call for price 4 usually ships 1-5 days
21 206-1211 Male elbow $4.78 2 usually ships 5-15 days
22 206-0081 Fitting 3/8h x 1/4mpt (OBSOLETE) $9.94 1 usually ships 5-15 days
23 206-0083 Quick connect male $25.08 1 usually ships 5-15 days
24 206-1212 Elbow $5.71 1 usually ships 1-5 days
25 206-0065 Vacuum motor gasket $32.35 2 usually ships 5-15 days
26 206-1213 Rivet (OBSOLETE) Call for price 3 usually ships 1-5 days
27 206-1120 Snap axle cap $8.46 2 usually ships 5-15 days
28 206-1214 Ferrule solution hose (OBSOLETE) Call for price 1 usually ships 1-5 days
29 206-1102 Strain relief $29.49 1 usually ships 5-15 days
30 206-1215 2 stage vacuum motor tangential (OBSOLETE) $312.69 2 usually ships 5-15 days
31 217-0066 115V 100 PSI pump $506.58 1 usually ships 5-15 days
32 206-1216 19 inch solution hose $8.55 1 usually ships 1-5 days
33 206-1217 Hose $13.64 1 usually ships 1-5 days
34 206-1200 PVC pipe $143.19 1 usually ships 1-5 days
35 206-1218 Switch plate $78.23 1 usually ships 1-5 days
36 206-1219 Motor mounting plate $166.54 1 usually ships 1-5 days
37 206-1220 Vacuum guard screen (OBSOLETE) $12.83 2 usually ships 1-5 days
38 206-0045 On/Off rocker switch $9.31 3 ships same day
39 206-1221 Switch $12.28 1 usually ships 1-5 days
40 206-1222 Swivel caster $40.93 2 usually ships 5-15 days
41 206-1223 Wheel (OBSOLETE) $104.36 2 usually ships 5-15 days
42 206-1224 Hose $17.63 1 usually ships 5-15 days
43 217-4735 2 inch pipe $4.30 1 usually ships 5-15 days
44 217-4736 3 inch pipe $5.13 1 usually ships 5-15 days
