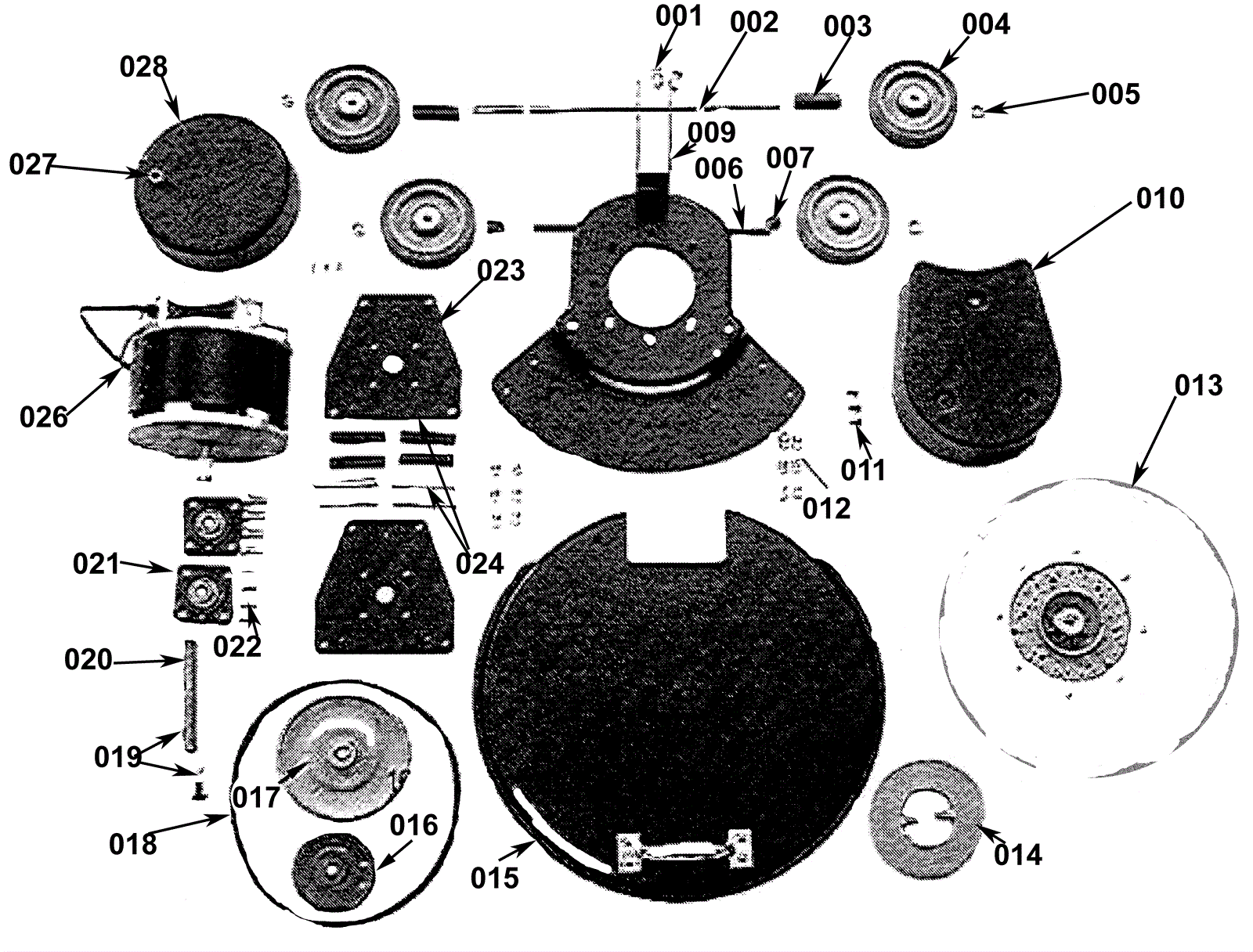

TM15BC Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 217-0522 Bolts, nuts, f/axle bracket $3.61 4 usually ships 5-15 days
002 N/A Not available Call for price 1 (Long axle with bracket) usually ships 3-26 days
003 217-0524 Long axle spacer $2.28 2 usually ships 5-15 days
004 217-0525 Wheels $45.31 4 usually ships 5-15 days
005 206-1120 Snap axle cap $8.46 4 usually ships 5-15 days
006 217-0527 Short axle (OBSOLETE) Call for price 1 usually ships 5-15 days
007 217-0528 Short axle spacer (OBSOLETE) Call for price 2 usually ships 1-5 days
008 217-0529 Motor base assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
009 N/A Not available Call for price 1 (Handle bracket assembly) usually ships 3-26 days
010 217-0531 Belt cover (OBSOLETE) $54.95 1 usually ships 1-5 days
011 217-0532 Belt cover screws (OBSOLETE) $2.20 3 usually ships 1-5 days
012 217-0533 Bolts, nuts, f/apron and base (OBSOLETE) Call for price 12 usually ships 1-5 days
013a N/A Not available Call for price 1 (Pad driver) usually ships 3-26 days
013b 996-0071 19 inch pad driver $79.66 1 (NON-OEM) ships same day
014 996-0372 Big mouth pad holder (left hand thread) $19.72 1 ships same day
015 217-0535 Apron with bumper and handle (OBSOLETE) Call for price 1 usually ships 1-5 days
016 217-0536 Motor pulley (OBSOLETE) $40.61 1 usually ships 5-15 days
017 217-0537 Drive pulley $120.19 1 usually ships 5-15 days
018 217-0009 Belt (OBSOLETE) $17.00 1 usually ships 5-15 days
019 217-0539 Shaft screw with lock washer $2.82 1 usually ships 5-15 days
020 217-0540 Shaft with 2 keys (OBSOLETE) $33.00 1 usually ships 5-15 days
021 217-0541 Box bearing - Sold each (OBSOLETE) $52.23 2 usually ships 5-15 days
022 217-0542 Box bearing screws $18.59 4 usually ships 1-5 days
023 217-0543 Pulley plates (OBSOLETE) Call for price 2 usually ships 1-5 days
024 217-0544 Pulley plate supports and screws (OBSOLETE) Call for price 4 usually ships 5-15 days
026a 217-0547 Motor for TM unit 1 1/5hp DC $1,268.16 1 usually ships 1-5 days
026b 217-0546 Motor for SE unit 1 1/2hp AC (OBSOLETE) Call for price 1 usually ships 1-5 days
026c 217-0308 Armature for Imperial motor (OBSOLETE) Call for price usually ships 1-5 days
027 217-0548 Brush wear indicator light $19.40 1 usually ships 5-15 days
028 N/A Not available Call for price 1 Motor cover usually ships 3-26 days
N/S 175-3492 Carbon brush $25.08 ships same day
N/S 202-2127 Complete control unit (OBSOLETE) $1,760.00 1 usually ships 1-5 days
N/S 206-0242 Carbon brush (sold individually) (OBSOLETE) $34.63 4 usually ships 5-15 days
N/S 217-0014 On/off switch $42.96 ships same day
N/S 217-0938 Carbon brush assembly includes springs $286.07 1 has 4 wires coming out usually ships 5-15 days
N/S 217-0938 Carbon brush assembly includes springs $286.07 4 usually ships 5-15 days
N/S 217-4720 Utility valve with sleeve (OBSOLETE) $130.33 usually ships 1-5 days
N/S 217-4721 Flanged coupling (white) (OBSOLETE) $5.06 usually ships 1-5 days
N/S 991-1813 120V rectifier $6.88 usually ships 5-16 days
N/S 991-1827 Carbon brush for Imperial motor $11.42 ships same day
N/S 996-0291 20 inch dust skirt $121.82 usually ships 1-5 days
