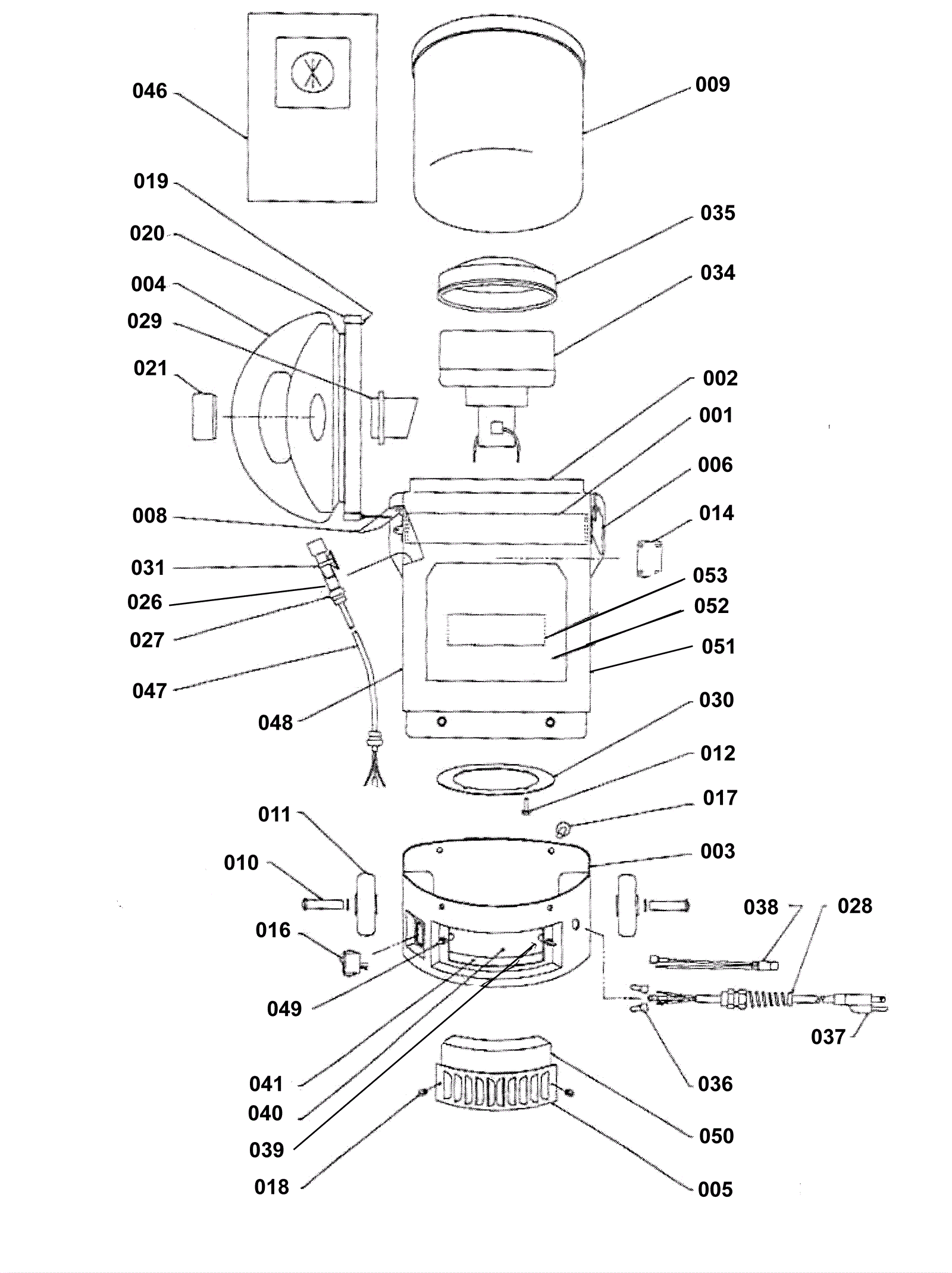

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
217-0884
|
Aluminum housing bracket (OBSOLETE) |
|
|
|
002 |
217-0885
|
Housing (OBSOLETE) |
|
|
|
003 |
217-0886
|
End cap (OBSOLETE) |
|
|
|
004 |
217-0887
|
Lid (OBSOLETE) |
|
|
|
005 |
217-0888
|
Black louvered exhaust cover plate (OBSOLETE) |
|
|
|
006 |
217-0889
|
Right latch (OBSOLETE) |
|
|
|
007 |
N/A
|
Not available |
|
|
|
008 |
217-0891
|
Left latch assembly (OBSOLETE) |
|
|
|
009 |
217-0892
|
Cloth bag (OBSOLETE) |
|
|
|
010 |
217-0893
|
Bolt 5/16 - 18 x 1 1/2 (OBSOLETE) |
|
|
|
011 |
217-0894
|
Rear wheel (OBSOLETE) |
|
|
|
012 |
217-0895
|
Screw 10-24 x 3/4 self tapping (OBSOLETE) |
|
|
|
013 |
N/A
|
Not available |
|
|
|
014 |
217-0897
|
Front caster (OBSOLETE) |
|
|
|
015 |
217-0898
|
Louvered plate spacer (OBSOLETE) |
|
|
|
016 |
217-0899
|
On/off switch (OBSOLETE) |
|
|
|
017 |
217-0900
|
Bolt 5/16-18 x 1/2 (OBSOLETE) |
|
|
|
018 |
217-0901
|
Nut 8-32 plastic thumb (OBSOLETE) |
|
|
|
019 |
217-0902
|
Right strike (OBSOLETE) |
|
|
|
020 |
217-0903
|
Bumper (OBSOLETE) |
|
|
|
021 |
217-0904
|
Lid insert (OBSOLETE) |
|
|
|
026 |
217-0909
|
Black 8 inch cable tie (OBSOLETE) |
|
|
|
027 |
217-0910
|
Strain relief for powerhead receptacle (pkg of 50) (OBSOLETE |
|
|
|
028 |
217-0911
|
Spring type strain relief (OBSOLETE) |
|
|
|
029 |
217-0912
|
Flanged spigot (OBSOLETE) |
|
|
|
030 |
217-0913
|
Motor plate (OBSOLETE) |
|
|
|
031 |
217-0914
|
Cradle mounts (OBSOLETE) |
|
|
|
034 |
217-0917
|
Motor (OBSOLETE) |
|
|
|
035 |
217-0918
|
Flat motor filter (OBSOLETE) |
|
|
|
036 |
217-0919
|
Crimp on connector (OBSOLETE) |
|
|
|
037 |
217-0920
|
Black stub cord (OBSOLETE) |
|
|
|
038 |
217-0921
|
Thermal protector (OBSOLETE) |
|
|
|
039 |
217-0922
|
Exhaust bracket (OBSOLETE) |
|
|
|
040 |
217-0923
|
Exhaust acoustic insulator felt (OBSOLETE) |
|
|
|
041 |
217-0924
|
Bottom acoustic insulator felt (OBSOLETE) |
|
|
|
042 |
217-0925
|
Harness combo (OBSOLETE) |
|
|
|
046 |
217-0929
|
Paper bag (OBSOLETE) |
|
|
|
047 |
217-0930
|
Cable (OBSOLETE) |
|
|
|
048 |
217-0931
|
VL label (OBSOLETE) |
|
|
|
049 |
217-0932
|
Nut nylock (OBSOLETE) |
|
|
|
050 |
217-0933
|
Diffuser (OBSOLETE) |
|
|
|
051 |
217-0934
|
Warning label (OBSOLETE) |
|
|
|
052 |
217-0935
|
Protect label (OBSOLETE) |
|
|
|
053 |
217-0936
|
Caution label (OBSOLETE) |
|
|
|
N/S |
217-0906
|
Powerhead receptacle kit (OBSOLETE) |
|
|
|
N/S |
217-0915
|
Slide connector (OBSOLETE) |
|
|
|
N/S |
217-0907
|
Cable clamp (OBSOLETE) |
|
|
|
N/S |
217-0928
|
50' standard extension cord (OBSOLETE) |
|
|
|
N/S |
217-0908
|
Black 4 inch cable tie (OBSOLETE) |
|
|
|
N/S |
217-0926
|
Buckle style cord holder (OBSOLETE) |
|
|
|
N/S |
217-0916
|
Ground eye (OBSOLETE) |
|
|
|
N/S |
217-0905
|
Powerhead receptacle cord (OBSOLETE) |
|
|
|
N/S |
217-0927
|
Velcro cord holder (OBSOLETE) |
|
|
|
