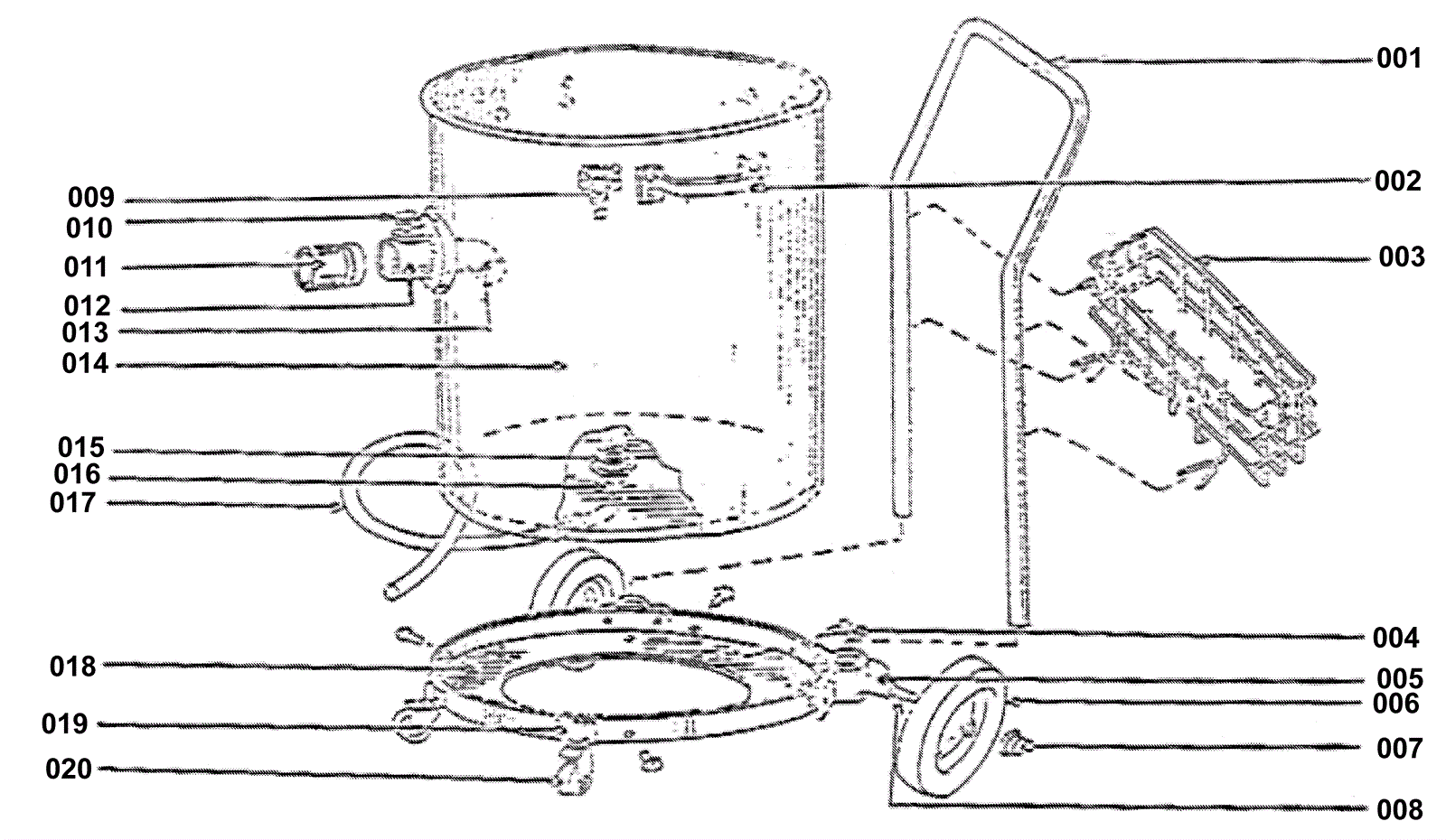

Lower Assembly

#PartDescription ReqNotesAvailability
001 217-0839 Carriage handle (OBSOLETE)
002 217-0840 Container handle (OBSOLETE)
003 217-0841 Tool basket (OBSOLETE)
004 217-0842 Caster pan screws (OBSOLETE)
005 217-0843 Carriage casting 16 inch (OBSOLETE)
006 217-0844 8 inch ball bearing wheel (OBSOLETE)
007 217-0845 Axle hub cap (OBSOLETE)
008 217-0846 Wheel axle (OBSOLETE)
009 206-3579 Clamp
010 217-0848 Intake lock screw (OBSOLETE)
011 217-0849 Intake steel hose connector (OBSOLETE)
012 217-0850 Intake casting (OBSOLETE)
013 217-0851 Intake elbow (OBSOLETE)
014 217-0852 Container (OBSOLETE)
015 N/A Not available Threaded drain plug
016 217-0854 Pump out brass drain assembly (OBSOLETE)
017 217-0855 Drain hose assembly (OBSOLETE)
018 217-0856 Caster pan 16 inch (OBSOLETE)
019 217-0857 Caster bracket (OBSOLETE)
020 206-1119 3 inch caster (OBSOLETE)
N/S 217-0860 Carriage handle assembly wtih tool basket (OBSOLETE)
N/S 217-0859 Container complete with hardware (OBSOLETE)
