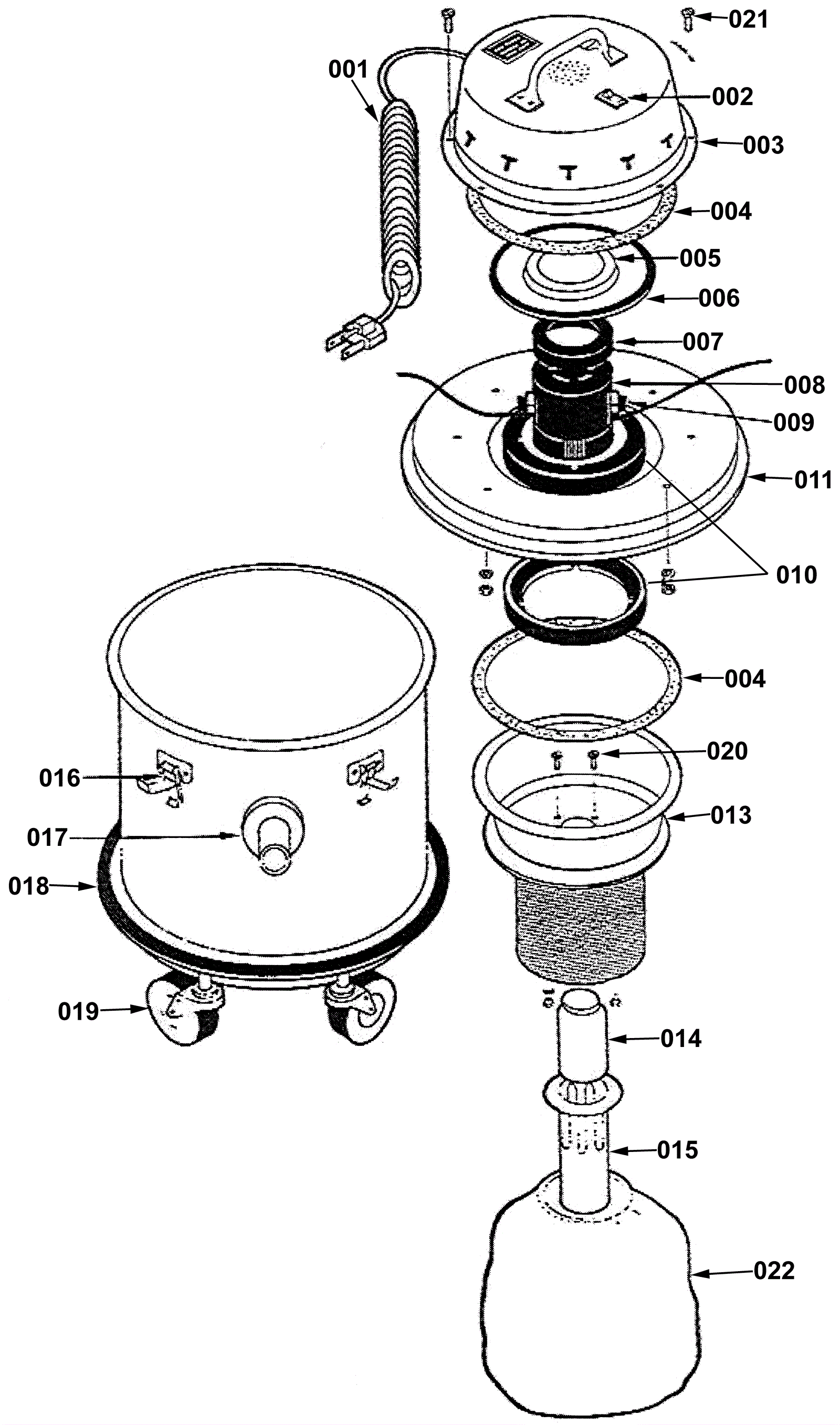

Entire Assembly

#PartDescription ReqNotesAvailability
001 217-0500 Power supply cord (OBSOLETE) 1
002 217-0501 Switch (OBSOLETE) 1
003 217-0502 Motor dome (OBSOLETE) 1
004 217-0503 Main lid gasket (OBSOLETE) 2
005 217-0504 Motor hold down ring (OBSOLETE) 1
007 217-0506 Motor top gasket (OBSOLETE) 1
008 206-0066 Vacuum motor (OBSOLETE) 1
009 217-0508 Carbon brushes (OBSOLETE) 2
010 217-0509 Motor hold down gasket 2
011 217-0510 Main lid (OBSOLETE) 1
013 217-0512 Water pan Filter assembly (OBSOLETE) 1
014 217-0513 Float 1
015 217-0514 Float tube (OBSOLETE) 1
016 206-3579 Clamp 3
017 217-0516 Intake (OBSOLETE) 1
018 217-0517 Bumper 1
019 206-1119 3 inch caster (OBSOLETE) 4
020 217-0519 Screws, nuts, lockwashers (OBSOLETE) 4
021 217-0520 Screws, nuts, lockwashers (OBSOLETE) 6
022 217-0521 Filter bag (OBSOLETE) 1
N/S 217-0511 Sponge main lid gasket (OBSOLETE) 1
