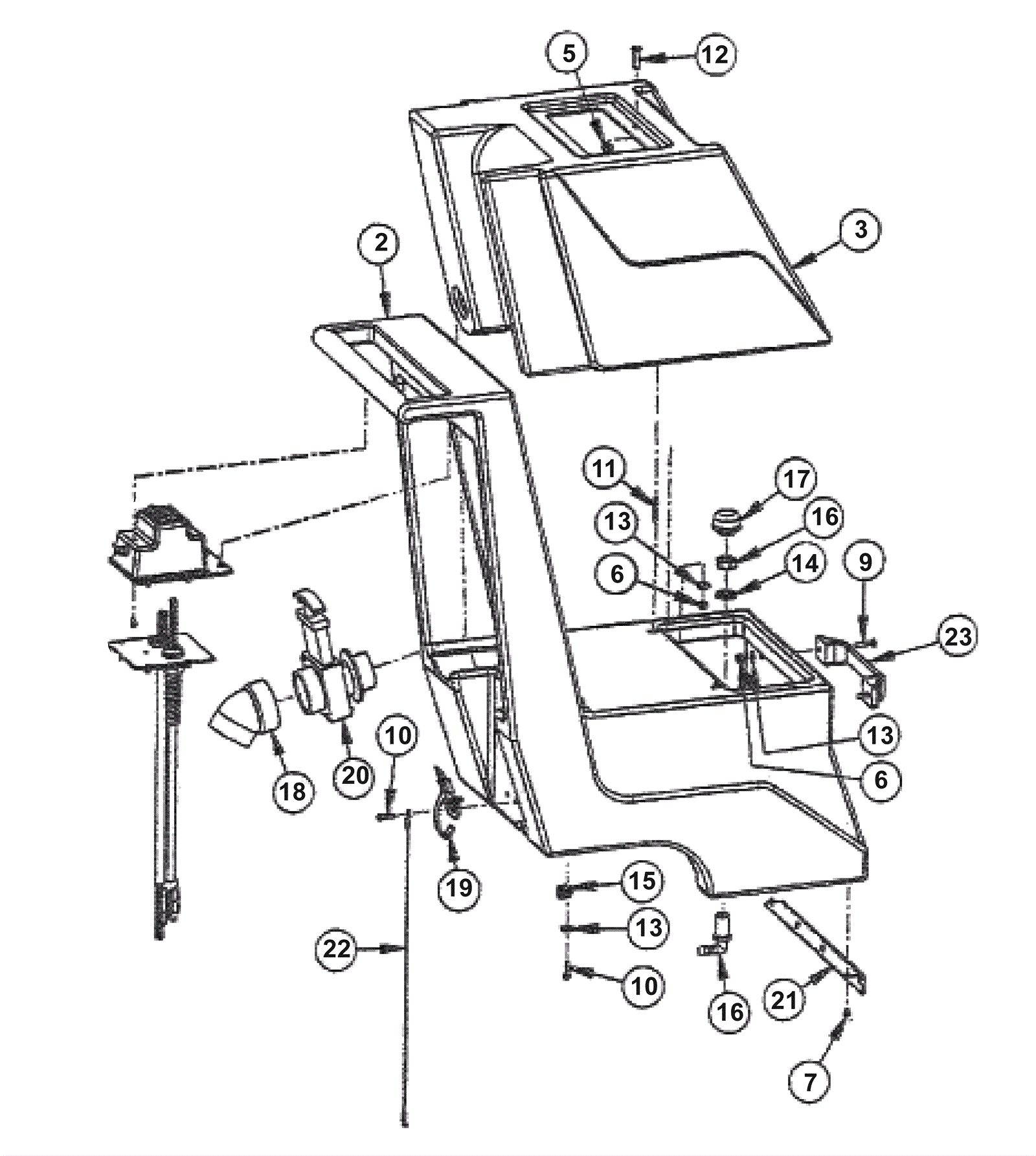

Body Assembly

#PartDescription ReqNotesAvailability
2 206-3573 Solution tank 1
3 217-4726 Recovery tank (black) (OBSOLETE) 1
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
6 999-1353 Nut 10-32 hex nylon lock insert stainless steel 1
7 206-3575 Screw 10-32 x 5/16 flat head 3
9 999-9067 Screw 10-32 x 1 pan head phillips zinc plated 2
10 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
11 206-3576 Stud 4
12 206-3577 Screw 1/4-20 x 1 stainless steel (OBSOLETE) 1
13 206-4820 Washer 2
14 206-0160 Garden hose washer 1
15 206-3578 1/2 inch cable clamp 1
16 206-1205 Jet body 1
17 217-0032 Clean water screen (OBSOLETE) 1
18 206-1194 Elbow 1
19 206-3579 Clamp 1
20 217-0029 Dump valve 1
21 206-1185 Hinge 1
22 206-1171 Lanyard 1
23 206-1206 Handle 1
