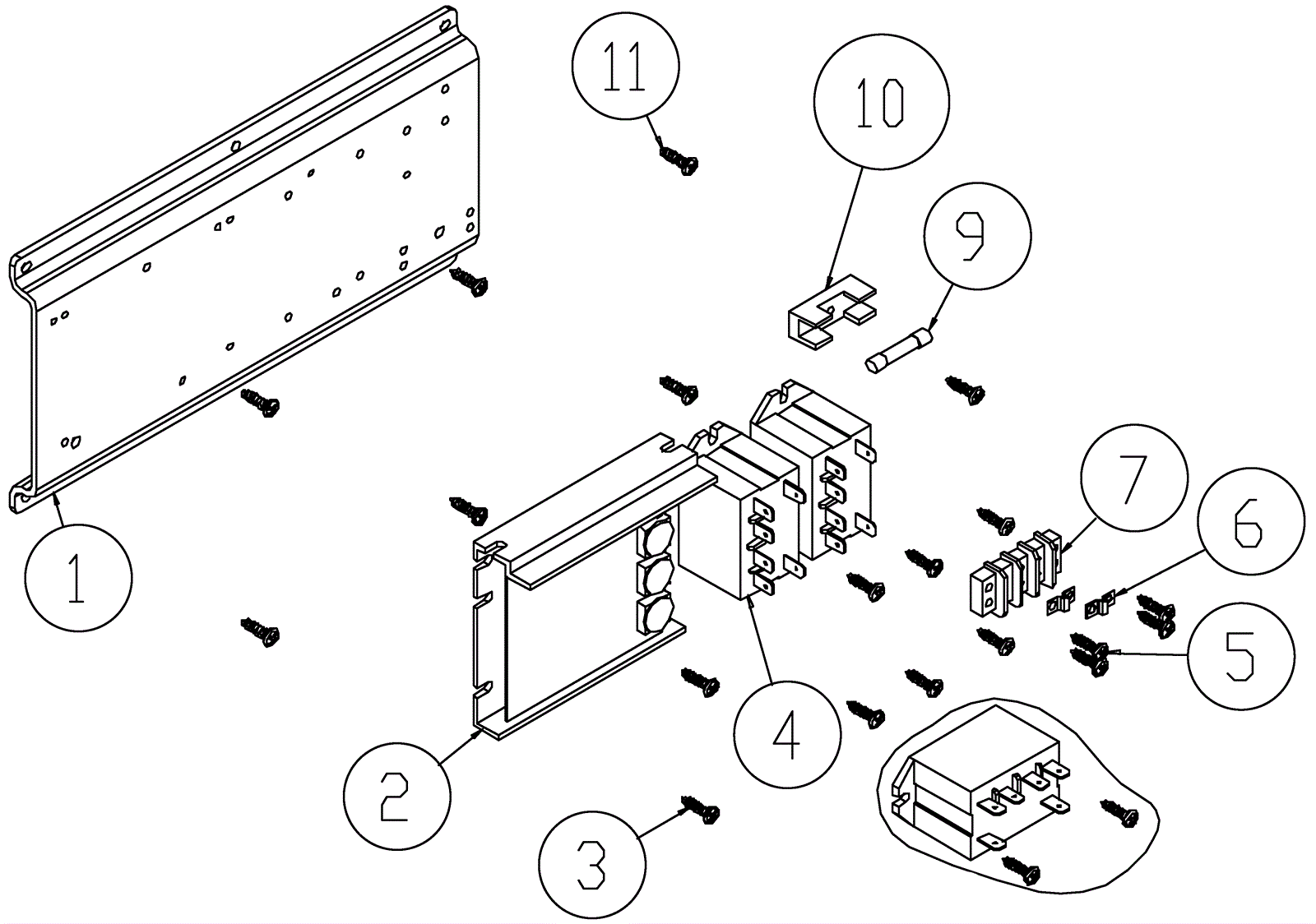

CASCADE 20 Component Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 216-0269 Component bracket $59.39 1 usually ships 10-27 days
2 216-0078 Control motor $527.99 1 (Self propelled models only) usually ships 10-27 days
3 216-0114 Screw #8 x 5/8mm pan head $1.30 9 (Use 3 in self propelled models) usually ships 1-5 days
4 216-0017 Heavy duty relay $80.29 4 (Use one in self propelled models) usually ships 10-27 days
5 216-0178 Screw #8 x 5/8 pan head phillips $1.30 4 usually ships 10-27 days
6 216-0265 Jumper tab $1.30 2 usually ships 10-27 days
7 216-0268 Terminal block $5.13 1 usually ships 10-27 days
9 216-0267 Fuse $4.49 1 (Self propelled models only) usually ships 10-27 days
10 216-0115 Fuse clip $7.69 1 (Use one in self propelled models) usually ships 1-5 days
11 216-0103 Screw #10 x 5/8mm pan head $1.30 6 usually ships 10-27 days
