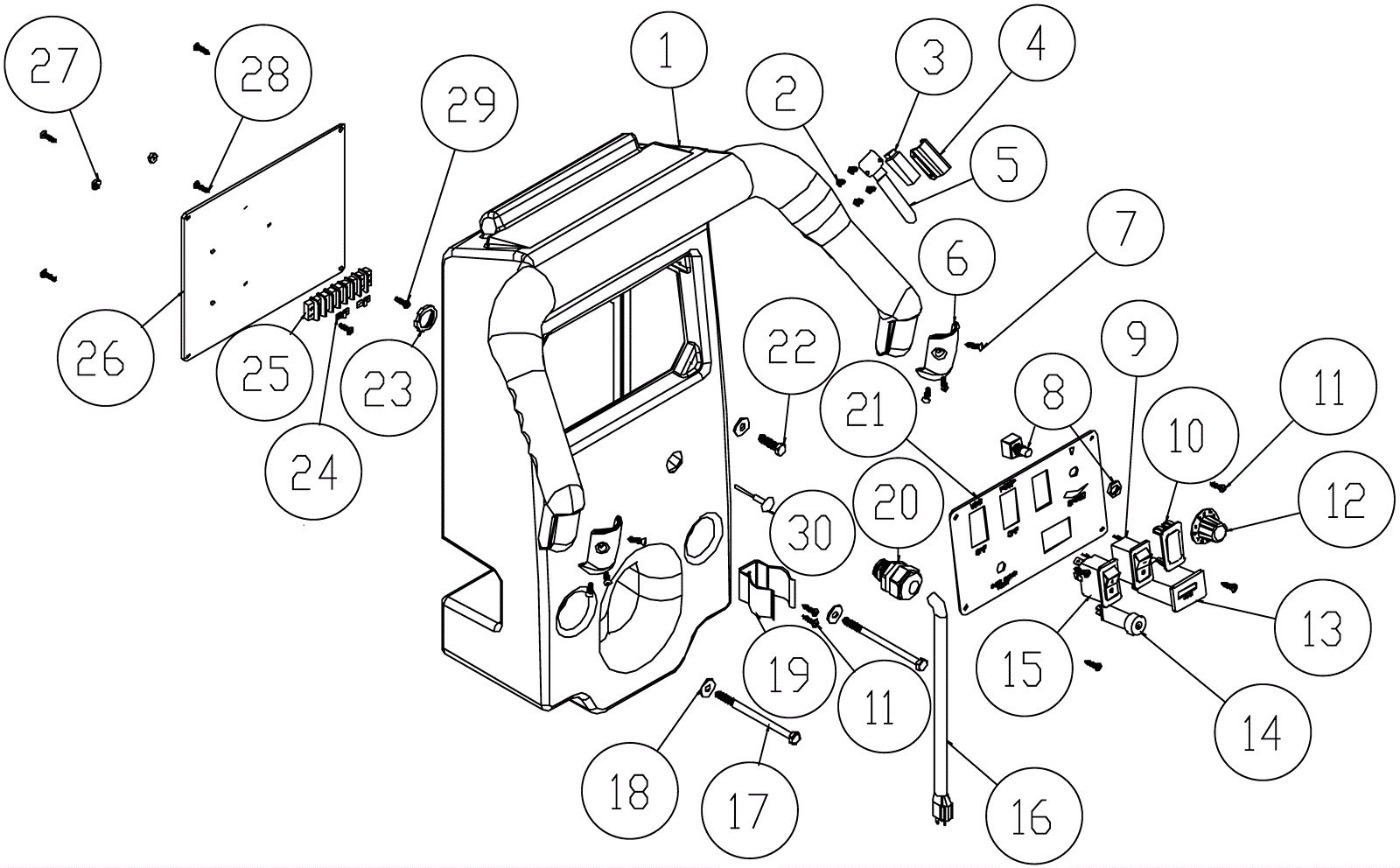

CASCADE 20 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 216-0256 Handle $190.85 1 usually ships 10-27 days
2 999-0680 Screw 6 x 1/2 pan head phillips T-A sheet metal $0.99 4 (Self propelled models only) ships same day
3 216-0062 Micro switch $60.65 1 (Self propelled models only) usually ships 10-27 days
4 216-0063 Switch bracket $25.29 1 (Self propelled models only) usually ships 10-27 days
5 216-0064 Switch handle $57.19 1 (Self propelled models only) usually ships 10-27 days
6 216-0257 Handle glide $12.09 2 usually ships 10-27 days
7 216-0259 Screw $1.30 6 usually ships 10-27 days
8 216-0078 Control motor $527.99 1 (Self propelled models only) usually ships 10-27 days
9 216-0034 Rocker switch 115V $34.09 1 usually ships 10-27 days
10a 216-0117 Switch cover $5.17 1 usually ships 1-5 days
10b 216-0034 Rocker switch 115V $34.09 1 (Ozone model only) usually ships 10-27 days
11 216-0178 Screw #8 x 5/8 pan head phillips $1.30 6 usually ships 10-27 days
12a 216-0260 Speed control knob $13.19 1 (Self propelled models only) usually ships 10-27 days
12b 216-0262 Plug $1.30 1 usually ships 10-27 days
13 216-0118 Hour meter $249.69 1 usually ships 1-5 days
14 216-0116 5amp circuit breaker $43.99 1 usually ships 10-27 days
15a N/A Not available Call for price 1 (Switch) usually ships 3-26 days
15b 216-0034 Rocker switch 115V $34.09 1 (SP model only) usually ships 10-27 days
16 216-0179 12/3 pigtail cord 39 inch $25.29 1 usually ships 10-27 days
17 216-0263 Screw $1.30 2 usually ships 10-27 days
18 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
19 216-0128 Spring clip $7.69 1 usually ships 10-27 days
20 216-0173 Strain relief $6.59 1 usually ships 1-5 days
21 216-0264 Switch panel $42.89 1 usually ships 10-27 days
22 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
23 216-0181 Nut 1/2 lock steel conduit $1.25 1 usually ships 10-27 days
24 216-0265 Jumper tab $1.30 2 usually ships 10-27 days
25 216-0216 Terminal block $19.79 1 usually ships 1-5 days
26 216-0266 Motor control panel $37.39 1 usually ships 10-27 days
27 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
28 216-0114 Screw #8 x 5/8mm pan head $1.30 2 usually ships 1-5 days
29 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
30 216-0183 Converter kit $367.39 1 usually ships 1-5 days
